Vacuum Furnace Induction Melting 2000°C 1-10kg Capacity Jacketed Stainless Steel
[VIF2000] Vacuum Furnace Induction Melting 2000°C 5 kg Capacity Jacketed Stainless Steel, 50KW 380-415V 3-PH 70AMP Induction heater, crucibles , coils, diffusion pumps 4,237cfm and a front 33cfm Oil pump
SKU # :
VIF2000

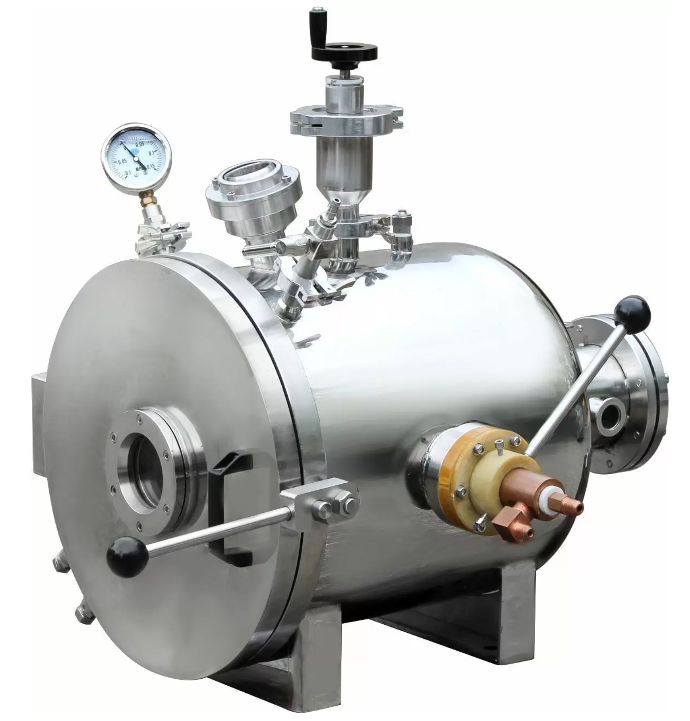

The new Across International VIF2000 stainless steel vacuum induction furnace allows you to melt material in a high vacuum environment.
Induction Heater NOT INCLUDED, to be used in conjunction with an induction heater and chiller. Please contact us for a complete system recommendation based on your needs.
Features
- Compact tabletop design
- Side swing-open door for easy operation
- Multiple KF ports for high vacuum operation
- Jacketed water-cooled chamber keeps surface temperature down
- Swing handle allows pouring of melted material into a casting mold
- Built-in water-cooled door channel protects door sealing gasket
- Built-in material feed port and viewing window
- Gas in-feed capability. Pressure release valve required (not included)
Caution!
- Vacuum pump should be always running during melting operation, pressure should be monitored at all time.
- To eliminate arcing, protective gas and pressure release valve is required if system is pairing with a high frequency induction heater.
Part description | Quantity | Part image |
| VIF2000 Vacuum Induction Furnace | 1 set |
|
