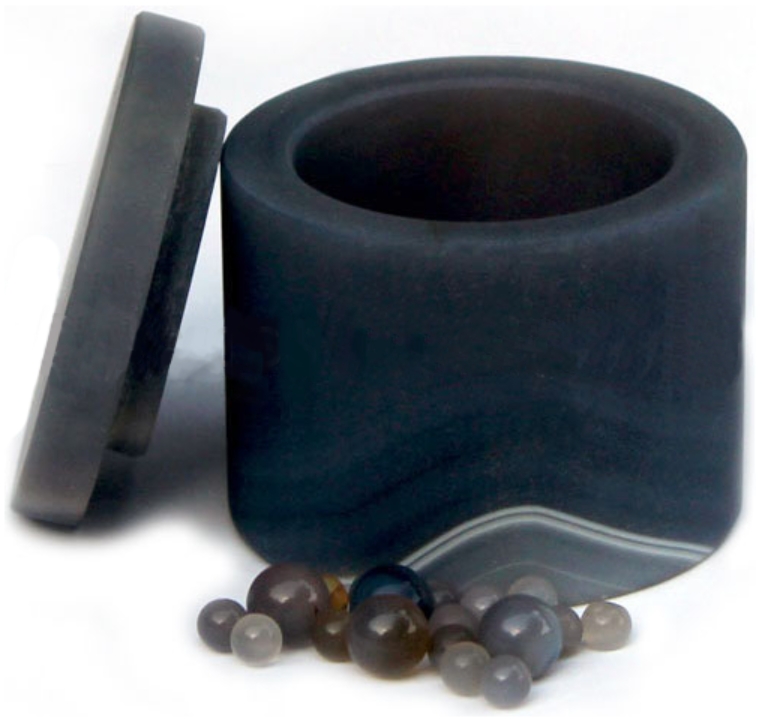

High purity natural Brazilian agate (99.91% SiO2) ball mill jars. Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination. Each jar set includes grinding jar, lid, rubber sealing gasket and mixed agate grinding balls (see detail table below).
NOTE: The balls are NOT included in the jars. You'll need to get a quote for the tungsten carbide grinding balls individually.
Specifications
| Jar size (ml) | 100 | 500 | 1000 |
| Compatible ball mill | PQ-N04 | PQ-N2 | PQ-N4 |
| Outer diameter (OD, mm) | 75 | 115 | 135 |
| Inner diameter (ID, mm) | 54 | 90 | 105 |
| Total height (mm) | 71 | 110 | 140 |
| Depth (mm) | 45 | 82 | 110 |
Ball configuration
100ml | 500ml | 1000ml | ||
Ball size/qty | Ø6mm | 100 | 500 | 1000 |
Ø10mm | 16 | 100 | 200 | |
Ø20mm |
| 2 | 3 | |
