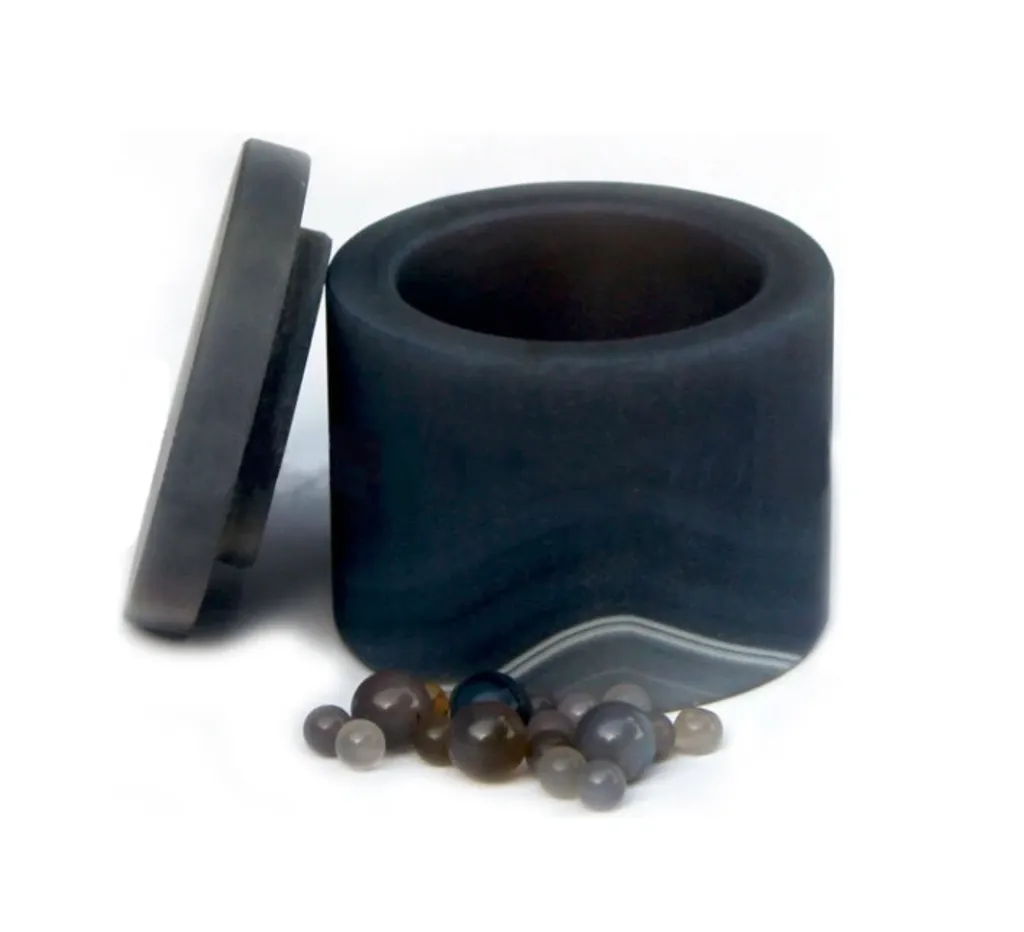

High purity natural Brazilian agate (99.91% SiO2) ball mill jars. Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination. Each jar set includes grinding jar, lid, rubber sealing gasket and mixed agate grinding balls (see detail table below).
Specifications
| Jar size (ml) | 100 | 500 | 1000 |
| Compatible ball mill | PQ-N04 | PQ-N2 | PQ-N4 |
| Outer diameter (OD, mm) | 75 | 115 | 135 |
| Inner diameter (ID, mm) | 54 | 90 | 105 |
| Total height (mm) | 71 | 110 | 140 |
| Depth (mm) | 45 | 82 | 110 |
Ball configuration
| Jar size | 50ml | 100ml | 500ml | 1000ml |
| Ø6mm balls qty (pcs) | 50 | 100 | 500 | 1000 |
| Ø10mm balls qty (pcs) | 8 | 16 | 100 | 200 |
| Ø20mm balls qty (pcs) | 2 | 3 | ||
| Jar size | 2000ml | 3000ml | 4000ml | 5000ml |
| Ø6mm balls qty (pcs) | 2000 | 3000 | 4000 | 5000 |
| Ø10mm balls qty (pcs) | 400 | 600 | 800 | 1000 |
| Ø20mm balls qty (pcs) | 5 | 7 | 10 | 12 |
