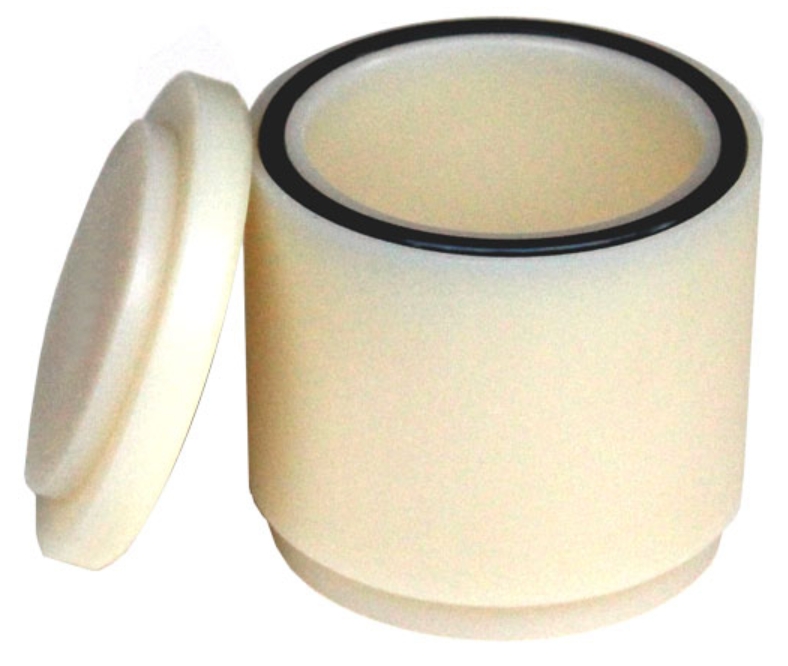

Nylon grinding jars for planetary ball mills. Each jar package includes grinding jar, lid, silicon sealing gasket and different sizes of mixed agate grinding balls, see detail table below.
Specifications
| Jar size | 100 ml | 500 ml | 1000 ml |
| Compatible ball mill | PQ-N04 | PQ-N2 | PQ-N4 |
| Outer diameter (OD) | 69 mm | 107 mm | 135 mm |
| Inner diameter (ID) | 53 mm | 90 mm | 107 mm |
| Total height | 67 mm | 110 mm | 145 mm |
| Depth | 50 mm | 85 mm | 115 mm |
Ball configuration
100ml | 500ml | 1000ml | ||
Ball size/qty | Ø6mm | 100 | 500 | 1000 |
Ø10mm | 16 | 100 | 200 | |
Ø20mm |
| 2 | 3 | |
