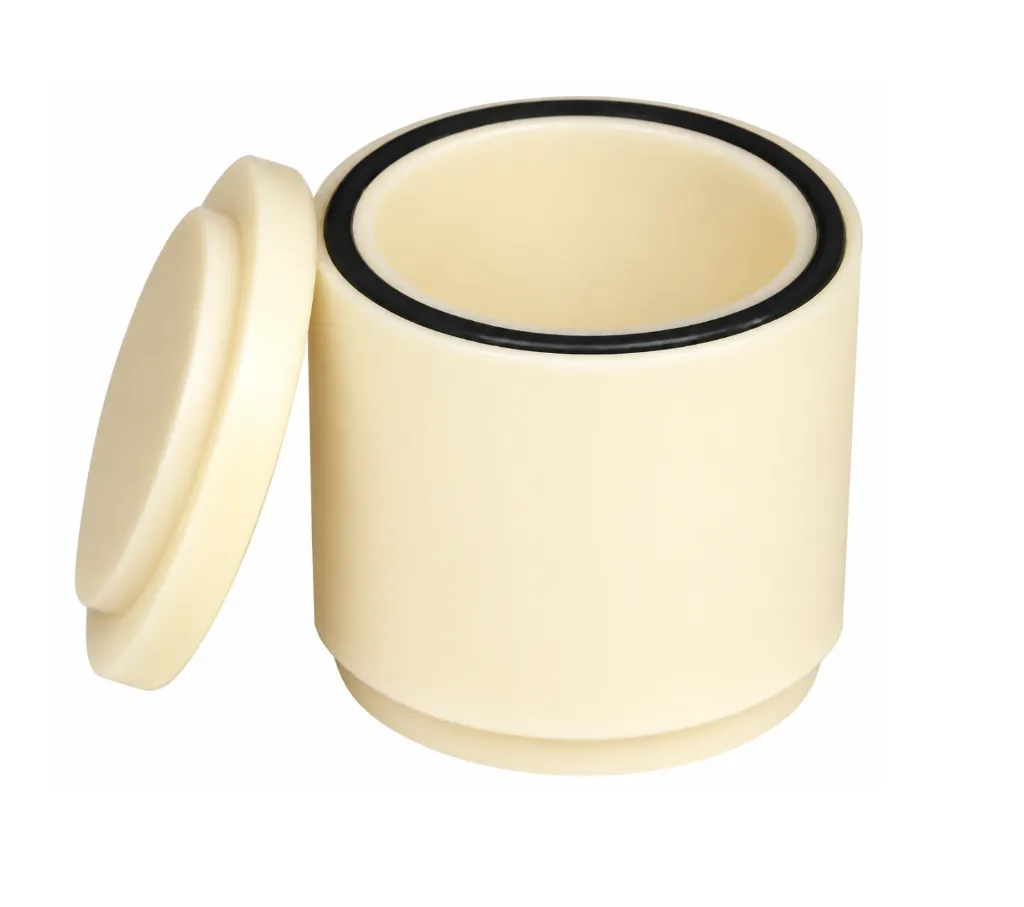

Nylon grinding jars for planetary ball mills. Each jar package includes grinding jar, lid, silicon sealing gasket and different sizes of mixed agate grinding balls, see detail table below.
Specifications
| Jar size | 100 ml | 500 ml | 1000 ml |
| Compatible ball mill | PQN04 | PQN2 | PQN4 |
| Outer diameter (OD) | 69 mm | 107 mm | 135 mm |
| Inner diameter (ID) | 53 mm | 90 mm | 107 mm |
| Total height | 67 mm | 110 mm | 145 mm |
| Depth | 50 mm | 85 mm | 115 mm |
Ball configuration
| Jar size | 50ml | 100ml | 500ml | 1000ml |
| Ø6mm balls qty (pcs) | 50 | 100 | 500 | 1000 |
| Ø10mm balls qty (pcs) | 8 | 16 | 100 | 200 |
| Ø20mm balls qty (pcs) | 2 | 3 | ||
| Jar size | 2000ml | 3000ml | 4000ml | 5000ml |
| Ø6mm balls qty (pcs) | 2000 | 3000 | 4000 | 5000 |
| Ø10mm balls qty (pcs) | 400 | 600 | 800 | 1000 |
| Ø20mm balls qty (pcs) | 5 | 7 | 10 | 12 |
