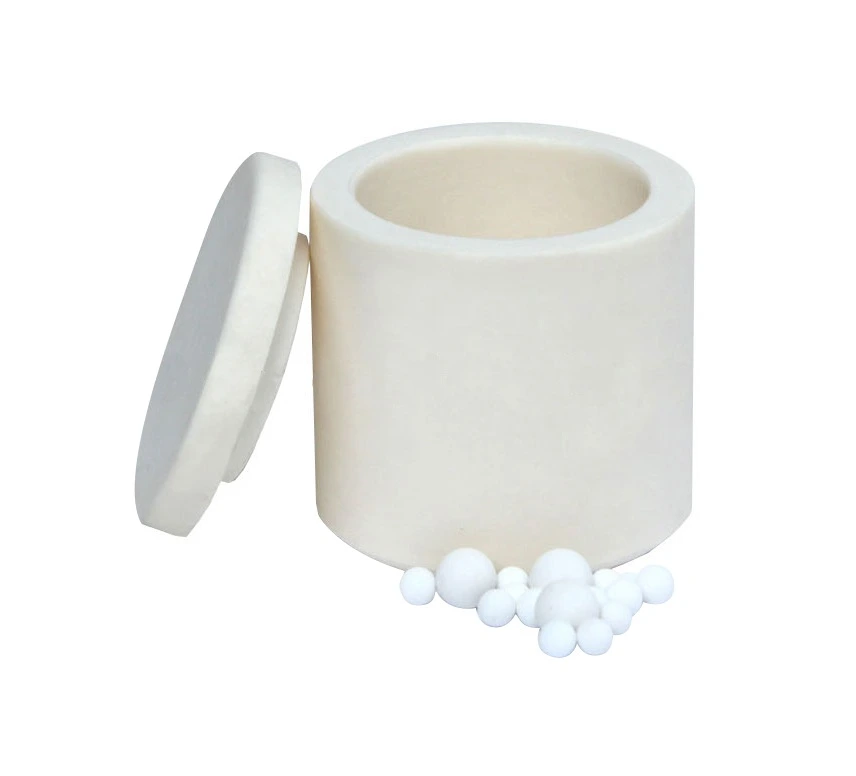

Polished alumina ceramic jars. These jars are used whenever small quantity of samples needed to be grinded. Each jar set includes grinding jar, lid, rubber sealing gasket and different sizes of mixed alumina ceramic grinding balls (see detail table below).
Specifications
| Jar size | 100 ml | 500 ml | 1000 ml |
| Compatible ball mill | PQN04 | PQN2 | PQN4 |
| Outer diameter (OD) | 68 mm | 107 mm | 131 mm |
| Inner diameter (ID) | 52 mm | 87 mm | 115 mm |
| Total height | 70 mm | 110 mm | 127 mm |
| Depth | 52 mm | 85 mm | 107 mm |
| Weight | 0.6 kg | 1.8 kg | 2.7 kg |
| Al2O3 content | > 97% |
| Density | 3.65 g/cm3 |
| Hardness | 9 mohs |
Ball configuration
| Jar size | 50ml | 100ml | 500ml | 1000ml |
| Ø6mm balls qty (pcs) | 50 | 100 | 500 | 1000 |
| Ø10mm balls qty (pcs) | 8 | 16 | 100 | 200 |
| Ø20mm balls qty (pcs) | 2 | 3 | ||
| Jar size | 2000ml | 3000ml | 4000ml | 5000ml |
| Ø6mm balls qty (pcs) | 2000 | 3000 | 4000 | 5000 |
| Ø10mm balls qty (pcs) | 400 | 600 | 800 | 1000 |
| Ø20mm balls qty (pcs) | 5 | 7 | 10 | 12 |
