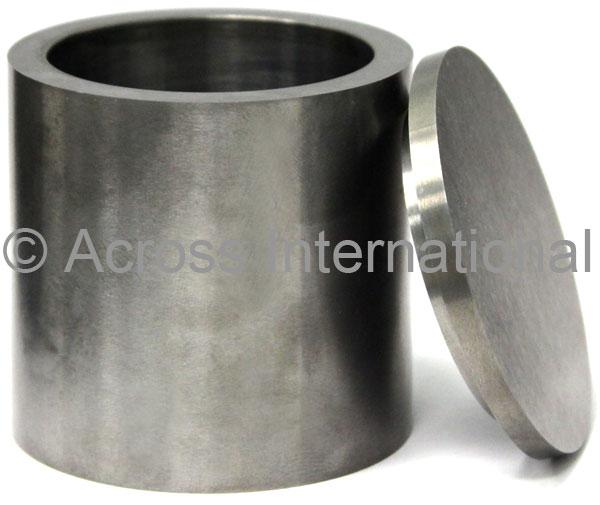

Highly polished tungsten carbide grinding jar set. Each jar set includes grinding jar, lid, rubber sealing gasket, and different sizes of tungsten carbide grinding balls (see detail table below).
NOTE: The balls are NOT included in these jars. You'll need to get a quote for the tungsten carbide grinding balls individually.
Specifications
| Grade | YG8 |
| WC (wt%) | 92% |
| CO (wt%) | 8% |
| Hardness | 88.5 HRA |
| Density | > 14.4 g/cm3 |
| Bending strength | 2400 TRS N/mm2 |
| Particle | 2 um |
Dimensions
| Jar size (ml) | 100 | 500 | 1000 |
| Outer diameter (OD, mm) | 63 | 105 | 130 |
| Inner diameter (ID, mm) | 50 | 90 | 115 |
| Total height (mm) | 63 | 106 | 135 |
| Depth (mm) | 50 | 89 | 115 |
| Weight (KG) | 1.6 | 5.7 | 9.3 |
Ball configuration
100ml | 500ml | 1000ml | ||
Ball size/qty | Ø6mm | 100 | 500 | 1000 |
Ø10mm | 16 | 100 | 200 | |
Ø20mm |
| 2 | 3 | |
