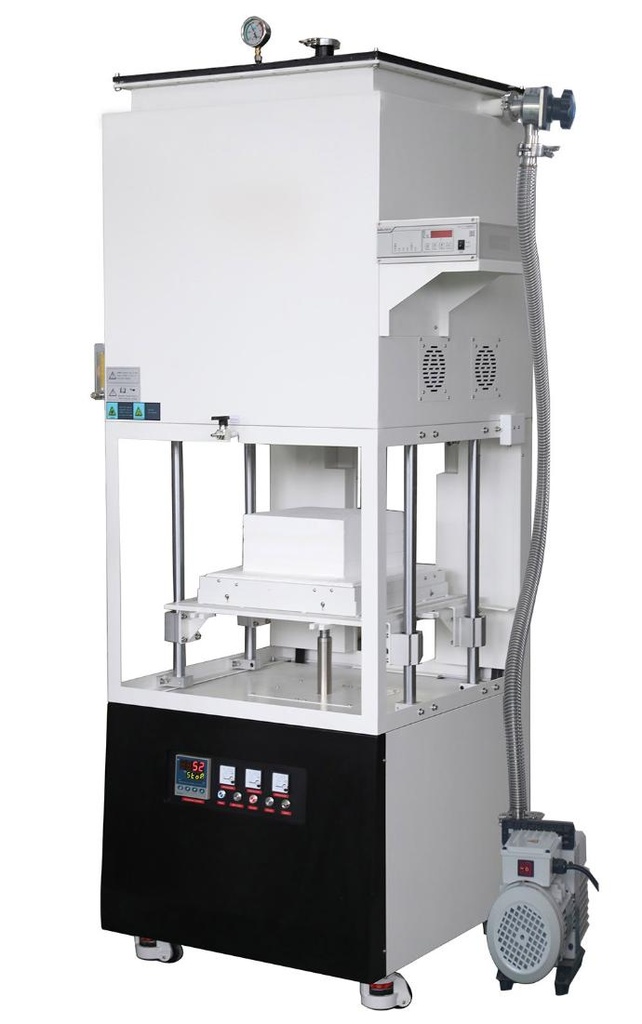

This VEGCF1200-1700 27 liter (300x300x300mm) muffle furnace is imbued with the highest quality parts, to ensure superior results after each use. It’s heating elements are made of Swedish Kanthal spiral wire coils for 1200°C furnace, silicon carbide (SiC) for 1400°C furnace, and molybdenum silicide (MoSi2) for 1700°C furnaces, embedded in Mitsubishi 1500-1800 alumina fiber insulation. This is all enclosed in a dual-wall, steel housing which traps heat in, avoiding heat loss to the exterior. As for control, a Eurotherm 3204 40-segment digital controller precisely controls all operations.
It has a built-in RS485 digital communications port and USB adaptor. This allows for remote control and monitoring directly from your PC. It’ll also let you save or export your results. A self-tuning PID control unit provides optimal thermal processing, while minimizing overshoot. A built-in ammeter and dual voltmeters offer easy monitoring, while a type B thermocouple ensures the unit is long-lived. Safety features include overheat and power failure protection. This and each one of our furnaces comes CE compliant.
Features
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Built-in computer interface.
Long life type B thermocouple.
A Stirrer with motor is optional to be added on the top of the chamber
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
Limit switch: When the lift rod reaches the highest or lowest point, the limit switch will power off the lift rod automatically, preventing over-rise or over-lower.
Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Specifications
Model
1200°C
1400°C
1700°C
Electrical requirements
AC 380-415V 3-PH 50hz 7 KW 10AMP
AC 380-415V 3-PH 50hz 13 KW 38AMP
AC 380-415V 3-PH 50hz 13 KW 18AMP
Chamber dimensions (DxWxH)
300 x 300 x 300 mm
300 x 300 x 300 mm
300 x 300 x 300 mm
Thermocouple type
K
S
B
Min. working temperature
Ambient
Ambient
Ambient
Max. working temperature
1200°C
1400°C
1700°C
Max. constant working temperature
1100°C
1300°C
1600°C
Refractory lining
Mitsubishi (Japan) high quality grade 1500 morgan polycrystalline alumina fiber
Mitsubishi (Japan) high quality grade 1600 morgan polycrystalline alumina fiber
Mitsubishi (Japan) high quality grade 1800 morgan polycrystalline alumina fiber
Heating element
Kanthal (Sweden) resistance coil wire
Silicon carbide (SiC)
Molybdenum Silicide (MoSi2)
Temperature controller
Eurotherm 3204 5 on-board process recipes
(48 parameters per recipe)
Eurotherm 3204 5 on-board process recipes
(48 parameters per recipe)
Eurotherm 3204 5 on-board process recipes
(48 parameters per recipe)
Max heating rate
15°C / min
15°C / min
15°C / min
Temperature accuracy
+/- 1°C
+/- 1°C
+/- 1°C
Unit dimensions (DxWxH)
900 x 900 x 2200 mm
900 x 900 x 2200 mm
900 x 900 x 2200 mm
Shipping dimensions (DxWxH)
1100 x 1100 x 2500 mm
1100 x 1100 x 2500 mm
1100 x 1100 x 2500 mm
Unit weight
310 KG
320 KG
320 KG
Shipping weight
370 KG
380 KG
380 KG
