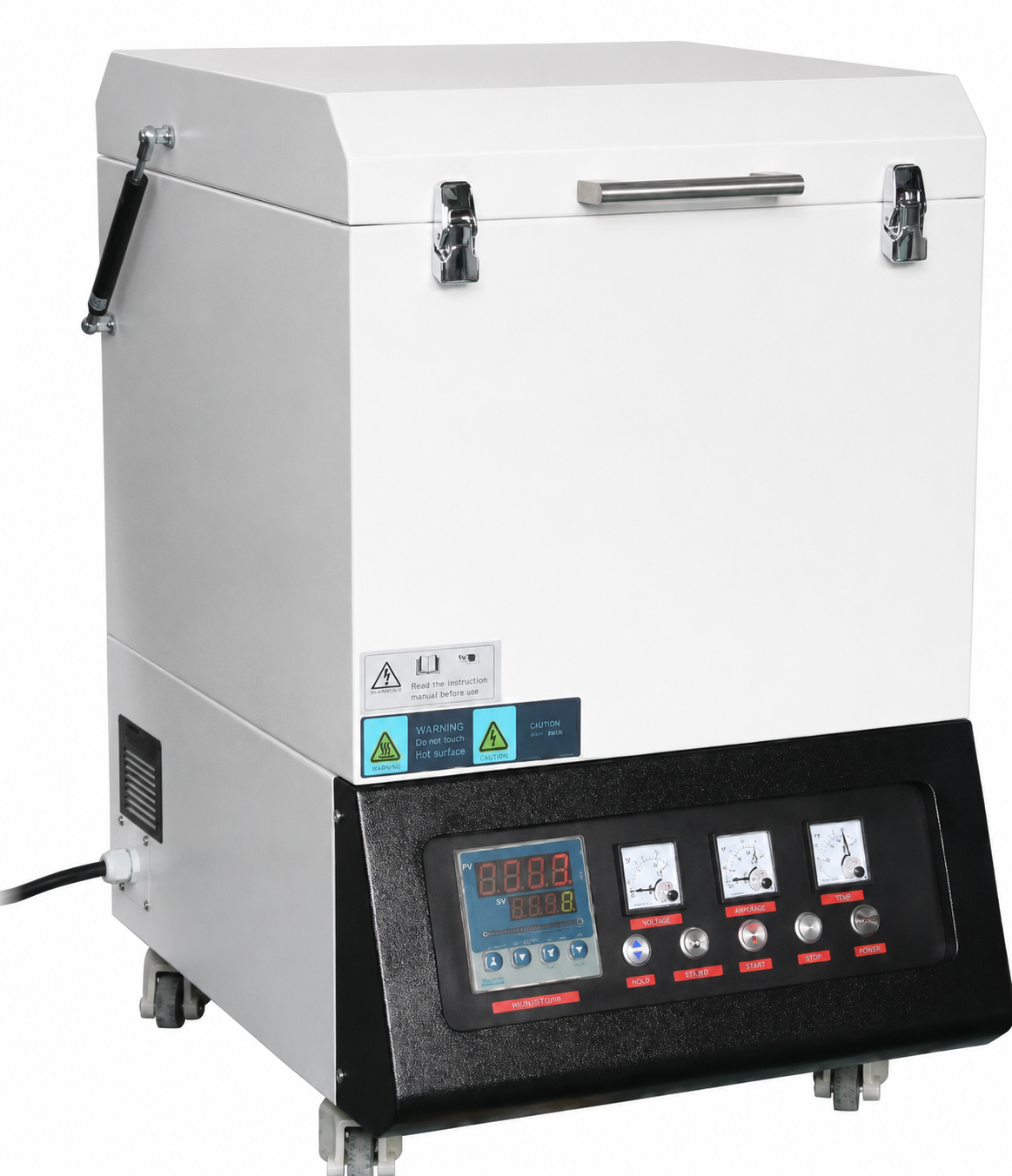

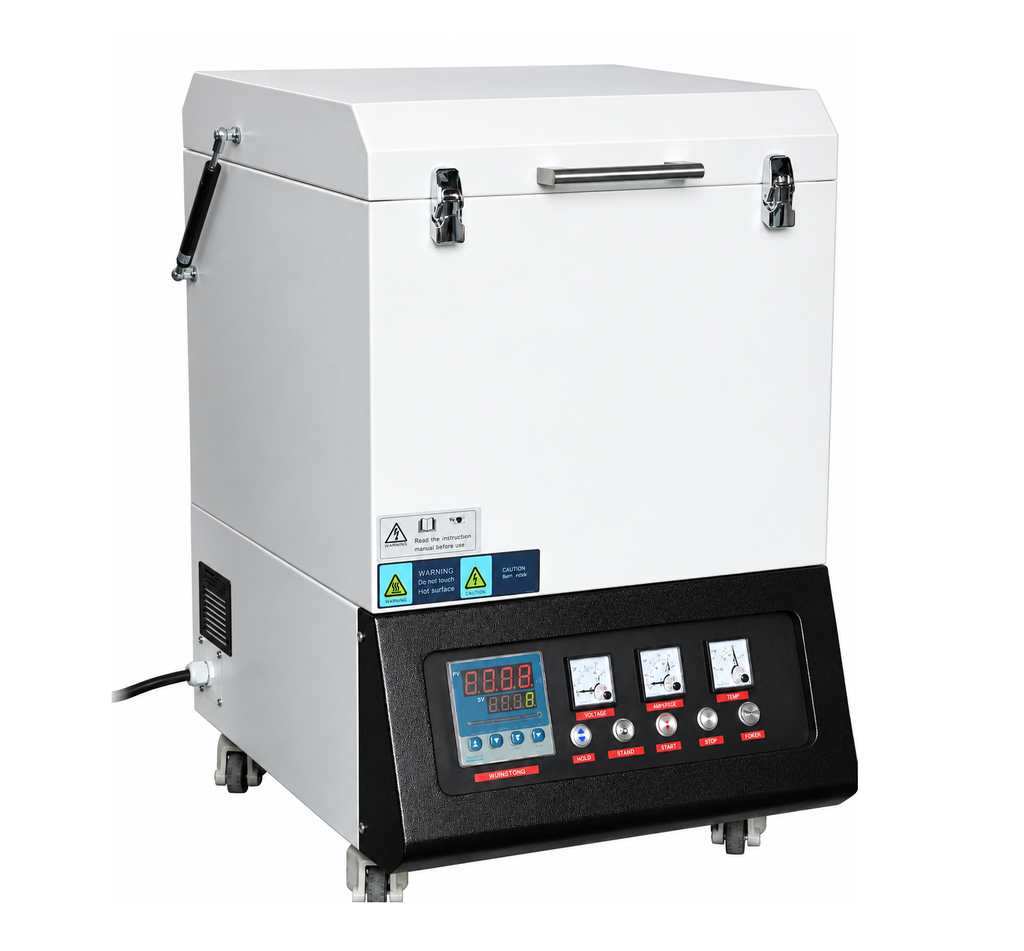

TCF1200 Series Top-Opening 1200°C Muffle Furnace

The TCF1200 Series Top-Opening Muffle Furnace is a high-performance laboratory furnace featuring a convenient top-opening chamber design, precise programmable temperature control and excellent temperature uniformity.

With a maximum temperature of 1200°C and a recommended continuous working temperature of up to 1100°C, the series is available in 9 L, 28 L and 95 L chamber capacities to accommodate a wide range of laboratory and industrial heat-treatment applications.

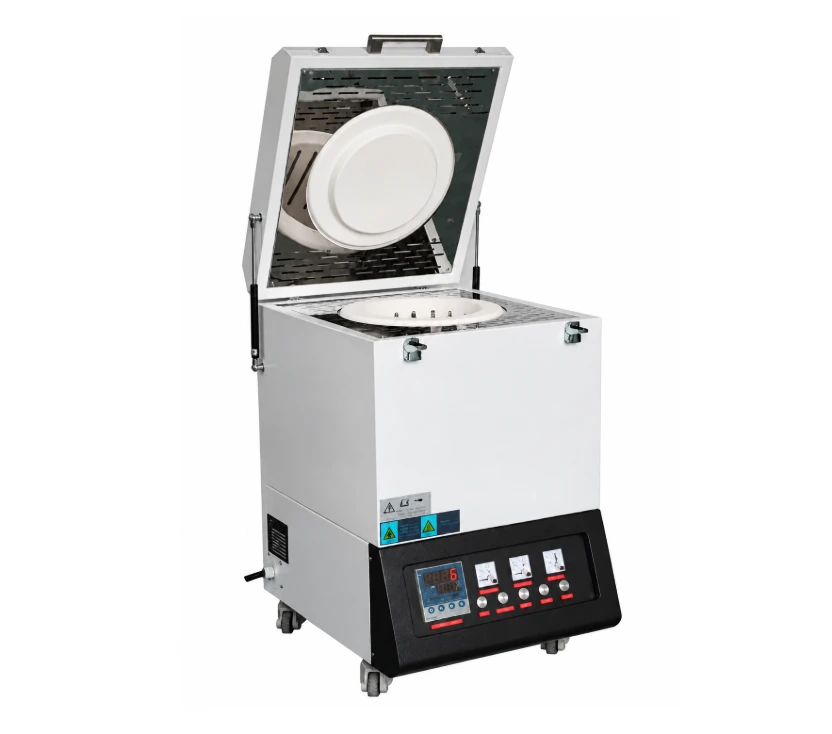

Unlike conventional front-opening furnaces, the TCF1200 features a top-opening furnace door, allowing samples, crucibles and other materials to be loaded and unloaded vertically from above. This configuration is particularly advantageous when handling larger, heavier or delicate samples.

Top-Opening Design – Easier and Safer Sample Handling

The top-opening chamber is one of the key features of the TCF1200 series.

Convenient Vertical Loading

Samples can be lowered directly into the furnace chamber from above, eliminating the need to reach horizontally into a deep chamber. This is especially convenient for:

• Large crucibles

• Tall samples

• Heavy samples

• Ceramic components

• Powder-filled containers

• Samples that need to remain upright during loading and unloading

Reduced Risk of Sample Spillage

Vertical loading helps keep crucibles and containers upright during handling. This can reduce the risk of powders, granules or other sample materials spilling while being placed into the furnace.

Easier Access to Deep Chambers

For larger-capacity furnaces, particularly models with deeper chambers, a conventional front-opening design can make it difficult to access the rear of the chamber.

The top-opening configuration provides direct access from above, making sample positioning and removal more convenient.

Suitable for Large and Heavy Samples

The vertical loading arrangement allows larger samples to be carefully lowered into position rather than pushed horizontally into the chamber, providing better control during loading.

Improved Operator Protection

When opening a conventional front-opening furnace at elevated temperatures, radiant heat can be directed toward the operator standing in front of the furnace.

With a top-opening configuration, the operator does not need to stand directly in front of the chamber opening during sample access. Appropriate high-temperature PPE and safe operating procedures must still be used whenever handling a hot furnace or hot samples.

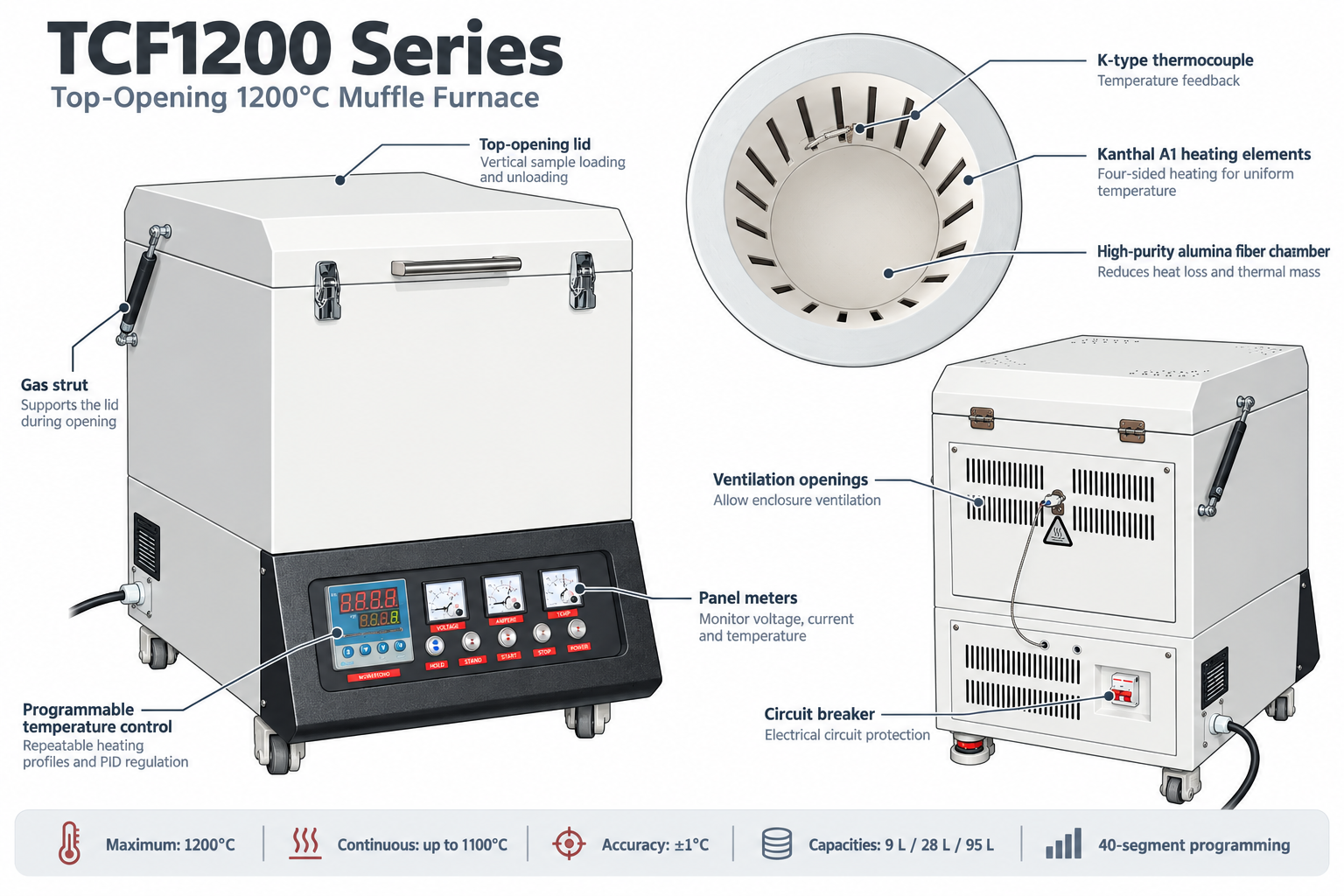

Key Features

• Top-opening furnace chamber

• Convenient vertical sample loading and unloading

• Ideal for large, tall, heavy or delicate samples

• Helps reduce accidental sample spillage during loading

• Maximum temperature: 1200°C

• Recommended working temperature: 1100°C

• Temperature control accuracy: ±1°C

• Four-sided heating for excellent temperature uniformity

• EUROTHERM 3204 programmable temperature controller

• 40-segment programmable temperature control

• Intelligent PID temperature regulation

• Swedish Kanthal A1 resistance heating elements

• Vacuum-formed high-purity alumina polycrystalline fiber chamber

• K-type thermocouple

• Maximum heating rate: ≤30°C/min

• Recommended heating rate: ≤15°C/min

• RS485 communication interface

• Computer monitoring and data logging capability

• Over-temperature and thermocouple failure protection

• Door safety interlock

• Over-current and electrical leakage protection

Four-Sided Heating for Excellent Temperature Uniformity

Heating elements are arranged around four sides of the furnace chamber, helping provide balanced heat distribution throughout the working area.

Combined with the high-purity alumina fiber insulation and optimized heating-element arrangement, the four-sided heating configuration provides excellent temperature uniformity and efficient thermal performance.

EUROTHERM 3204 Programmable Control

The TCF1200 series is equipped with an EUROTHERM 3204 programmable temperature controller, providing accurate and repeatable control of complex heating processes.

The controller provides 40-segment programmable temperature profiles, intelligent PID regulation, temperature auto-tuning, over-temperature protection and thermocouple failure protection.

An RS485 communication interface allows connection to a computer for process monitoring and data management. Furnace PV and SV temperatures can be monitored, actual heating curves can be displayed in real time, and temperature data can be recorded for subsequent analysis.

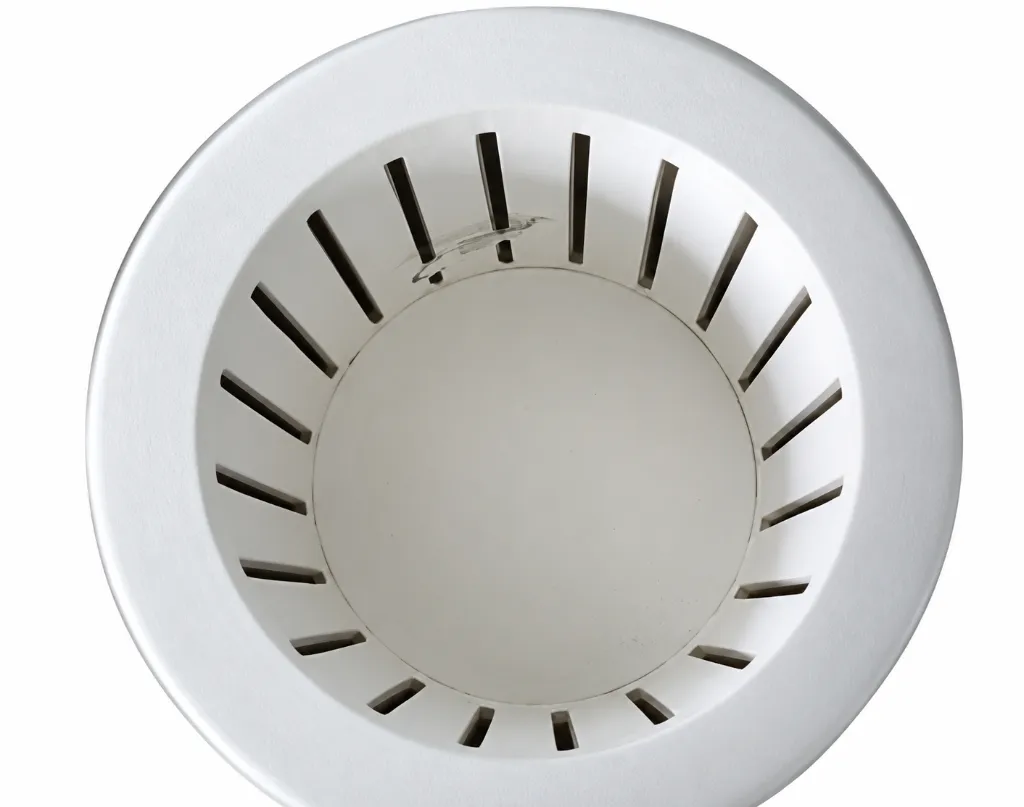

High-Purity Alumina Fiber Chamber

The furnace chamber is constructed from vacuum-formed high-purity alumina polycrystalline fiber, providing:

• Low thermal mass

• Low thermal conductivity

• Excellent thermal insulation

• Reduced heat loss

• High heat reflectivity

• Good temperature uniformity

• Excellent resistance to repeated heating and cooling

• Smooth chamber surfaces with reduced powder shedding

Applications

The TCF1200 Top-Opening Muffle Furnace is suitable for:

• Heat treatment

• Sintering

• Calcination

• Ashing

• Annealing

• Ceramic processing

• Materials research

• Powder processing

• Crucible heating

• Sample preparation

• Laboratory and industrial thermal processing

The combination of a top-opening chamber, vertical sample access, four-sided heating and EUROTHERM programmable temperature control makes the TCF1200 series particularly suitable for applications where convenient handling of large or delicate samples and precise thermal processing are required.
