BLF1700 series desktop bottom loading furnaces feature Molybdenum Silicide (MoSi2) Type 1800 heating elements with Mitsubishi (Japan) 1800 grade alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.
Features
Motorized bottom elevator hearth
Eurotherm with multi-segment PID control provides optimum thermal process with minimal overshooting.
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Built-in computer interface.
Optional stirring fuction
Safety
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

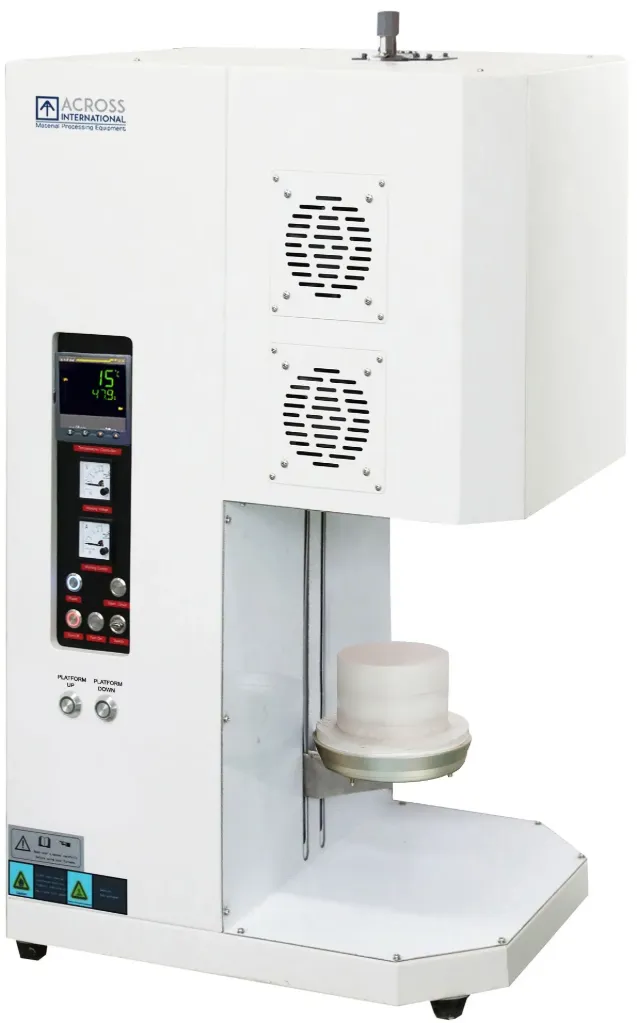

BLF with Optional Overhead Stirring System
Model
BLF1700
Electrical requirements
220-240VAC, 50/60Hz, single phase
Min. working temperature
Ambient
Max. working temperature
1700°C
Max. constant working temperature
1600°C
Refractory lining
Mitsubishi (Japan) high quality 1600 grade fiber alumina
Heating element type
Molybdenum Silicide (MoSi2) Type 1800
Thermocouple type
B
Temperature controller
Eurotherm 3204 Controller (UK) 5 Programs – Each program has 8 segments
Max heating rate
< 30°C / min
Recommended heating rate
15°C / min
Furnace housing temperature
< 45°C
Bottom elevator hearth
Motorized
Warranty
1 year
Size comparison
Chamber size (diameter x height)
Φ150 x 200 mm
Φ200 x 200 mm
Chamber capacity
3.5 L
6.3 L
Power
5 kW
7 kW
Dimensions
700 x 800 x 1190 mm
750 x 850 x 1190 mm
Part description
Quantity
Part image
1700C max bottom loading furnace
1 pc
Thermocouple - type B
1 pc
Thermal gloves
1 pair
Eurotherm USB software
1 pc
User's manual
2 pc
