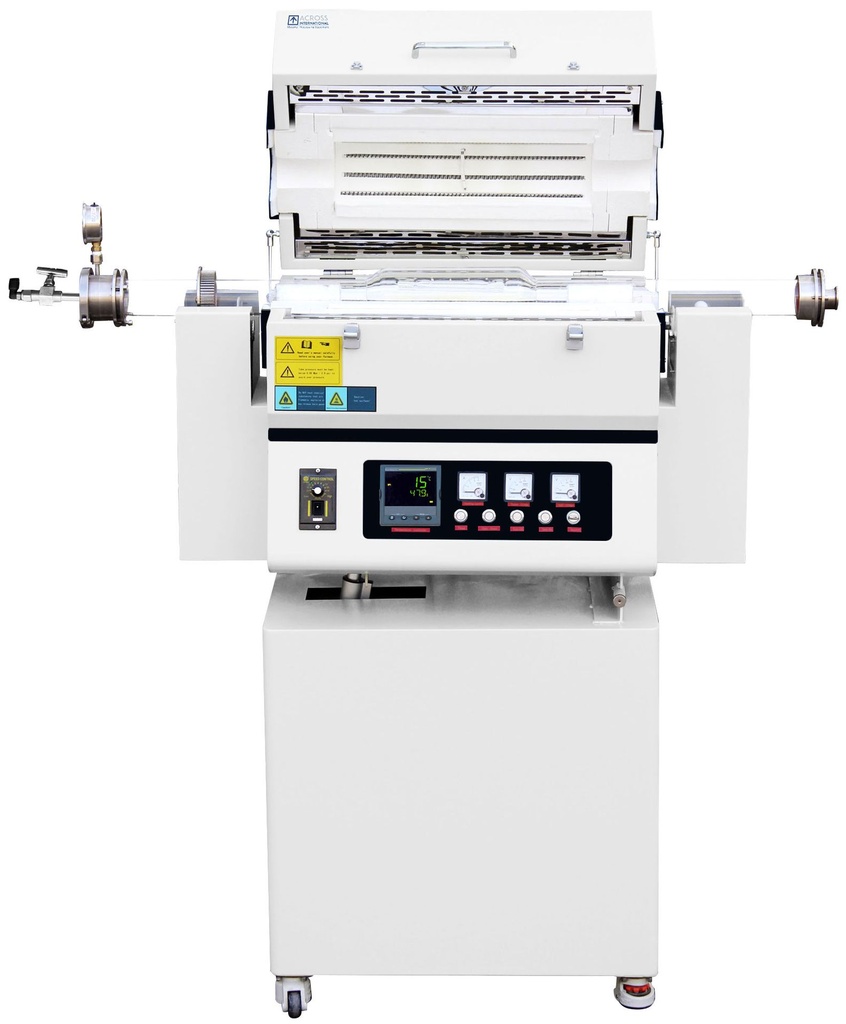

This RTF1200 series rotating split tube furnace is made of topshelf components, to take your application to the next level. It’s got Sweden’s famous Kanthal spiral wire coils. These are embedded in Mitsubishi grade 1500 alumina fiber insulation. All of this is encased in a double-walled, steel internal housing, in order to minimize heat loss to the surface. A Eurotherm 5x8-segment digital controller offers precise temperature control, within +/- 1°C of your target. The furnace has a built-in RS485 digital communications port and a USB adaptor. This allows for control and monitoring straight from a PC, as well as to save or export test results.
The furnace’s split tube design allows for easy access. It’s portable, compact, and lightweight. Self-tuning PID control allows you to optimize the thermal process going on, with minimal to no overshoot. This furnace is so advanced, multiple atmosphere processes can take place in a single cycle. Built-in ammeter and dual voltmeters offer easy monitoring and troubleshooting, while its type K thermocouple ensures its longevity. Safety features include overheat and power failure protection. This and all of our furnaces come CE compliant.
Compact, portable and lightweight design.
Split furnace chamber for fast and easy tube access.
Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Built-in computer interface.
Long life type K thermocouple.
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
220-240VAC, 50/60 Hz, Single phase
1 to 20 rpm
0 - 30°
Maximum working temperature
Maximum constant working temperature
Constant working temperature under vacuum
Minimum working temperature
Rated vacuum pressure
0.001 Pa / 0.0075 millitorr / 0.00001 mbar
Rated positive pressure
20 kPa / 150 torr / 3 psi
Heating element type
Kanthal (Sweden) resistance coil wire
Mitsubishi (Japan) high quality 1500 grade fiber alumina
Eurotherm 3204 temerature/process controller with 5 programs and 8 segments/program
Maximum heating & cooling rate
< 30°C / min
Heating zone length
Zone1: 300 mm Zone2: 300 mm
Constant temperature zone length
Zone1: 200 mm Zone2: 200 mm
Temperature controller precision
Vacuum sealing flange kit
Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks.
1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)
500 ml / minute
Tube size (OD x length)
60mm x 1.2m (Inner tummy: 120mm)
120mm x 1.4m (Inner tummy: 200mm)
240V 1-PH 15A
240V 1-PH 17A
Furnace dimensions (LxWxH)
Shipping dimensions (LxWxH)
Shipping weight (kg)
