250°C 240L / 440L / 640L Large-Capacity Floor-standing Digital Forced Air Convection Oven

Ai Large-Capacity Floor-standing Laboratory Oven Forced Air Laboratory Ovens — 240 L, 440 L & 640 L

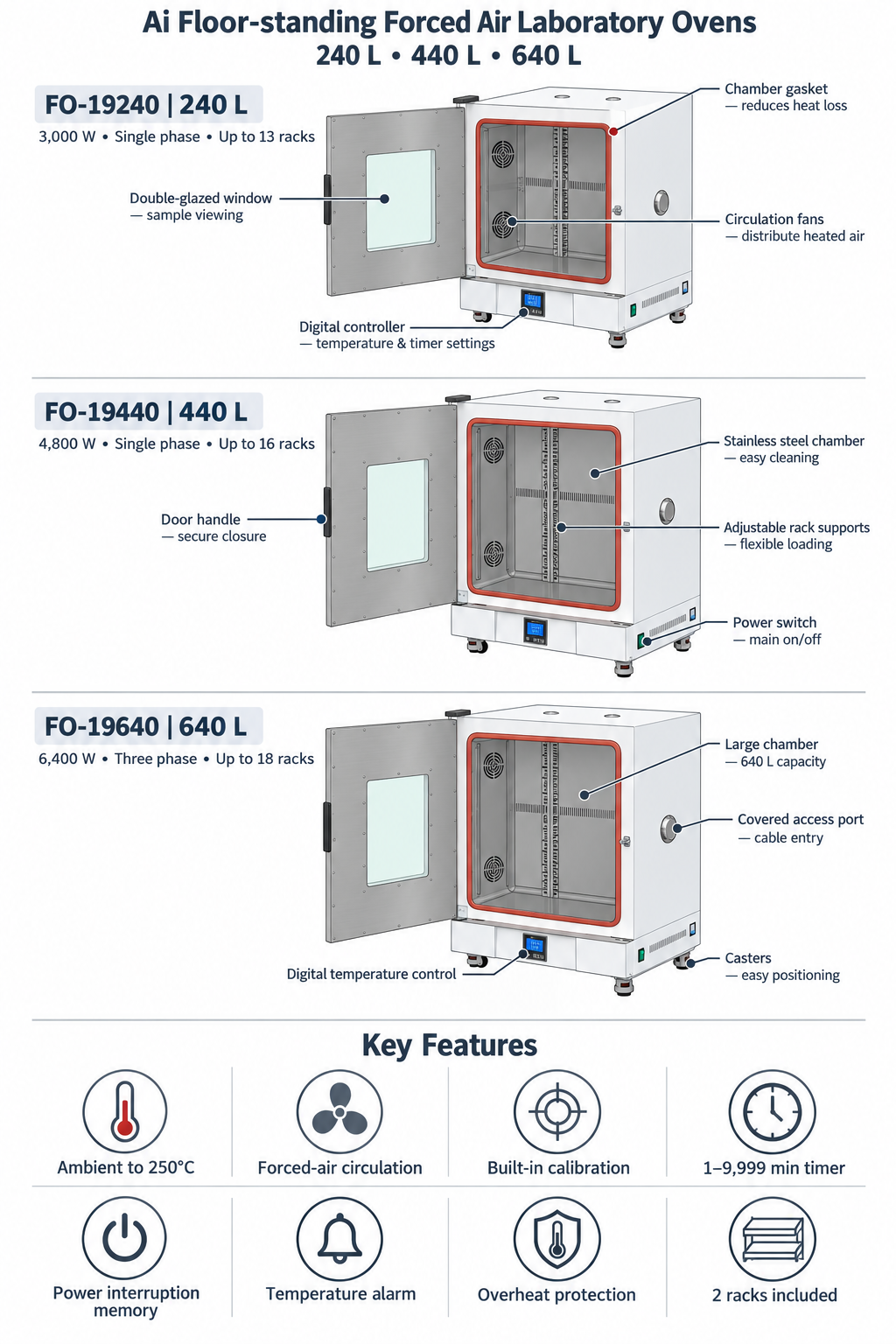

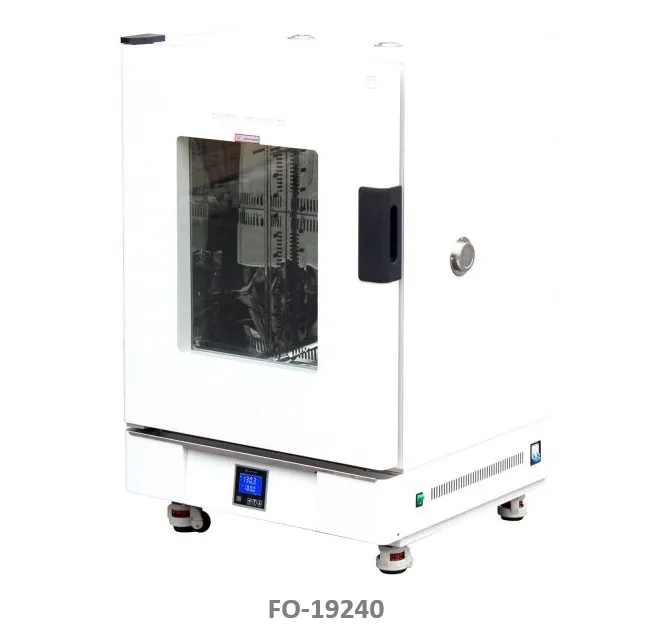

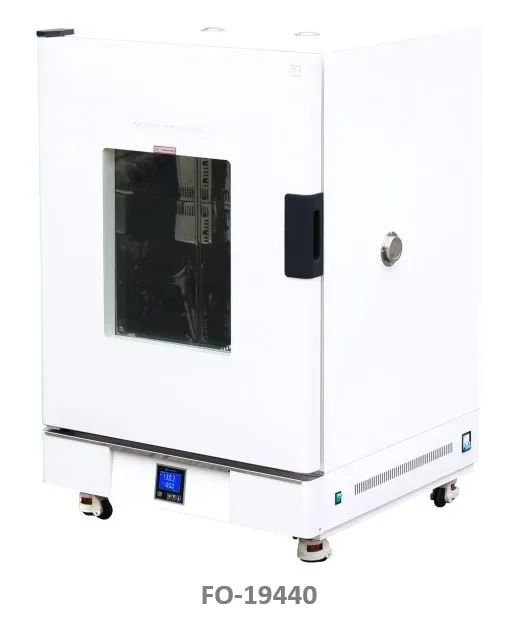

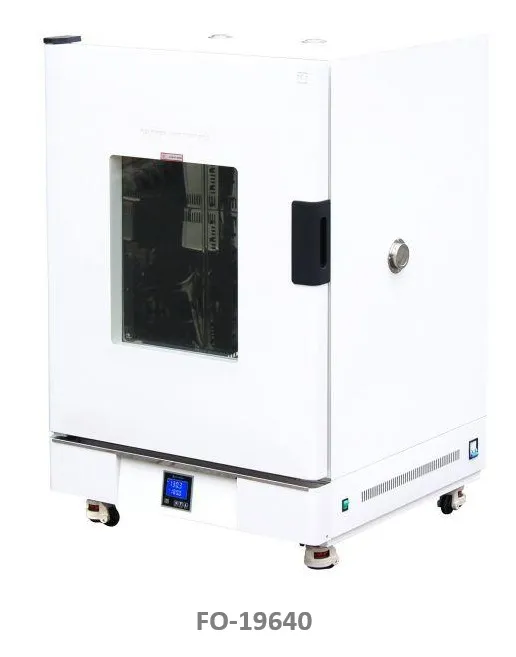

Across International’s Ai large-capacity forced air laboratory ovens are available in three sizes: FO-19240 (240 L), FO-19440 (440 L) and FO-19640 (640 L). Combining forced-air circulation with microcontroller-based digital temperature control, the series provides controlled heating from ambient temperature to 250°C for laboratory drying and thermal processing applications.

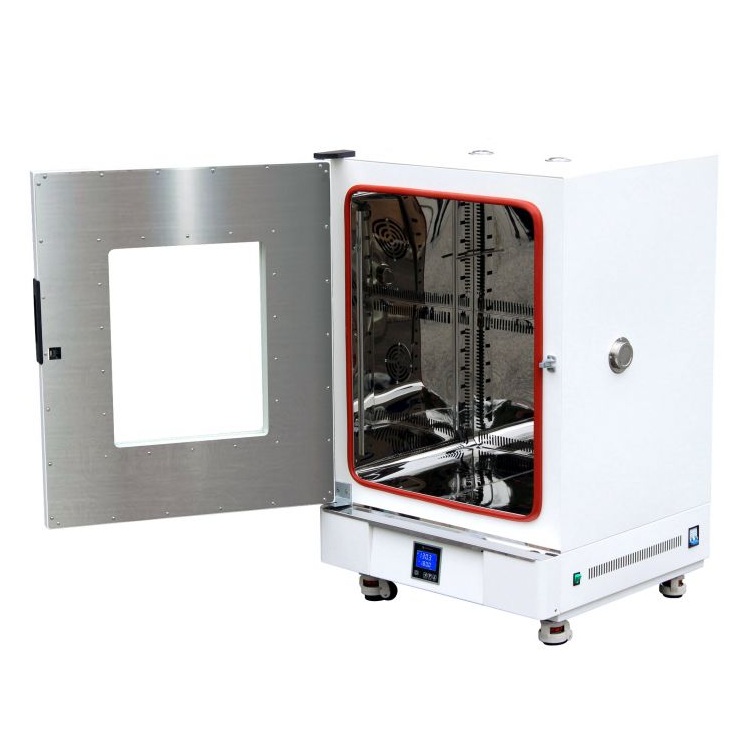

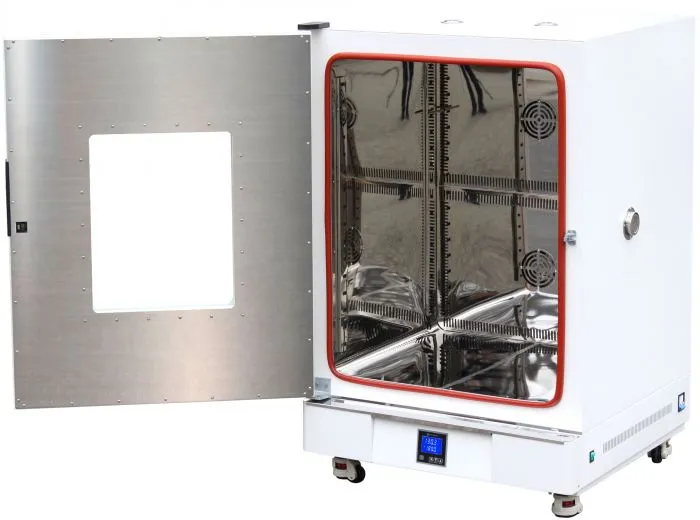

The circulation system directs a gentle downward airflow along the chamber walls, promoting consistent temperatures while minimising disturbance to sample materials. A corrosion-resistant stainless steel chamber and toughened double-glazed observation window provide durability, easy cleaning and convenient sample viewing.

All three models feature built-in temperature calibration, an adjustable temperature alarm and a 1–9,999-minute timer. The memory function retains settings during a power interruption and resumes the previous operation when power returns. Automatic protection cuts heating power if the temperature exceeds the safety limit or the temperature sensor fails.

Each oven includes two racks, with maximum rack capacities of 13, 16 or 18, depending on the model. The FO-19640 also features two adjustable moisture escape ports and a covered access port.

The FO-19640 requires a three-phase electrical supply. The FO-19240 and FO-19440 operate on single-phase power.

Key Features

• Three chamber capacities: Choose 240 L, 440 L or 640 L to suit different batch sizes.

• Forced-air circulation: Distributes heated air throughout the chamber for consistent processing conditions.

• Digital temperature control: Microcontroller-based control with built-in temperature calibration.

• Gentle airflow: Downward circulation along the chamber walls helps minimise sample disturbance.

• Power interruption memory: Retains settings and resumes the previous operation after power is restored.

• Adjustable temperature alarm: Alerts the operator when the temperature moves outside the selected range.

• Automatic safety protection: Cuts heating power in the event of excessive temperature or sensor failure.

• Stainless steel interior: Corrosion-resistant chamber for durability and easy maintenance.

• Double-glazed observation window: Enables sample viewing without opening the door.

• Adjustable timer: Set processing periods from 1 to 9,999 minutes.

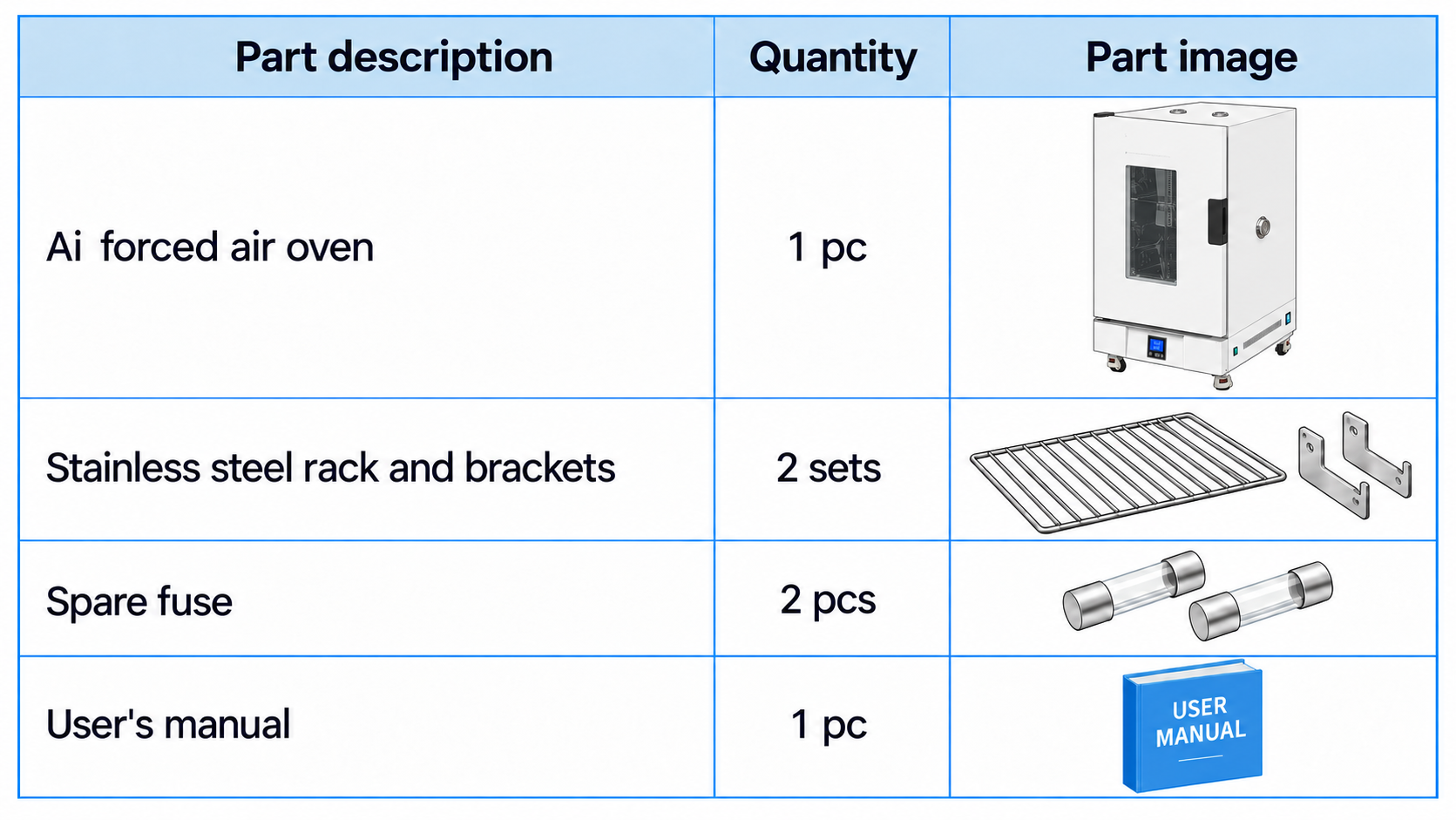

• Flexible rack capacity: Two racks included; additional racks are available at extra cost.

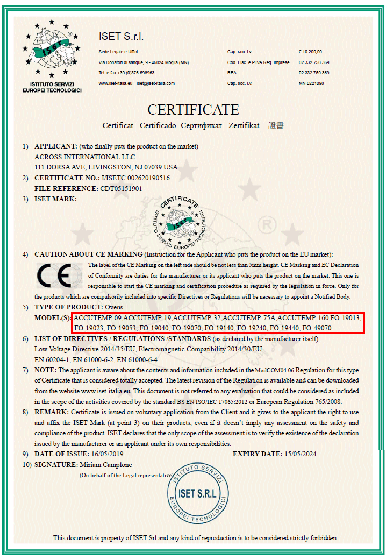

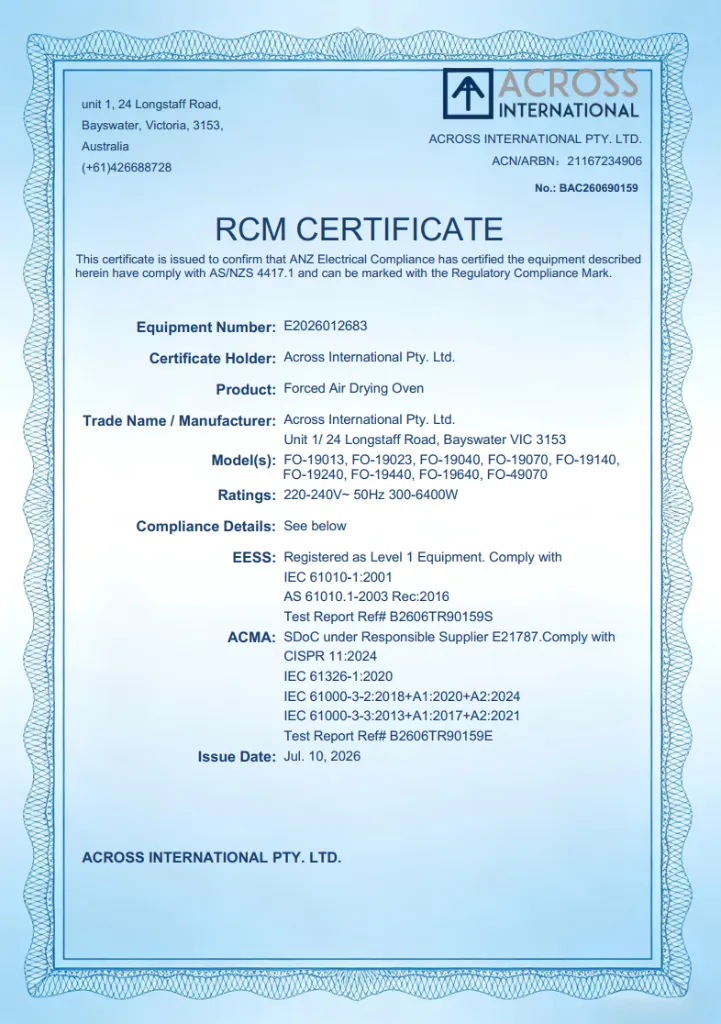

• RCM & CE compliant, with a one-year warranty.
