Ai AccuTemp AT-X Vacuum Ovens — 90 L, 140 L, 210 L & 450 L

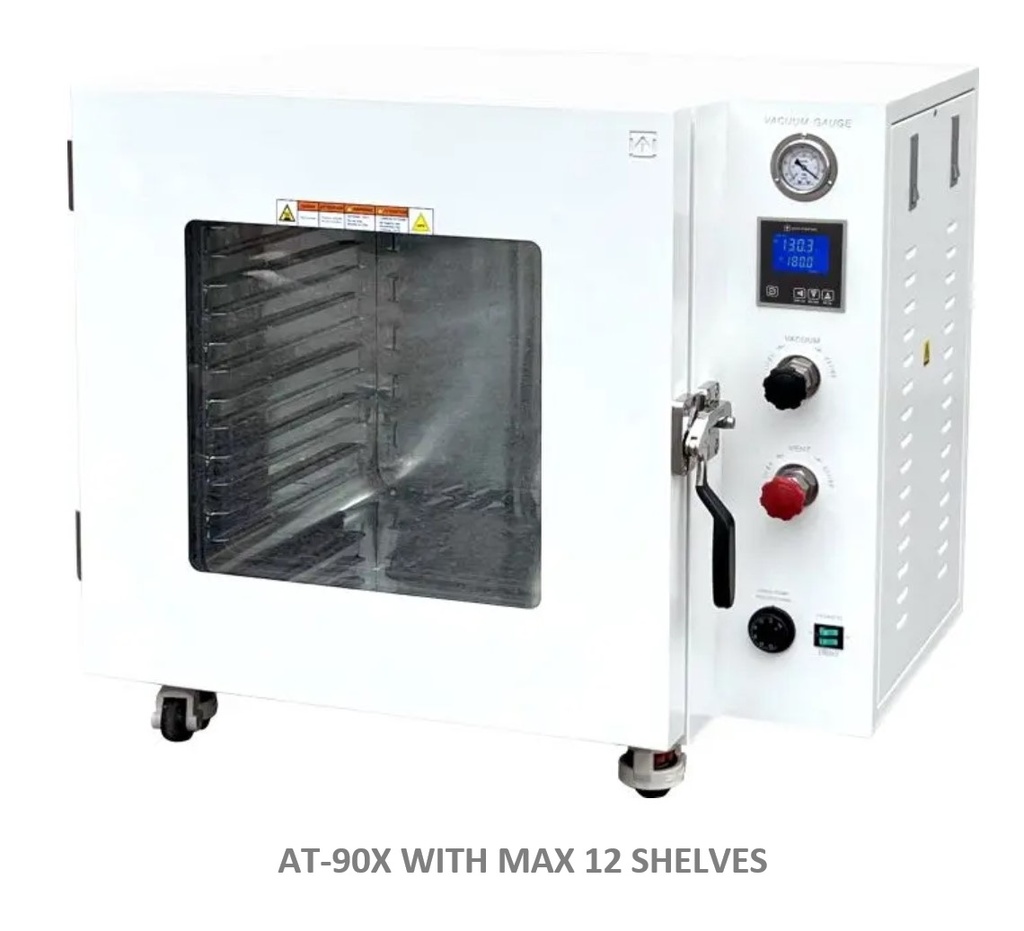

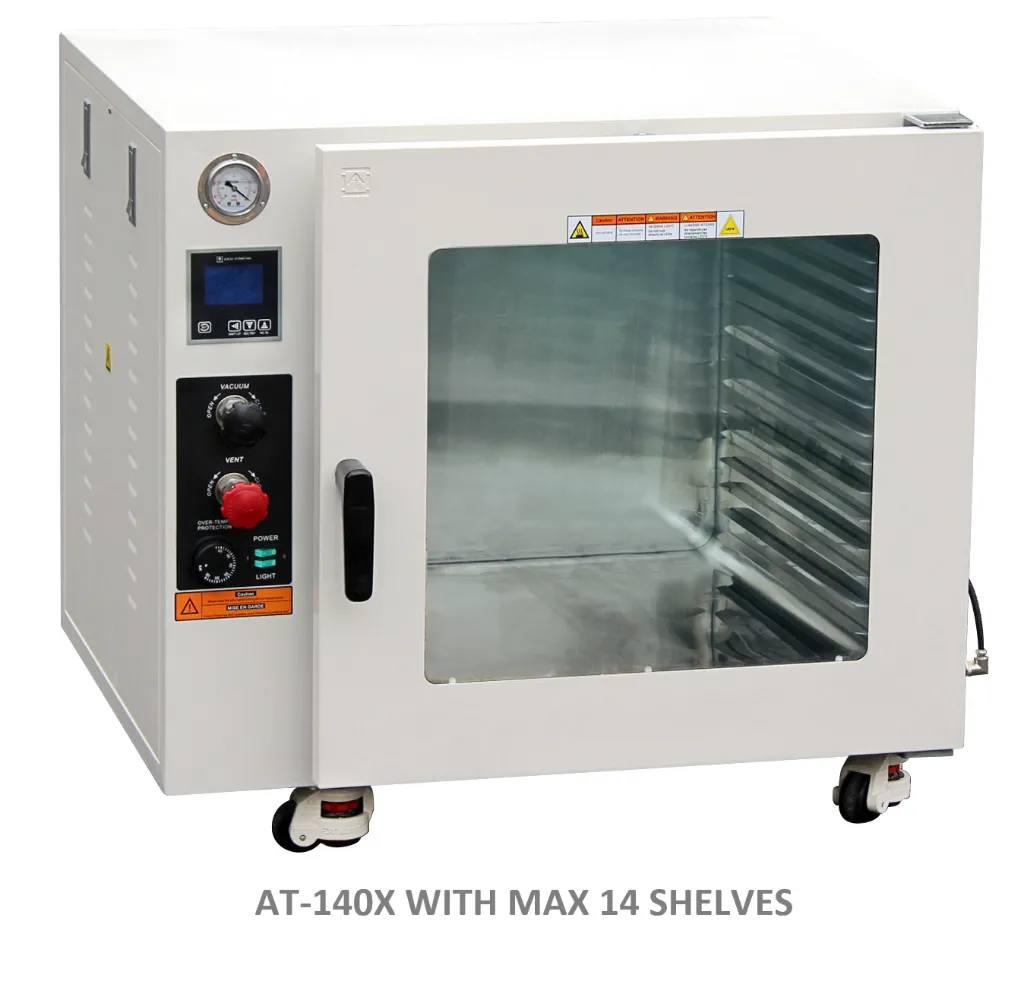

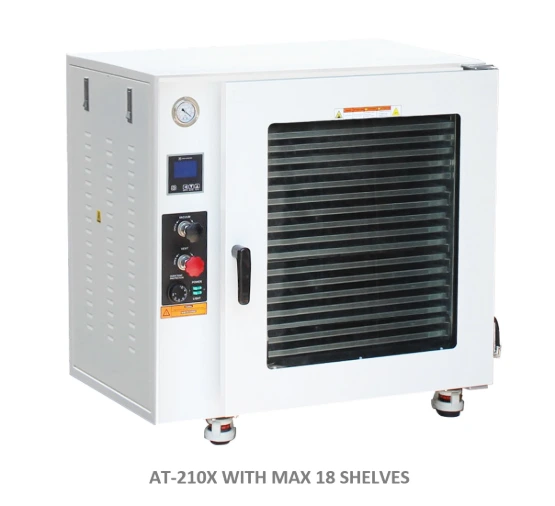

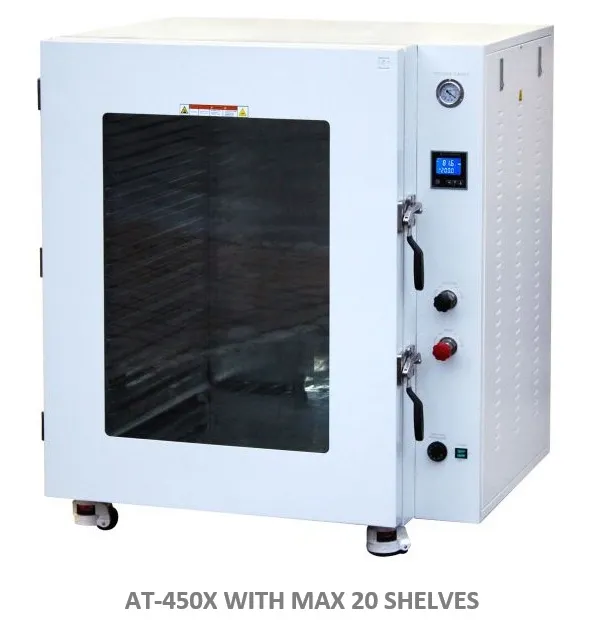

Across International’s Ai AccuTemp AT-X series vacuum ovens are available in four sizes: AT-90X, AT-140X, AT-210X and AT-450X. Combining five-sided chamber heating, digital PID temperature control and flexible shelf configurations, the series accommodates a wide range of laboratory and production workloads.
Heating elements cover the left, right, top, bottom and rear chamber walls, promoting even heat distribution throughout the stainless steel chamber. Thermally conductive aluminum shelves support efficient heat transfer, while the low proportional gain PID controller provides adjustable operation from ambient temperature to 250°C.
Vacuum operation lowers the boiling point of liquids, enabling suitable heat-sensitive materials to be processed at reduced temperatures. The AT-X series is suitable for vacuum drying, degassing, purging and curing compatible materials, including pastes, powders and extracts.

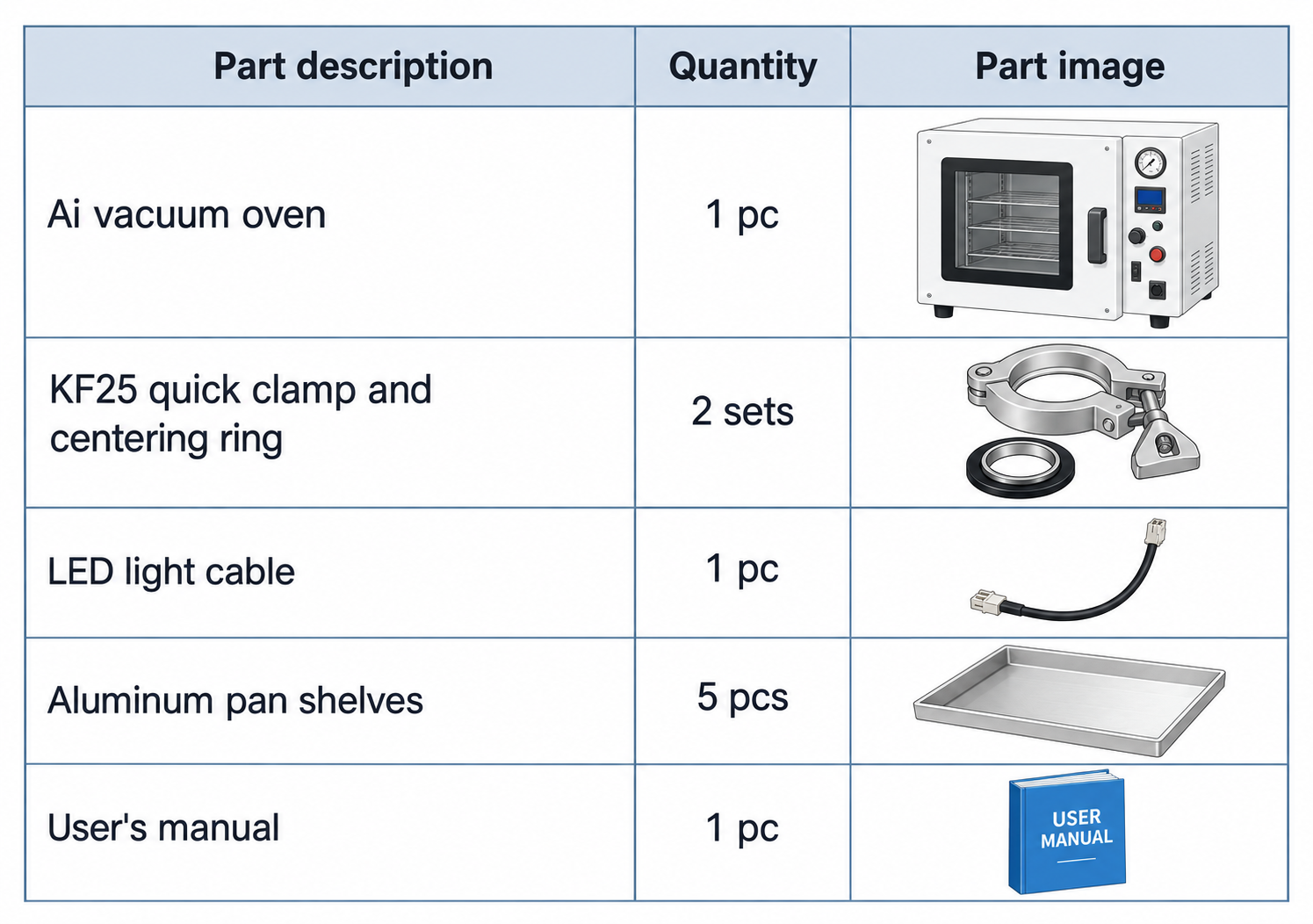

All four models come standard with five aluminum shelves, stainless steel internal tubing and compression fittings, stainless steel vacuum and vent valves, an oil-filled mechanical vacuum gauge, a KF25 inlet filter and secondary over-temperature protection. Maximum shelf capacities range from 12 to 20 shelves, depending on the model.
Each oven undergoes two 24-hour vacuum leak tests and individual quality control checks before dispatch.
Key Features

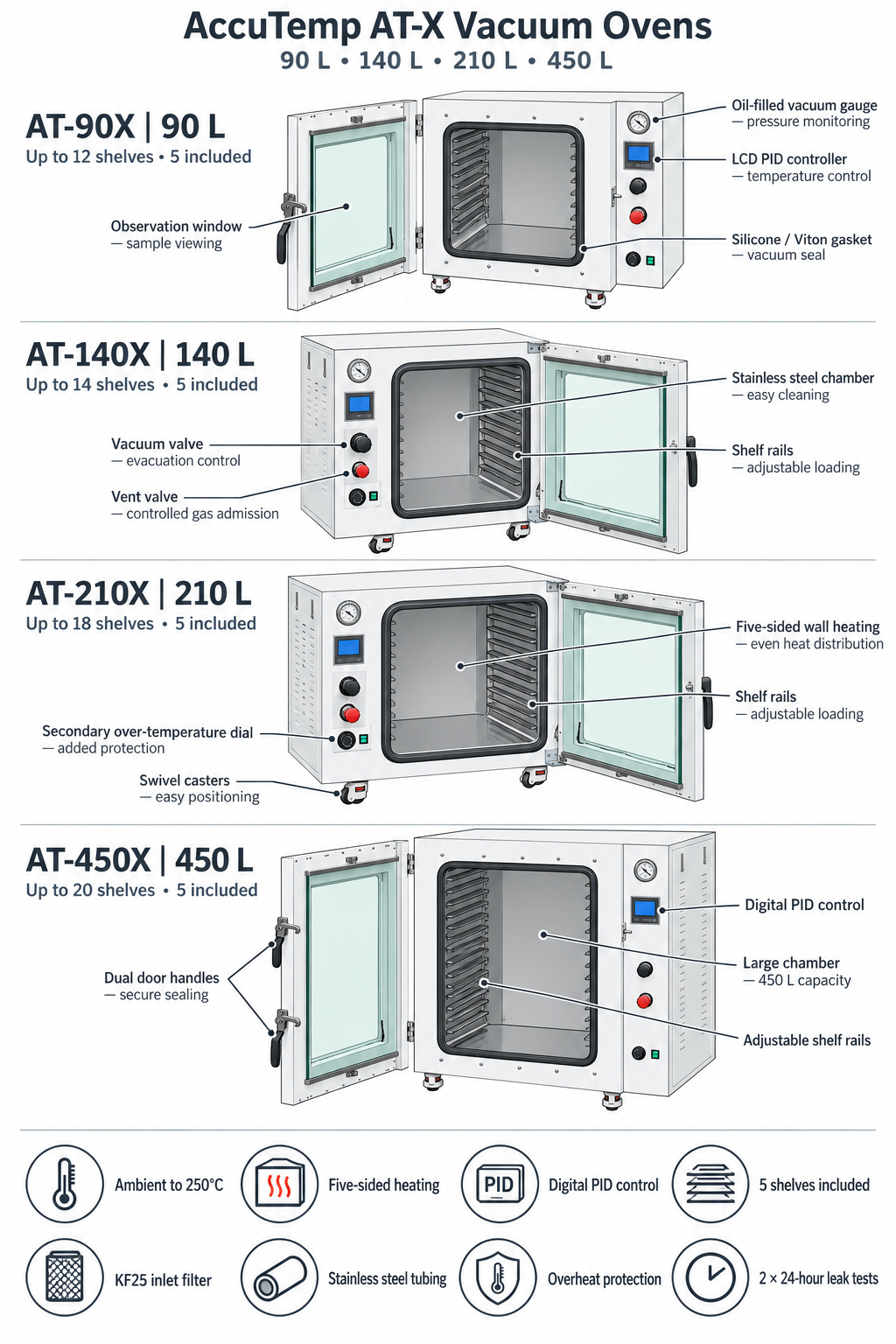

Four chamber capacities: Choose from 90 L, 140 L, 210 L and 450 L.
Five-sided chamber heating: Heating elements on five chamber surfaces promote consistent heat distribution.
Digital PID temperature control: LCD controller with low proportional gain control, selectable °C/°F display and a programmable dwell timer.

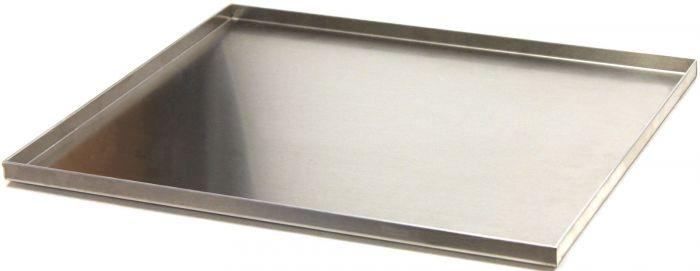

Flexible loading capacity: Five aluminum shelves included; additional shelves available to increase loading area.
Stainless steel vacuum components: Internal tubing, compression fittings, vacuum valves and vent valves provide durable connections and controlled operation.
Oil-filled vacuum gauge: Provides stable mechanical pressure readings.

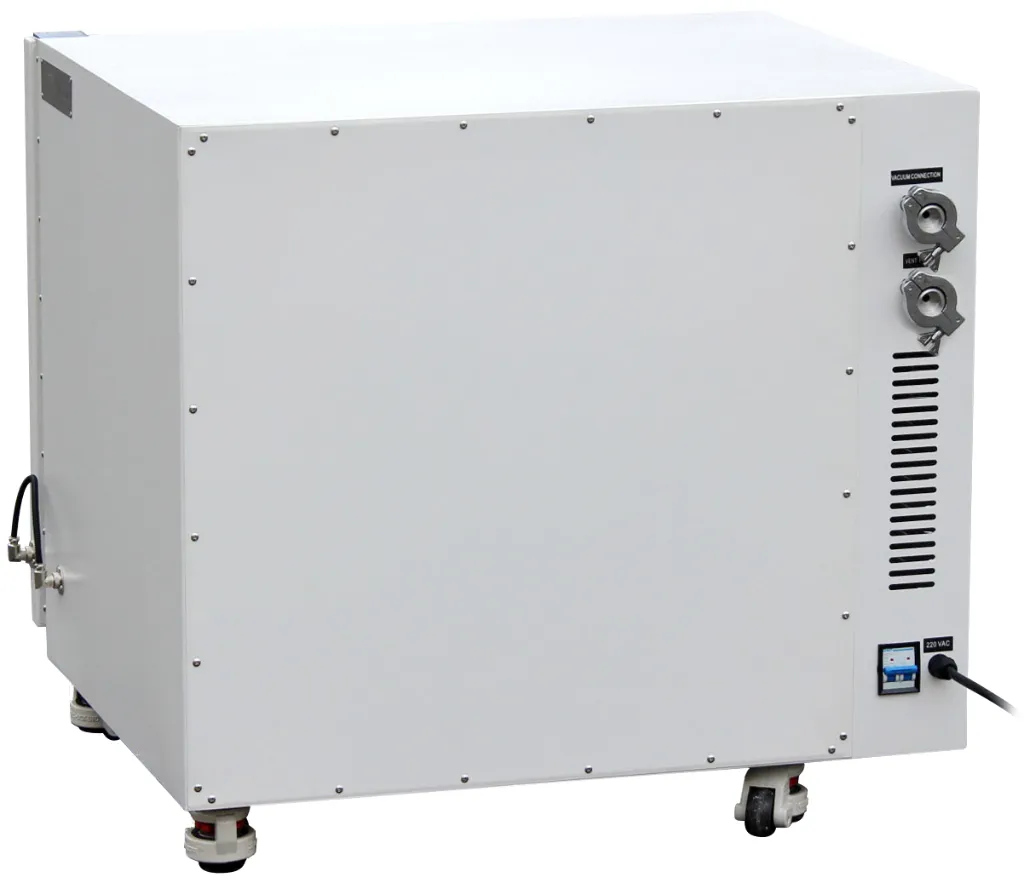

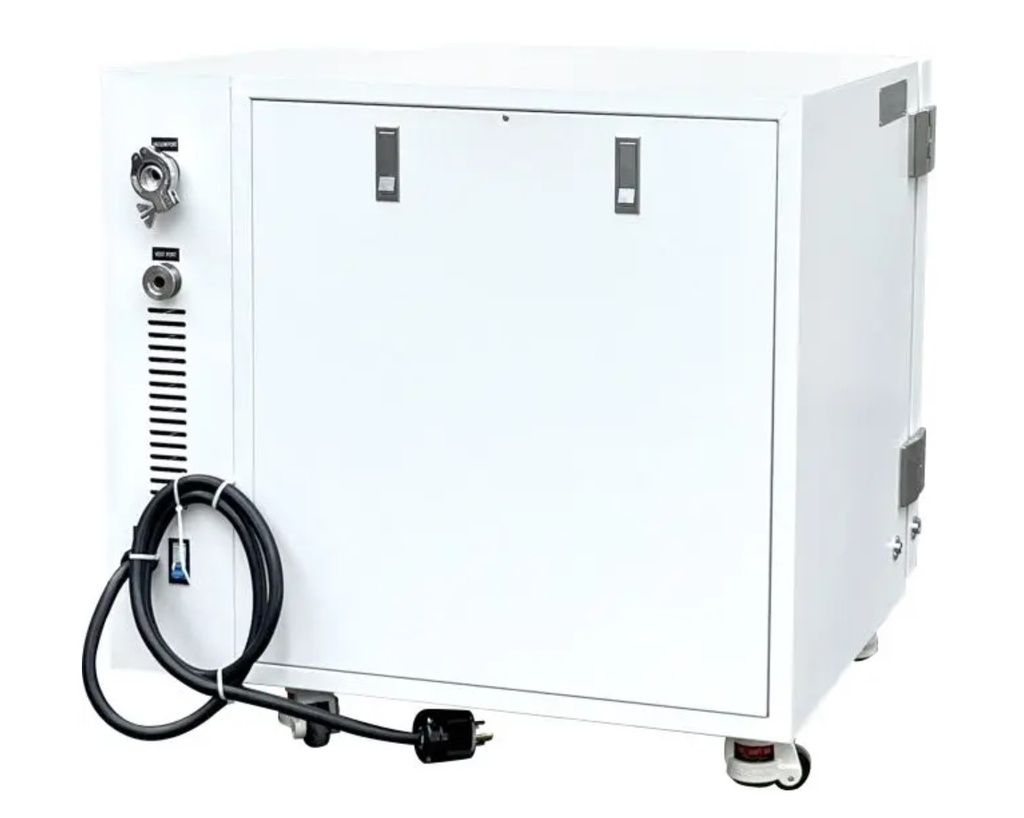

KF25 vacuum and vent ports: Standard flange connections across the series.
Included KF25 inlet filter: Helps limit particulate entry into the chamber during gas admission.

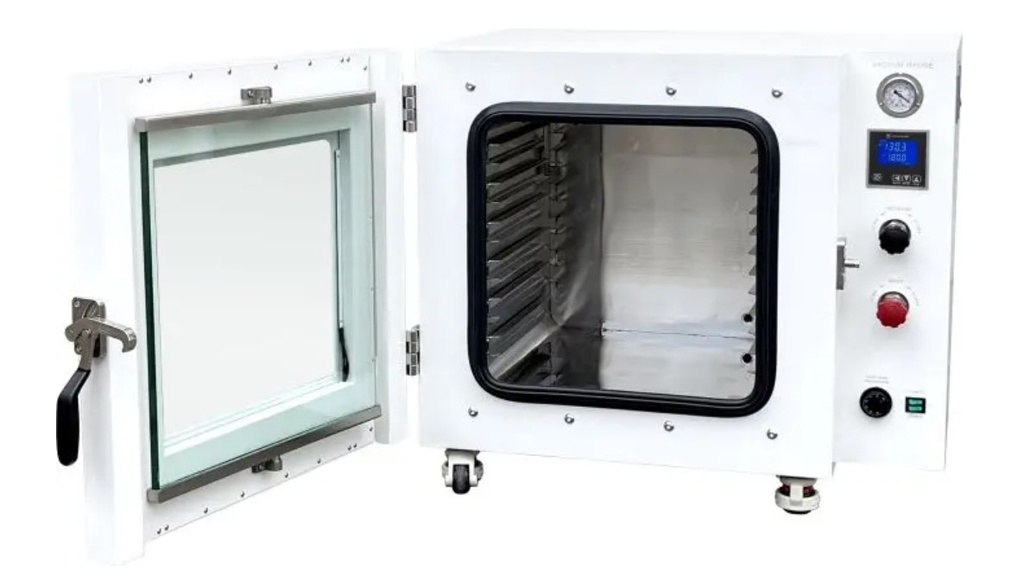

Stainless steel chamber: Easy-to-clean interior for durability and routine maintenance.

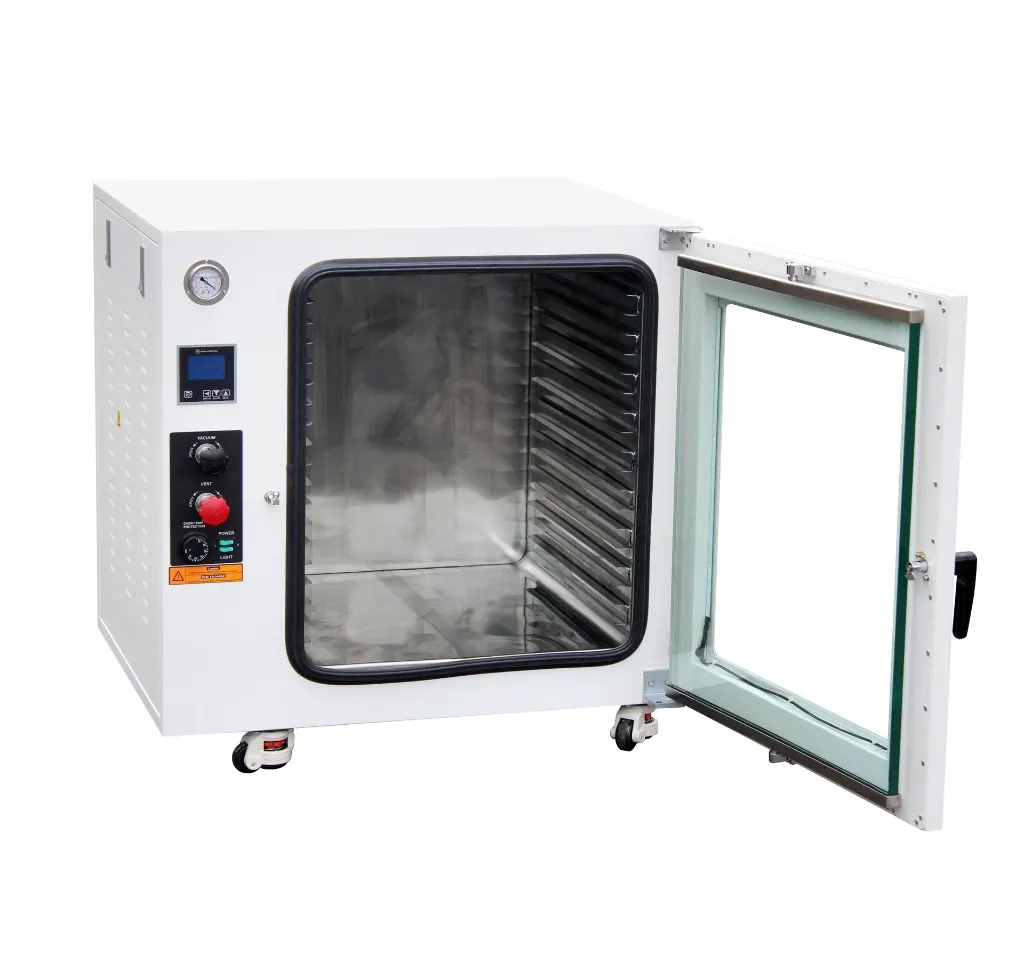

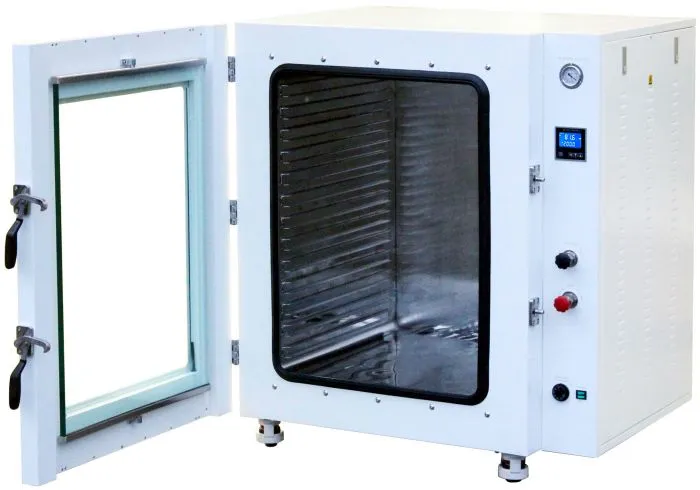

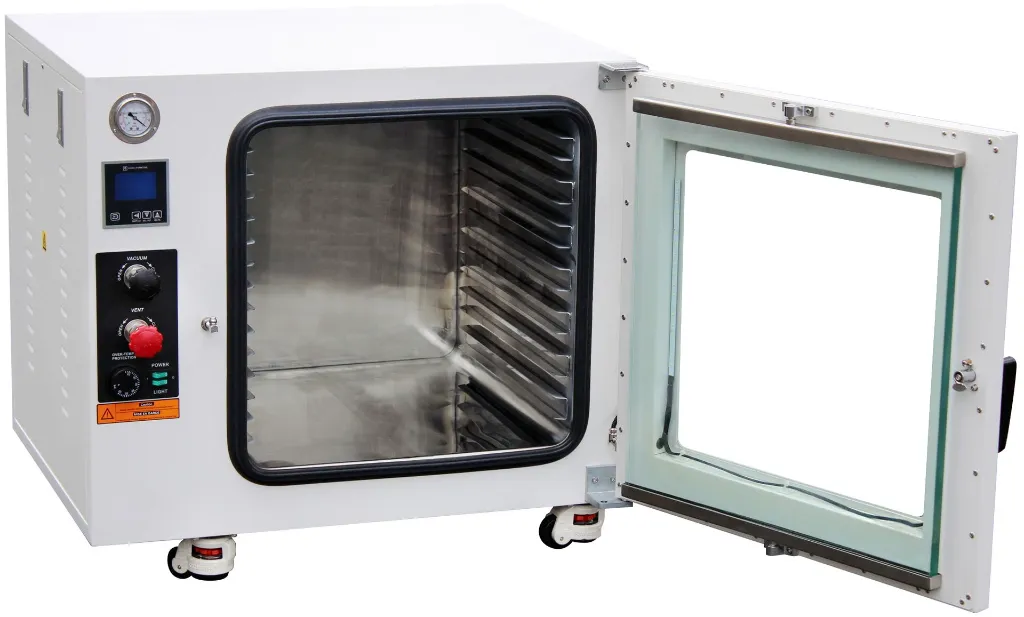

Large observation window: Dual-layer window incorporating tempered safety glass.
White LED chamber lighting: Enables convenient sample viewing.
Safety protection: Built-in circuit breaker, over-temperature shutoff, secondary over-temperature protection dial and temperature-related shutdown alarm.
Mobile floor-standing design: Swivel casters facilitate positioning; locking or levelling arrangements vary by model.
Two-year warranty: Supplied as standard across the series.
Operating Guidance
For improved temperature tracking, perform the controller auto-tune procedure as described in the operating manual.
Never leave the oven unattended during operation. Across International is not responsible for loss of material inside the oven.
