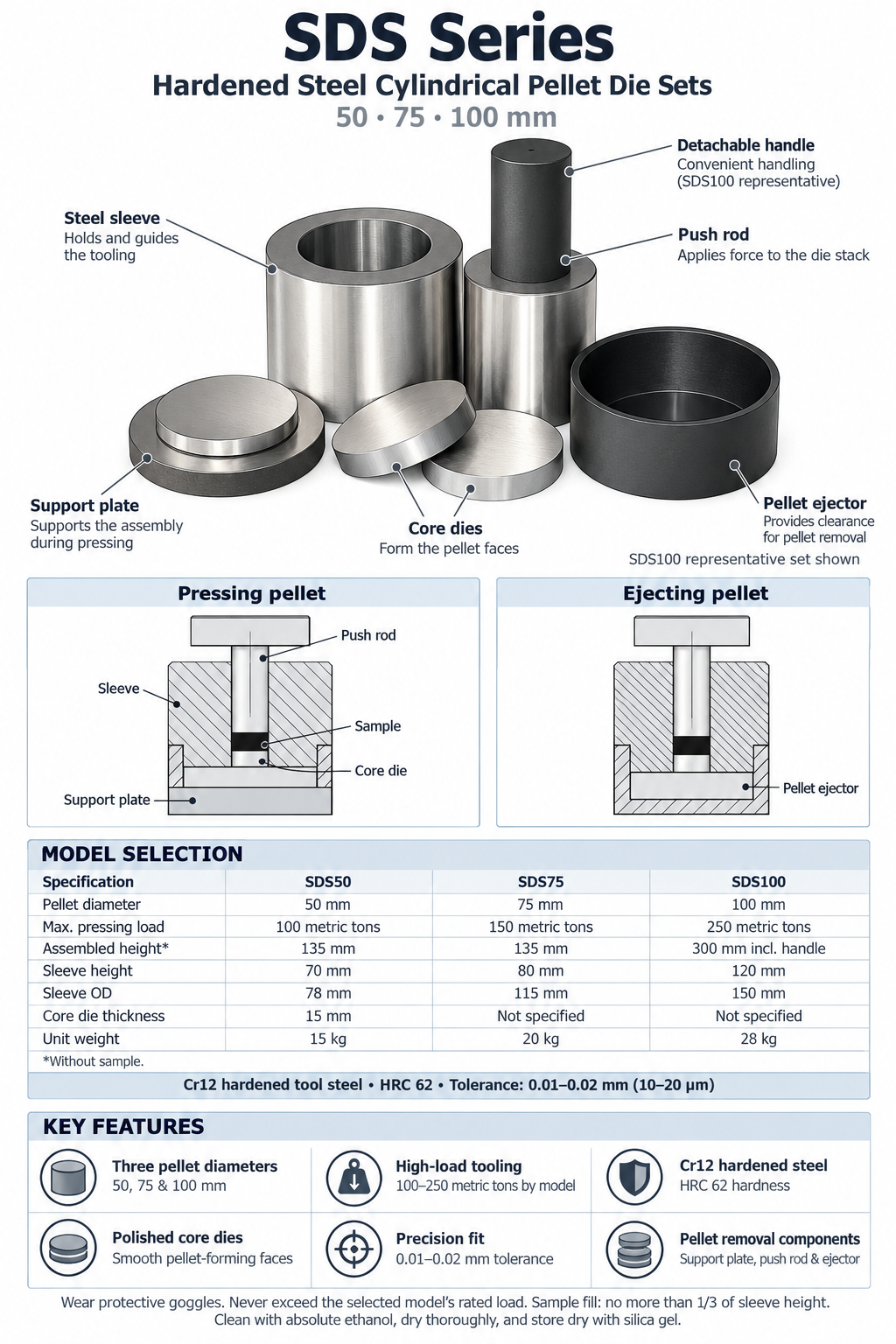

SDS Series Hardened Steel Cylindrical Pellet Die Sets — 50, 75 & 100 mm
Across International’s SDS Series dry pressing die sets are designed to produce cylindrical pellets from powder samples using a compatible pellet press. Available in 50, 75 and 100 mm pellet diameters, these models accommodate larger samples, with maximum pressing loads of 100, 150 and 250 metric tons, respectively.
Each set features Cr12 hardened tool steel, highly polished core tooling, a stated Rockwell hardness of HRC 62 and a dimensional tolerance of 0.01–0.02 mm (10–20 μm).

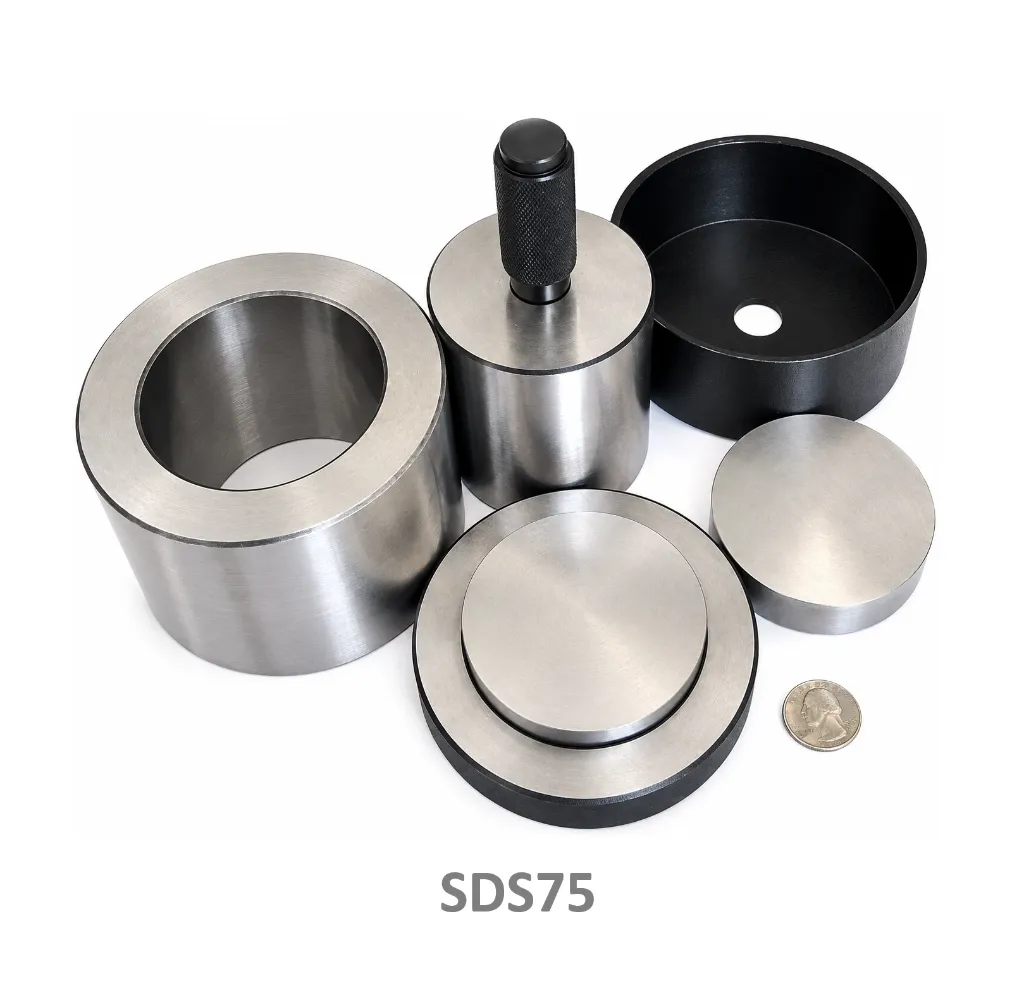

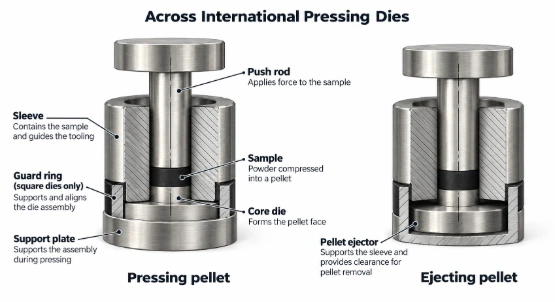

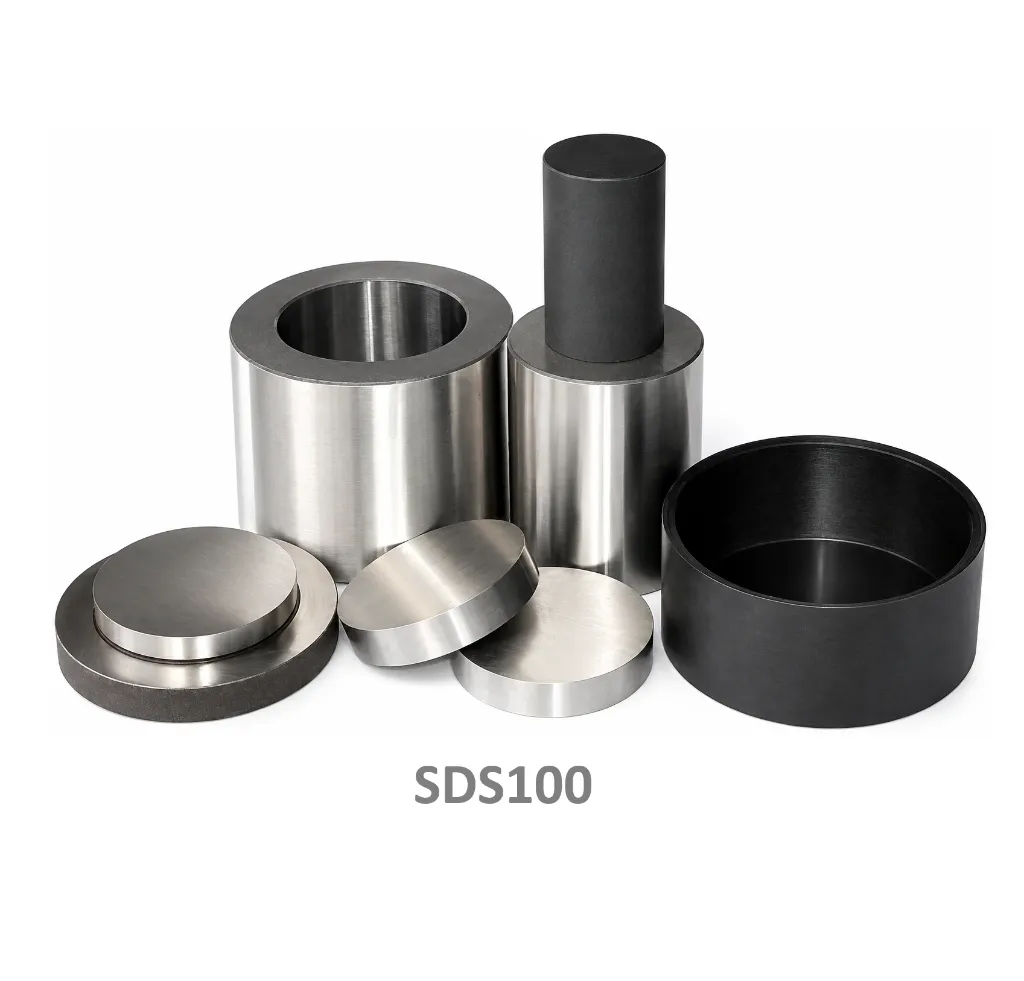

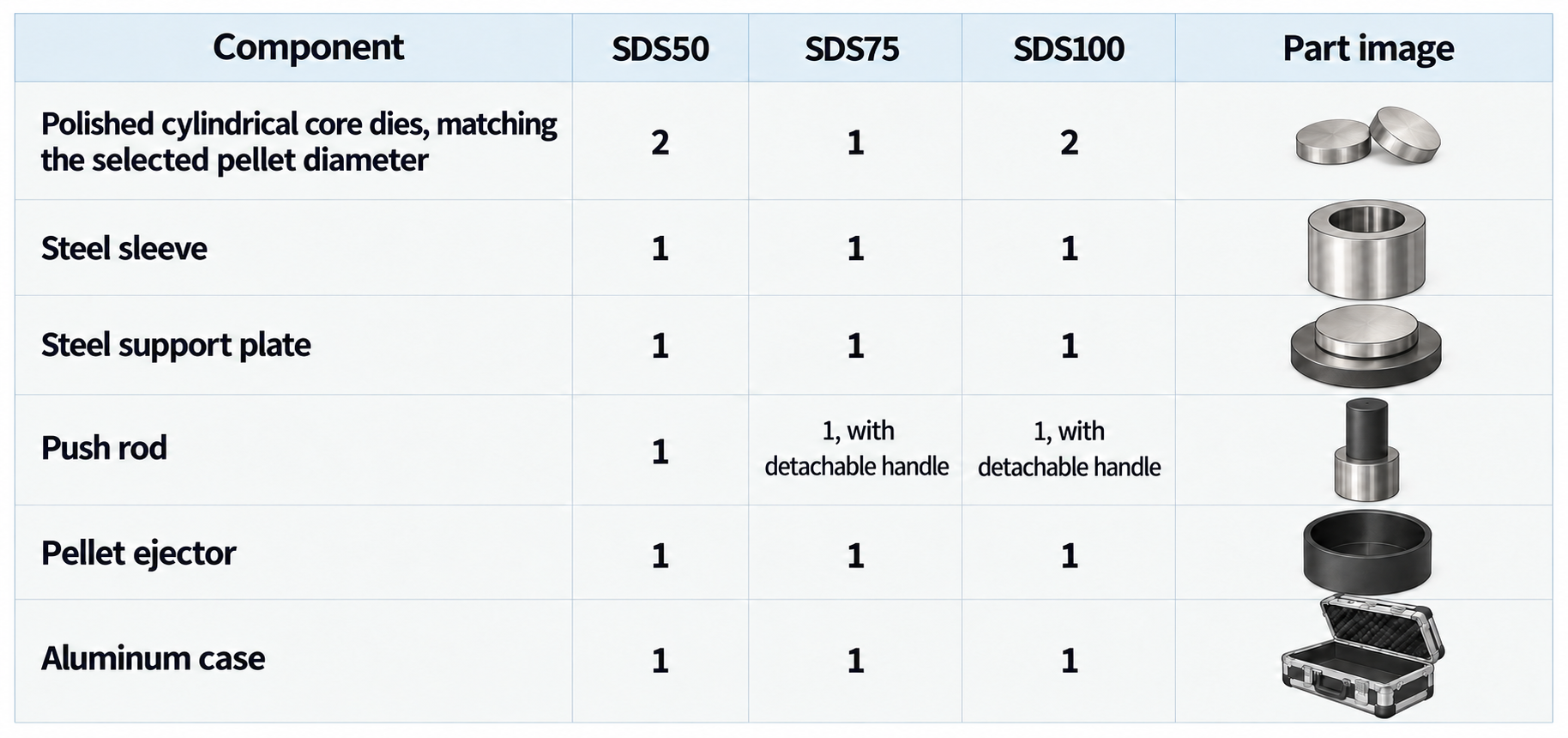

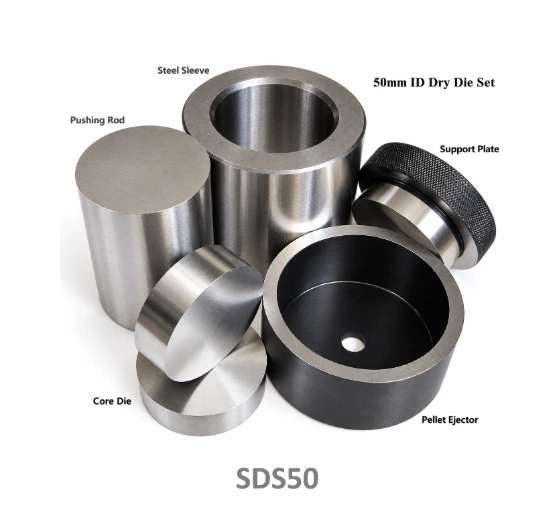

All models include a steel sleeve, support plate, push rod and pellet ejector. The SDS75 and SDS100 feature a push rod with a detachable handle for convenient handling.
Key Features
Three pellet diameters: 50, 75 and 100 mm.
High-load capacity: Model-specific maximum pressing loads from 100 to 250 metric tons.
Cr12 hardened tool steel: Durable tooling for dry powder pressing.
Polished core dies: Smooth tooling surfaces for pellet formation.
Precision fit: Stated dimensional tolerance of 0.01–0.02 mm.
Pellet removal components included: Supplied with a support plate, push rod and ejector.
Detachable handle: Included with the SDS75 and SDS100 push rods.
Operation & Maintenance
Always wear protective goggles and appropriate protective equipment during operation.
Never exceed the maximum pressing load specified for the selected model.
Sample fill height must not exceed one-third of the sleeve height.
After use, clean the components thoroughly with absolute ethanol and dry them before storage.
Store the die set in a dry box with silica gel to help prevent surface corrosion.
Across International is not responsible for damage caused by misuse.
