90L / 210L / 450L 250°C Vacuum Degassing Purging Oven w/ 3-6 Heated Shelves, St. St. Tubing & Valves

Ai AccuTemp Heated-Shelf Vacuum Ovens — 90 L, 210 L & 450 L

Across International’s Ai AccuTemp heated-shelf vacuum ovens are available in 90 L, 210 L and 450 L capacities for laboratory and production applications, including vacuum drying, degassing, purging and curing.

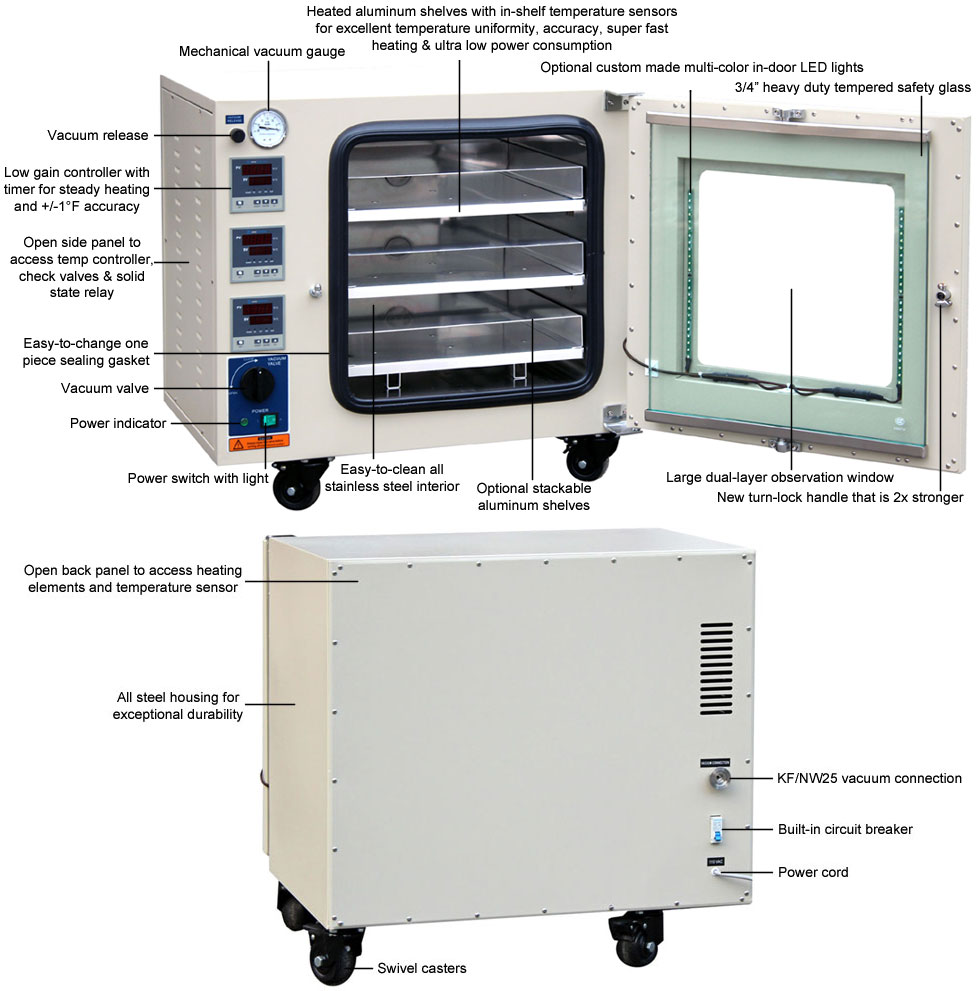

Unlike conventional chamber-heated ovens, the AccuTemp series uses internal shelf heating technology. Each aluminum shelf incorporates its own heater, embedded temperature sensor and digital PID temperature controller, allowing independent temperature control at each shelf. Direct shelf heating and thermally conductive aluminum promote efficient heat transfer, fast heating and consistent processing temperatures.

Vacuum operation lowers the boiling point of liquids, enabling suitable heat-sensitive materials to be processed at reduced temperatures. The easy-to-clean stainless steel chamber, large observation window and built-in lighting provide durability and convenient sample monitoring.

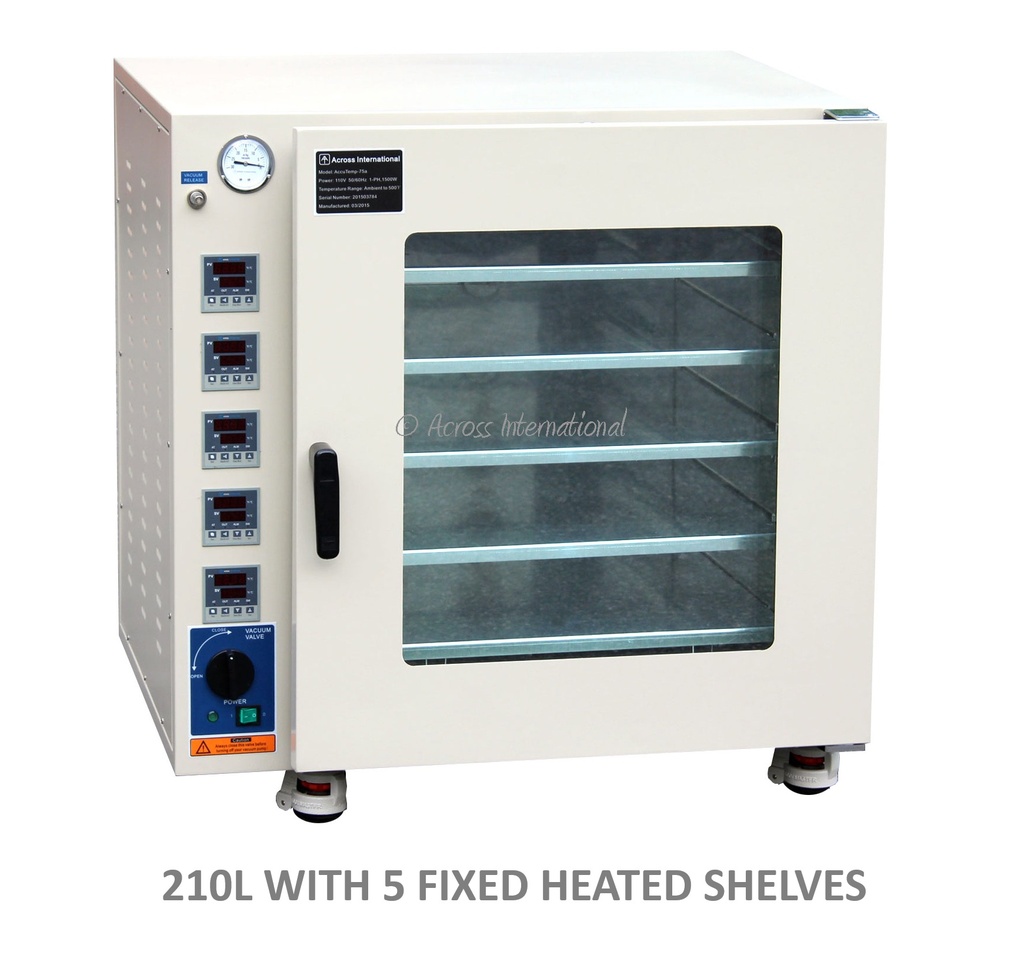

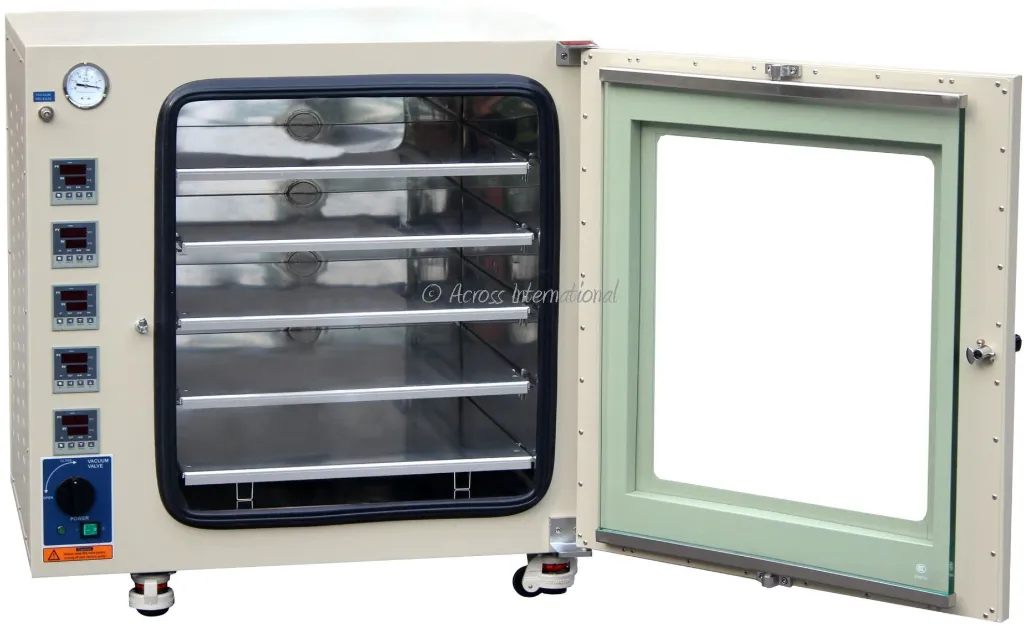

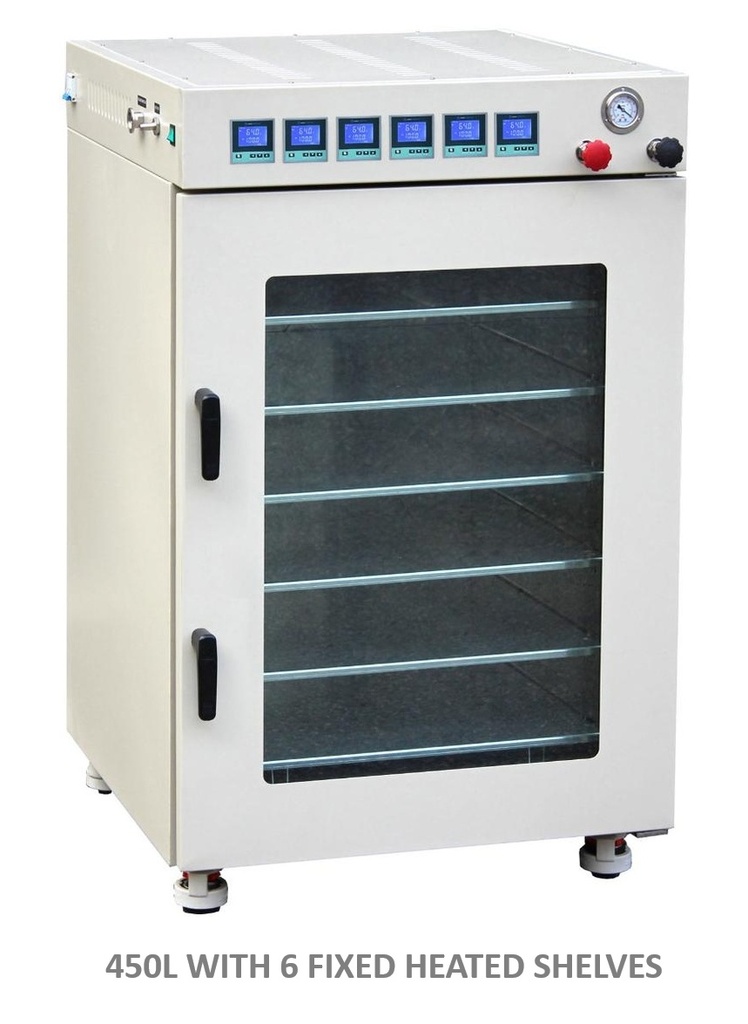

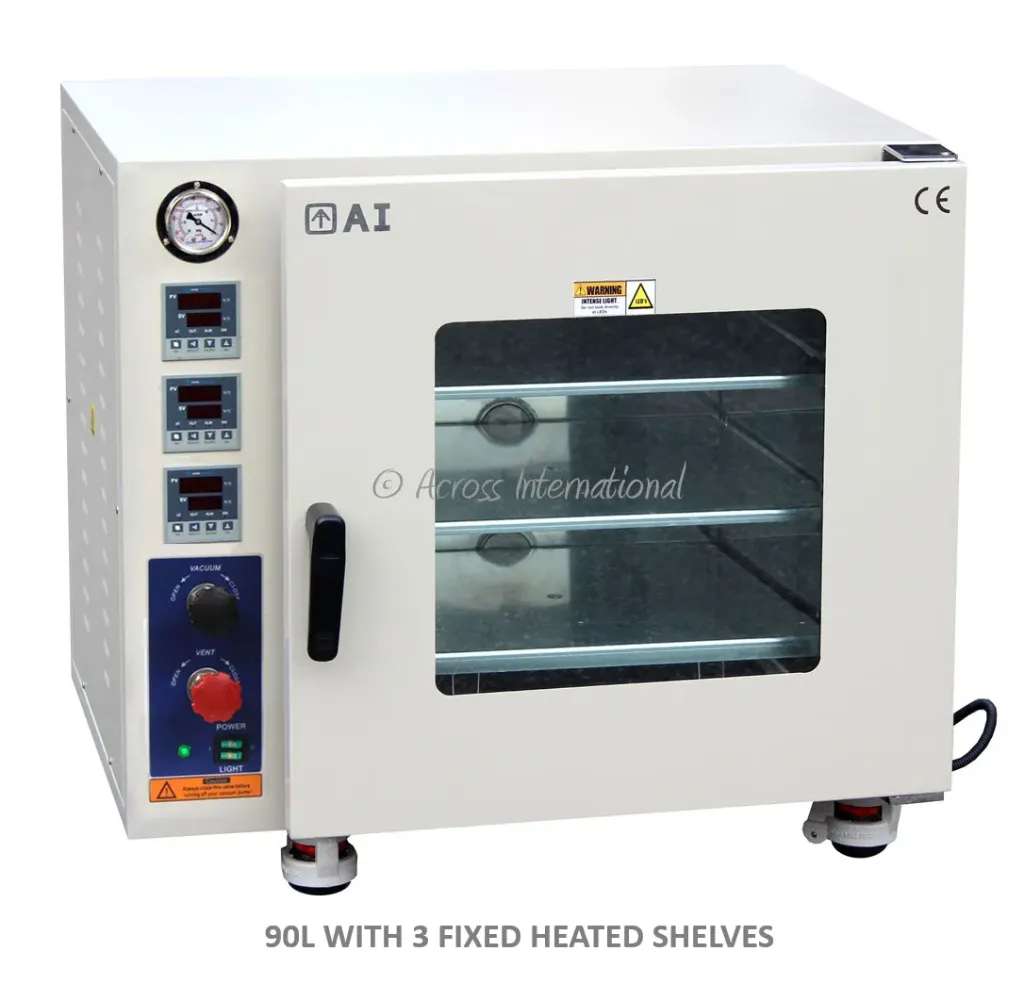

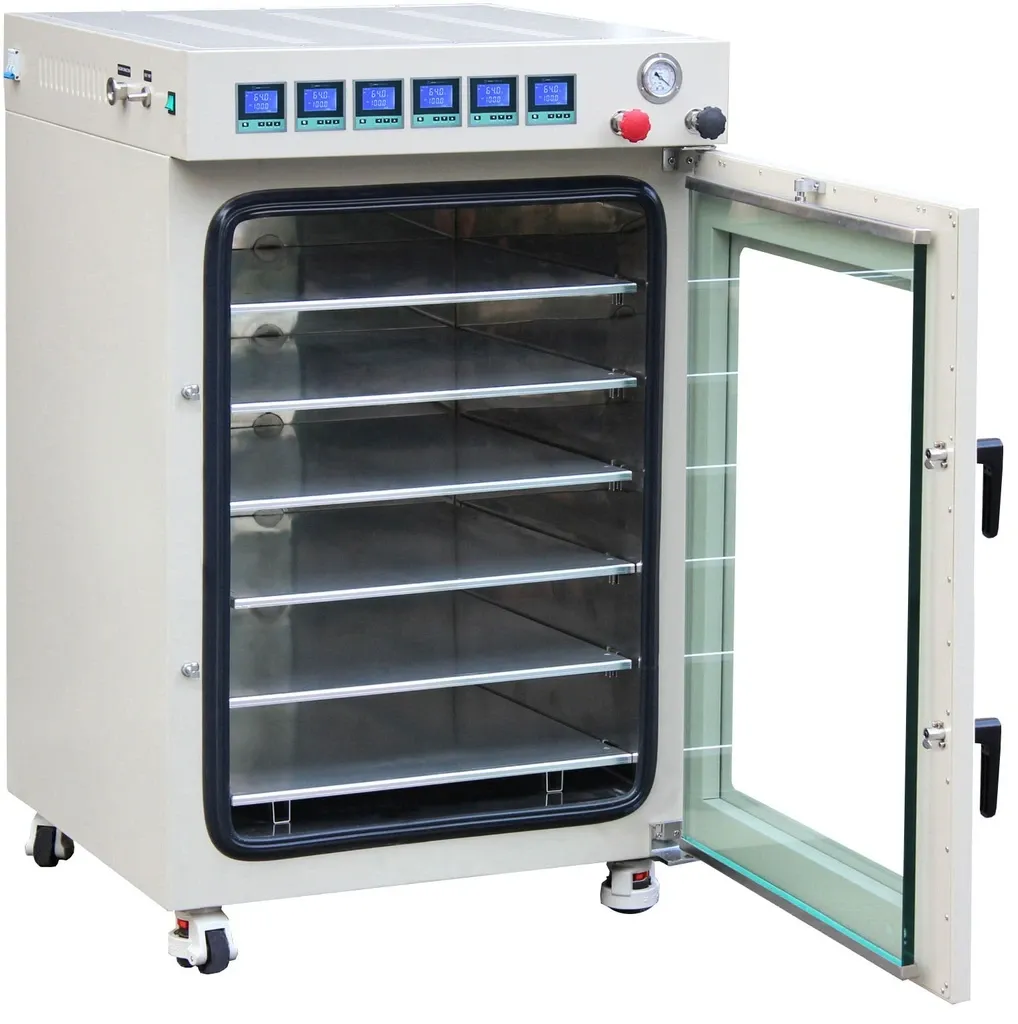

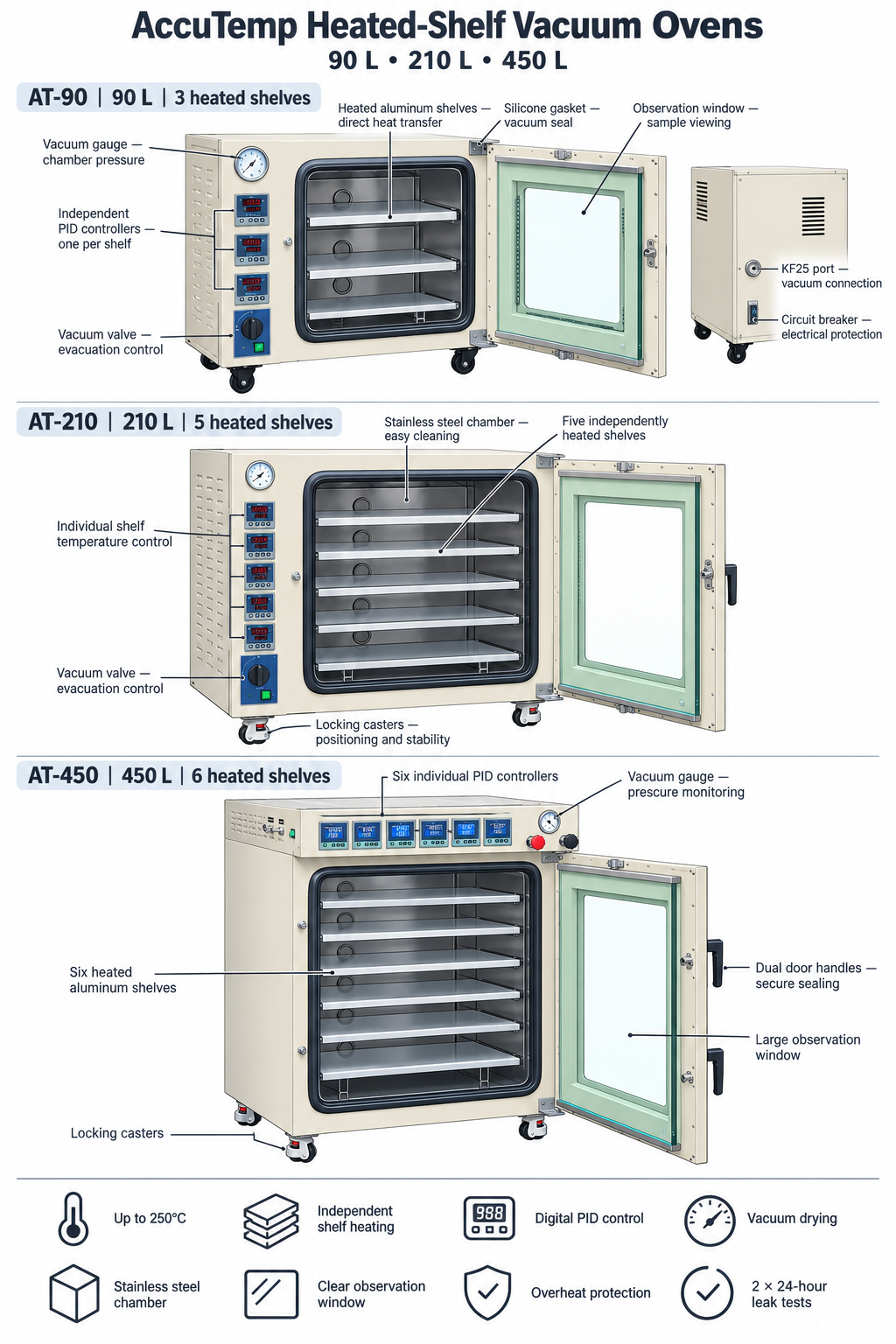

Choose the 90 L model with three heated shelves, the 210 L model with five heated shelves, or the 450 L model with six heated shelves. Optional stackable aluminum shelves increase the available loading area.

Every oven undergoes two 24-hour vacuum leak tests and individual quality control checks before dispatch.

Key Features

• Three capacity options: 90 L, 210 L and 450 L to accommodate different batch sizes.

• Independently controlled heated shelves: Each shelf has a dedicated heater, embedded sensor and digital temperature controller.

• Thermally conductive aluminum shelves: Direct heat transfer supports efficient heating and consistent processing conditions.

• LCD PID temperature control: Third-generation low proportional gain controllers with selectable °C or °F display.

• Vacuum processing: Suitable for drying, degassing, purging and curing compatible materials, including heat-sensitive samples, pastes and powders.

• Stainless steel chamber: Durable, easy-to-clean interior for routine laboratory and production use.

• Large observation window: Dual-layer window incorporating tempered safety glass.

• Built-in white LED lighting: Provides clear visibility of the chamber contents.

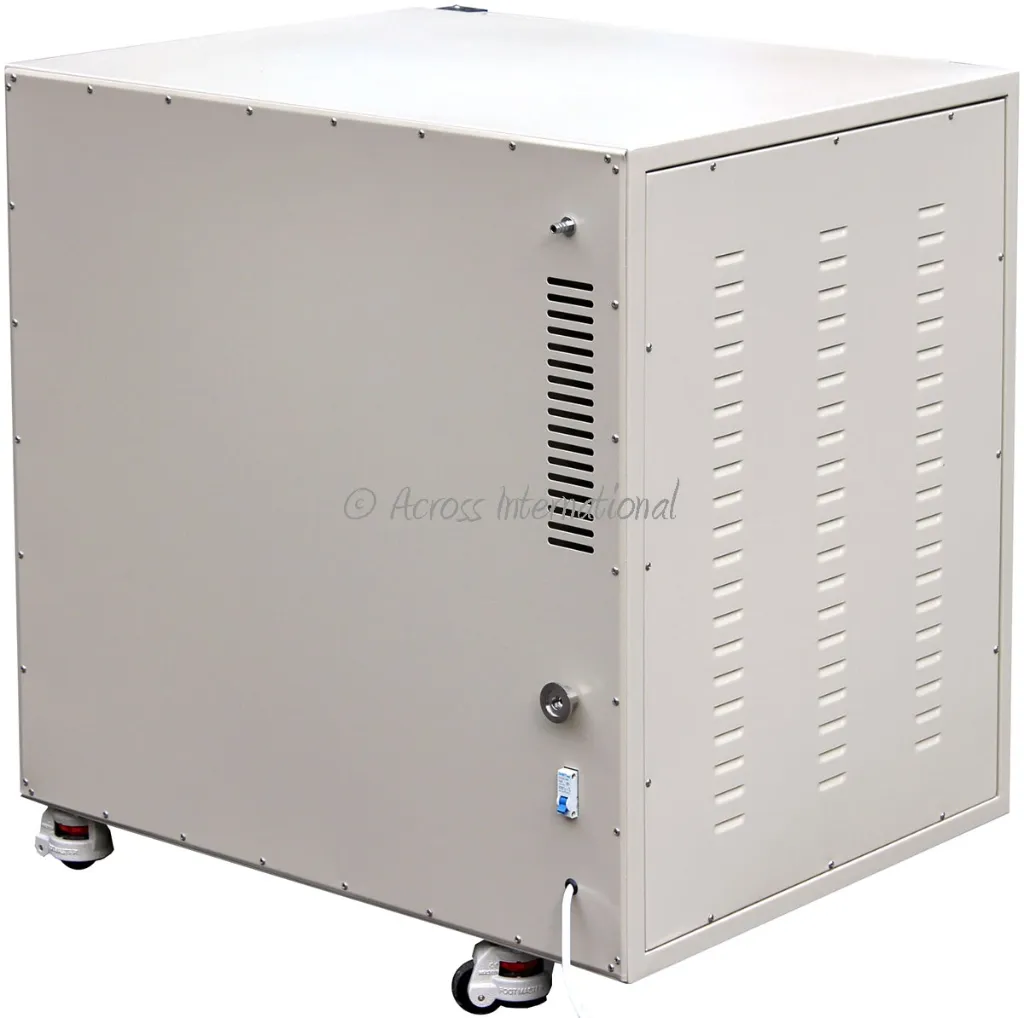

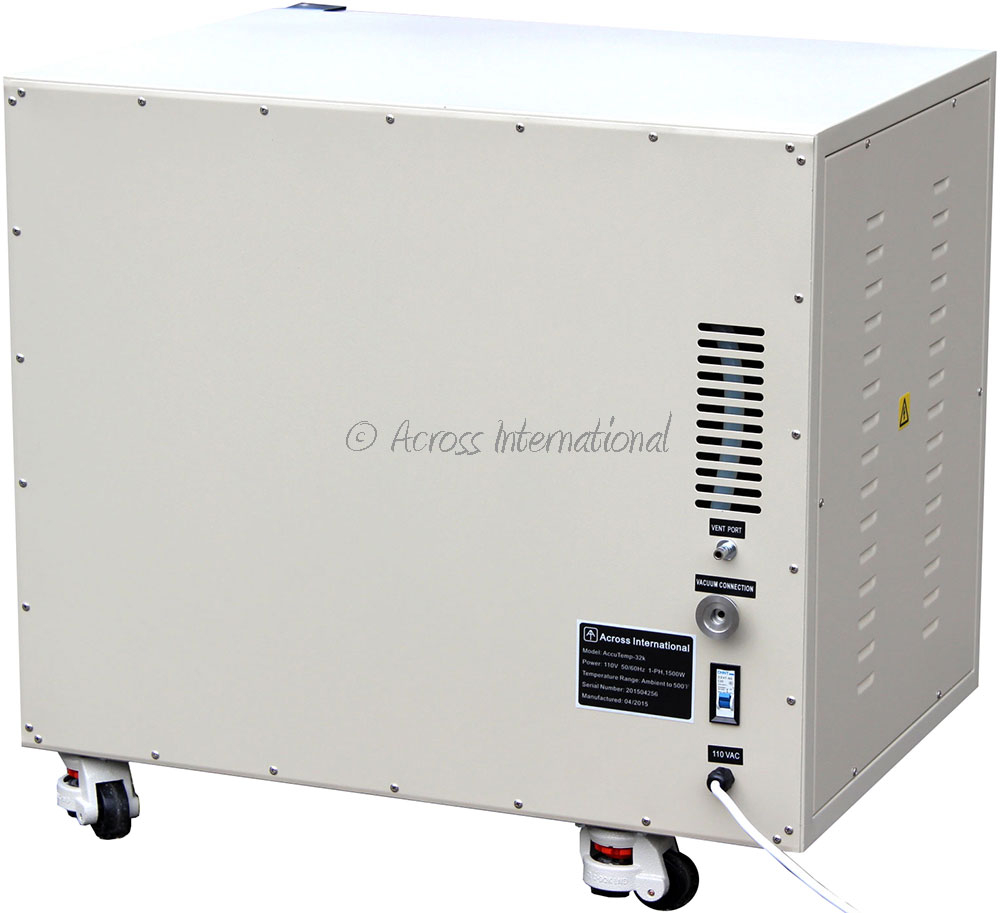

• KF25 vacuum connection: Standard vacuum flange across all three sizes.

• Safety protection: Built-in circuit breaker, overheat protection and an alarm indicating a temperature-related safety shutdown.

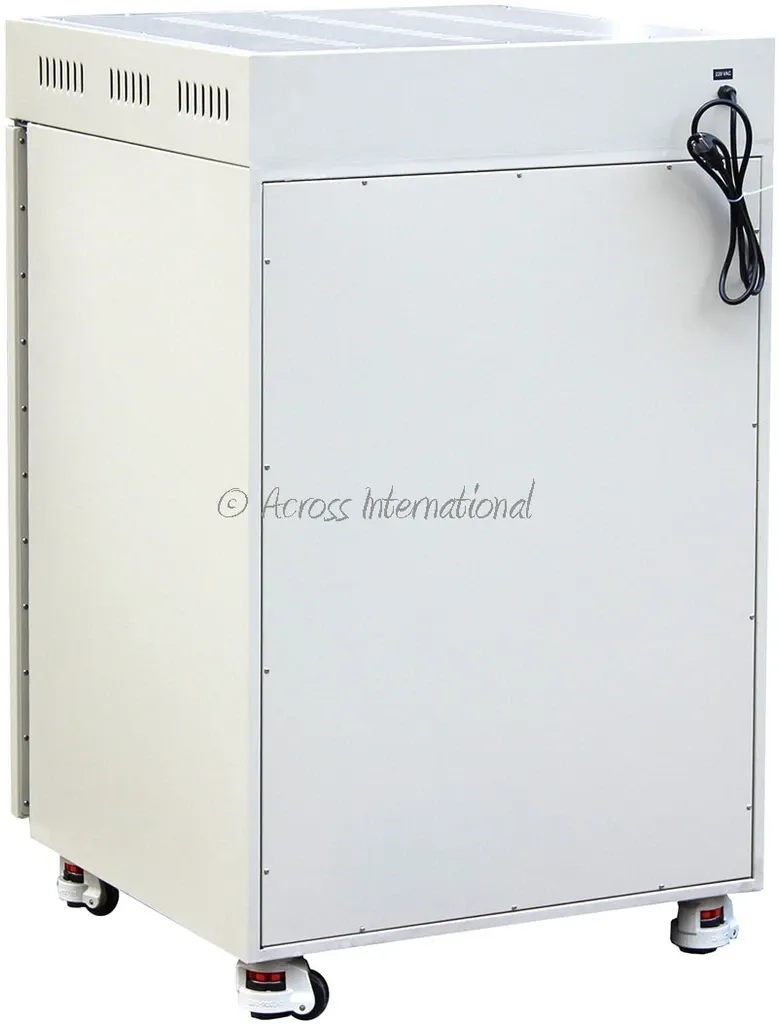

• Mobile floor-standing design: Wheels or casters facilitate positioning; the 210 L and 450 L models include locking swivel casters.

• Optional stackable shelves: Additional loading surfaces increase usable shelf area.
