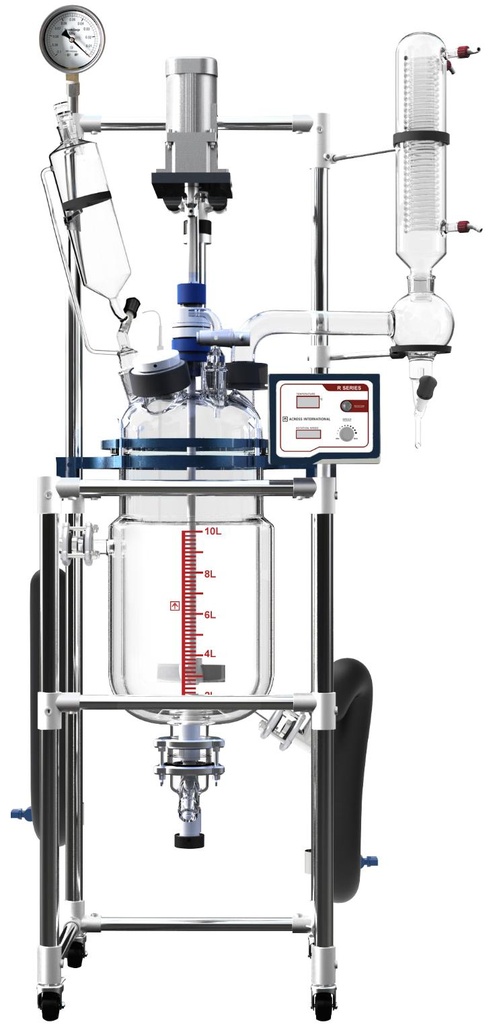

Ai R-Series Medium-Sized Jacketed Glass Reactor
Best-Selling Laboratory Reactor | Stable Operation | Reliable Performance
The Ai R-Series Jacketed Glass Reactor is one of our best-selling medium-sized reaction systems, designed to deliver reliable performance, stable operation, and versatile functionality for laboratory research, chemical synthesis, and process development.
Offering an excellent balance between processing capacity and laboratory space requirements, the R-Series is ideal for laboratories seeking a dependable reactor for routine experiments, formulation development, and small-scale production.
The reactor features a high-borosilicate glass vessel, adjustable mechanical stirring, a constant-pressure feeding funnel, and a high-efficiency condenser. When connected to a suitable heating/cooling circulator and vacuum pump, it provides a controlled temperature and vacuum environment for a wide range of chemical processes.
Built with durable glassware, chemical-resistant PTFE components, and a heavy-duty stainless steel support frame, the R-Series is engineered for stable, dependable day-to-day operation. Its user-friendly design and digital speed and temperature displays allow convenient monitoring and precise adjustment of reaction conditions.
Available in single- and dual-jacketed configurations, the R-Series offers flexibility to accommodate different temperature control requirements and laboratory applications.
Features
Best-selling medium-sized reactor – combines practical processing capacity, versatile functionality, and dependable performance for a wide range of laboratory applications.
Stable and reliable operation – robust construction, precision stirring components, and a heavy-duty supporting frame provide excellent mechanical stability during operation.
High-borosilicate glass construction – offers excellent thermal and chemical resistance while allowing clear visibility of the reaction process.
Single- and dual-jacketed options – designed for controlled heating and cooling. The optional dual-jacketed configuration allows vacuum insulation of the outer jacket to minimise heat transfer and reduce external frosting.
Wide operating temperature range – glass vessel designed for operation from -80°C to 200°C, subject to suitable operating conditions and compatible temperature-control equipment.
Adjustable mechanical stirring – provides flexible speed control and reliable mixing performance for different materials and reaction conditions.
Durable PTFE stirring system – patented PTFE stirring rod bearing supports smooth, quiet operation, while the stainless-steel reinforced PTFE agitator provides chemical resistance and mechanical strength.
Optional multi-layer stirring blades – available to accommodate different mixing requirements and improve mixing efficiency for suitable applications.
Constant-pressure feeding funnel – enables gradual and controlled addition of reagents during reactions.
High-efficiency condenser – large cooling surface supports effective condensation, reflux, and solvent recovery.
Vacuum-capable operation – suitable for reduced-pressure applications when connected to an appropriate vacuum system.
Digital speed and temperature displays – allow convenient real-time monitoring and adjustment of reaction conditions.
Thermal insulation jacket included – features an openable viewing window and adjustable drawstrings to minimise heat loss or heat gain, improve temperature stability, and reduce the heating or cooling load.
Heavy-duty stainless steel support frame – equipped with lockable casters for convenient mobility and secure positioning. The frame and glass vessel are shipped pre-assembled for easier installation.
Compliance – RCM and CSA compliant. UL and CE certification available as optional configurations.
Australian service and support – backed by a one-year warranty with AU-based parts, technical assistance, and after-sales support.
Typical Applications
The Ai R-Series is suitable for a wide range of laboratory and process-development applications, including:
Chemical synthesis and organic reactions
Pharmaceutical and biotechnology research
Crystallisation and material development
Formulation and small-batch processing
Extraction, reflux, and solvent recovery
Temperature-controlled mixing and vacuum processing
With its proven design, stable operation, and versatile processing capabilities, the Ai R-Series is an ideal solution for universities, research institutions, pharmaceutical laboratories, and industrial R&D facilities requiring a reliable medium-sized glass reactor.
Safety Notice
Glass reaction systems must be operated by trained personnel using appropriate laboratory safety procedures.
Keep loose clothing, hair, jewellery, and other objects away from rotating components to prevent entanglement and potential glassware breakage, burns, or chemical exposure.
Extra caution is required when handling air-reactive materials, particularly under vacuum. Air entering through a leak may cause a hazardous or violent reaction. Always inspect glassware, seals, and connections before operation and use appropriate protective equipment.
