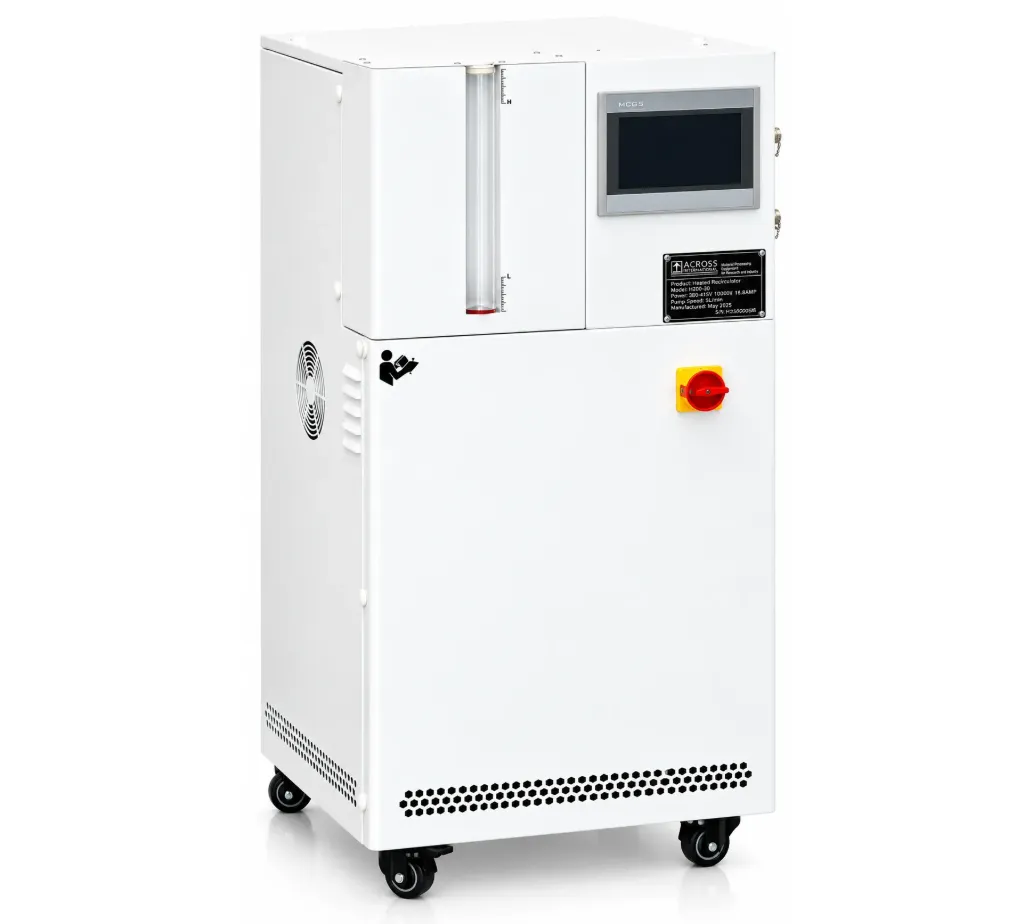

H300-30 High Temperature Heating & Cooling Circulator, 50°C to 300°C
The Ai H300-30 High Temperature Heating & Cooling Circulator is a powerful and precision-controlled temperature control system designed for jacketed reactors, process vessels and other demanding laboratory and industrial applications.
With a working temperature range of 50°C to 300°C, the H300-30 combines 25 kW heating capacity, powerful circulation and active cooling in a fully closed-loop system. It is particularly suitable for applications requiring rapid heating, controlled cooling and stable temperature maintenance.
The advanced PID control system allows users to control either the circulating fluid outlet temperature or the actual reactor material temperature, providing excellent flexibility for different reaction processes.
Key Features
- Wide Temperature Range: 50°C to 300°C
- 25 kW High-Power Heating
- Active Cooling: Up to 25 kW cooling capacity at 300°C
- Precision PID Temperature Control
-
Heat transfer fluid temperature accuracy: ±0.1°C
-
Reactor material temperature accuracy: ±0.5°C
- 7" Colour Touchscreen with temperature curve display and recording
-
Programmable, ramp, differential and constant-temperature control modes
-
Up to 20 programs with 40 steps per program
-
Four-point PT100 temperature monitoring
- 150 L/min high-flow circulation pump
-
Fully closed circulation system
- MODBUS RTU / RS485 communication
-
Multiple integrated safety protection functions
The controller supports programmable and ramp temperature operation, with up to 20 programs and 40 steps per program. The system monitors the internal fluid, inlet, outlet and externally connected reactor material temperatures using PT100 sensors.
Applications
The H300-30 is suitable for temperature control of:
-
Jacketed glass and stainless steel reactors
-
Chemical reaction systems
-
Pharmaceutical and process development
-
Distillation and crystallisation processes
-
Polymerisation and synthesis
-
Microchannel reactors
-
Material and component temperature testing
-
Pilot-scale and industrial process systems
For reactor applications, the source document specifically highlights stable temperature control, rapid heating/cooling, continuous operation and real-time recording of reaction temperatures.
Safety & Closed-Loop Design
The H300-30 incorporates multiple safety protections including over-temperature protection, low-liquid-level protection, overload protection, thermal protection, sensor fault protection and power abnormality protection.
Its fully closed circulation design helps prevent oil mist at high temperatures and moisture absorption at lower temperatures, making it suitable for long-duration and demanding temperature-control applications.
