The term explosion proof describes electrical and non-electrical fixtures that can prevent explosions from occurring. An electrical product that is marked explosion proof means that this product has an apparatus enclosed in a case that is capable of withstanding an explosion of a specific gas or vapor that may occur within it. It also has the capability of preventing the ignition of a specified gas or vapor surrounding the enclosure by sparks, flashes, or explosion of the gas or vapor within, and that it operates at such an external temperature that a surrounding flammable atmosphere will not be ignited.
To meet the criteria for the explosion proof rating, an enclosure must be able to contain any explosion originating within its housing and prevent sparks from within its housing from igniting vapors, gases, dust, or fibers in the air surrounding it. Therefore, explosion proof, when referring to electrical enclosures, does not mean that it is able to withstand an exterior explosion. Instead, it is the enclosures ability to prevent an internal spark or explosion from causing a much larger blast.

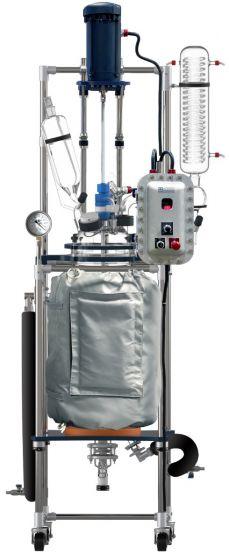

Ai jacketed reactors with Explosion-Proof motor, controller and power management
Ai R50ex series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
PSI peer reviewed to be used in a C1D1 environment.
Thermo insulation jacket with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
Adjustable stirring rate provides great torque or high speed.
Patented PTFE stirring rod bearing for reliable and quiet operation.
Optional multi-layer stirring blades for optimal reaction results.
Wide range of temperature operations, from -110F to 400F.
Large condenser cooling surface for exceptional condensation performance.
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
Easily visual operation with digital speed and temperature displays.
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
One year warranty and lifetime US-based parts, service, and support.
Vessel, condenser, feeding funnel and receiving flask: borosilicate glass 3.3 Agitator: 304 stainless steel with PTFE coating Sealing gaskets: PTFE
Glass vessel temperature range
-80C to +200C (-112F to +400F)
Vacuum & pressure
Ultimate vacuum: < 700 Torrs Display: mechanical vacuum gauge Maximum fluid jacket pressure: 4.4 psi or 0.03 MPa
Weight and dimensions
Unit: 26 x 33 x 85" (WxDxH fully setup) Drain port ground clearance: 12.5" Shipping: 27 x 80 x 32" (WxDxH), 330 lbs
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
Standard package with all optional parts
Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled)
Glass vessel insulation jacket with openable viewing window
Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass
Glass condenser dispenser with drain port and PTFE open/close valve
Glass material feeding funnel, lid, and PTFE open/close valve
1" glass drain port with PTFE open/close valve
Glass vacuum valve
Explosion-Proof stirring motor and motor support
Mechanical vacuum gauge with two 3/8" hose barb ports
Temperature probe with PTFE seal
PTFE stirring blades, stainless steel rod with PTFE liner
Insulated hose with drain port & open/close valve x 2 Stainless steel hose barb adapter x 2
PTFE sealing tape
PTFE stirring rod positioner/bearing kit
Condenser dispenser connection kit
Large opening material feeding port kit
Bottom drain port sealing clamp
Rubber-wrapped condenser dispenser support and condenser bracket
Chilling fluid connector x 2, vacuum connector x 1
