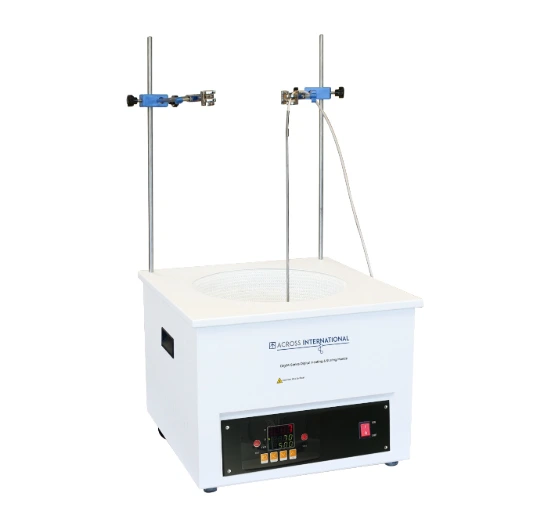

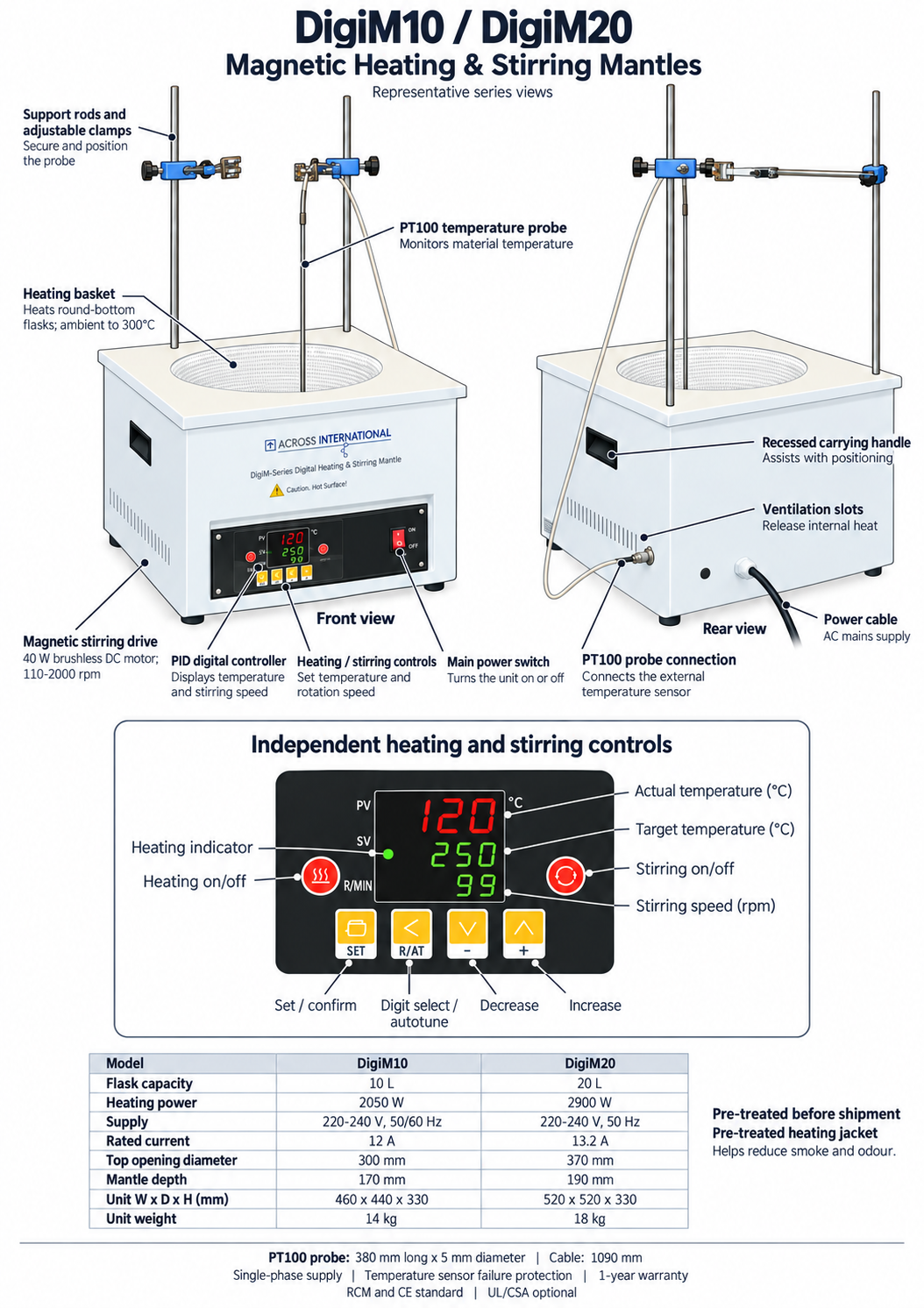

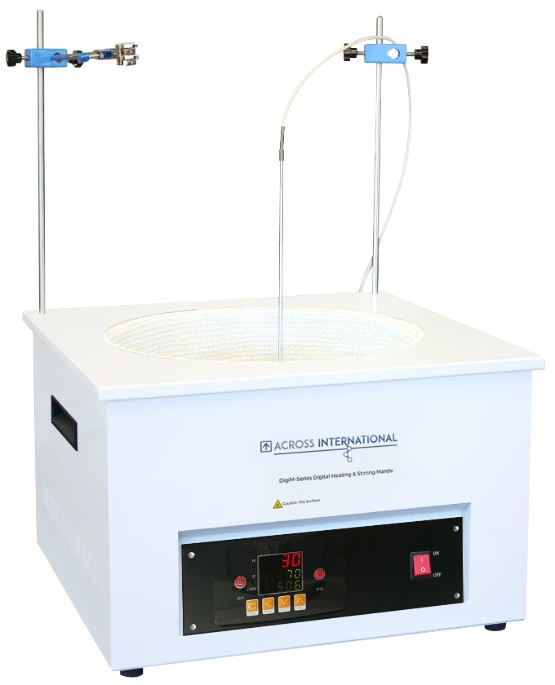

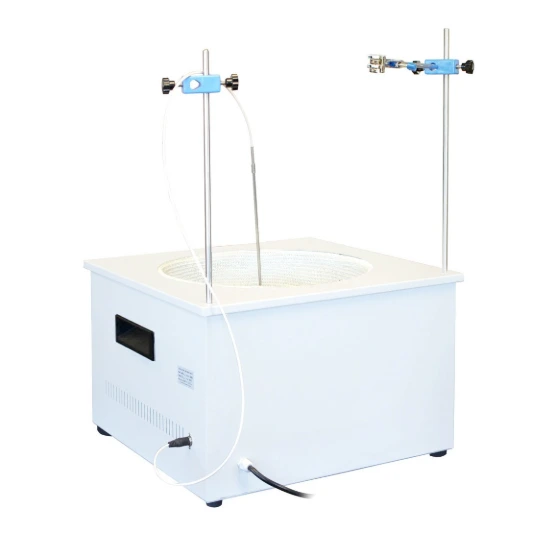

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
Model
DigiM10
DigiM20
Electrical requirements
220-240V 50/60Hz 1-Phase, 2050 watts, 12A
220-240V
50Hz 1-Phase, 2900 watts, 13.2 A
Heating
Ambient to 300°C
Ambient
to 300°C
Stirring
Min. speed: 110 rpm, max. speed: 2000 rpm Motor power: 40 watts Motor type: brushless DC motor
Min. speed: 110 rpm, max. speed: 2000
rpm Motor power: 40 watts Motor type: brushless DC motor
Controller
PID control with digital temperature and
rotation speed display
PID control with digital temperature
and rotation speed display
External thermocouple
Type: PT100 Cable length: 1090 mm Stainless steel probe length: 380 mm Stainless steel probe diameter: 5 mm
Type:
PT100 Cable
length: 1090 mm Stainless
steel probe length: 380 mm Stainless
steel probe diameter: 5 mm
Flask holder
Maximum flask capacity: 10 liters Top opening diameter: 300 mm Depth: 170 mm
Maximum flask capacity: 20
liters Top
opening diameter: 370 mm Depth:
190 mm
Dimensions (WxDxH)
Unit: 460 x 440 x 330 mm Shipping: 560 x 530
x 460 mm
Unit: 520 x 520 x 330 mm Shipping: 610 x 610 x 460 mm
Weight
Unit: 14 kg, shipping: 18 kg
Unit: 18 kg, shipping: 23 kg
Safety
Thermocouple failure protection
Thermocouple failure protection

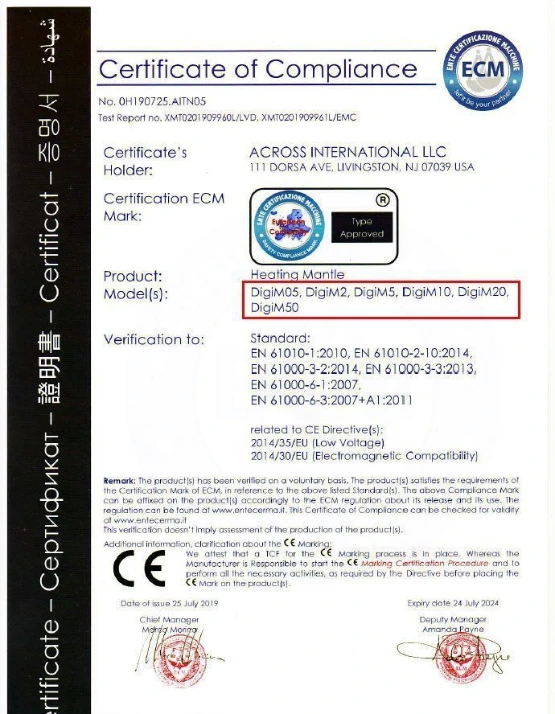

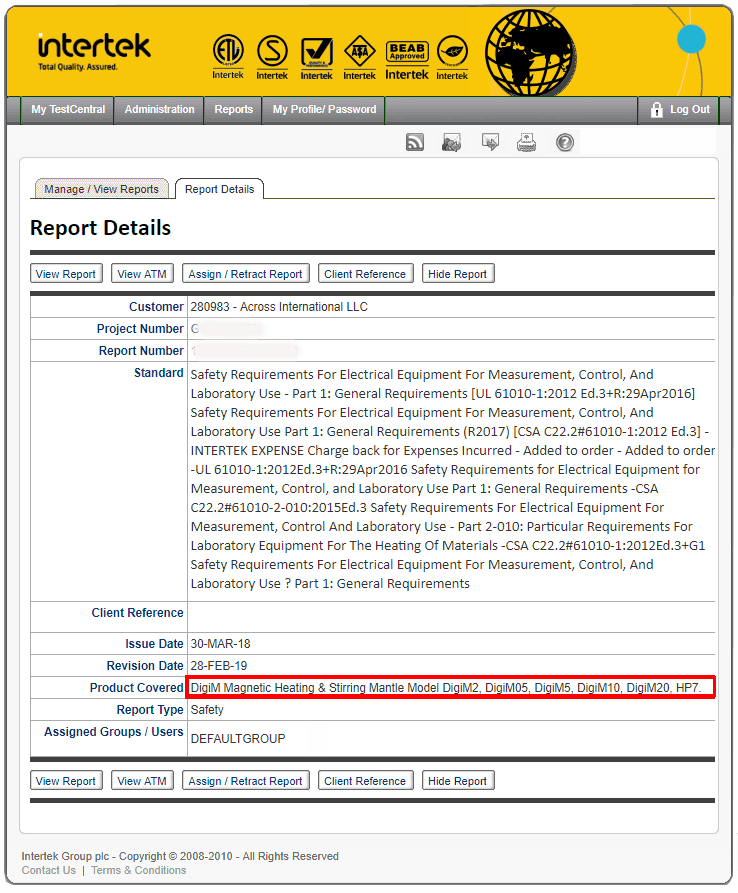

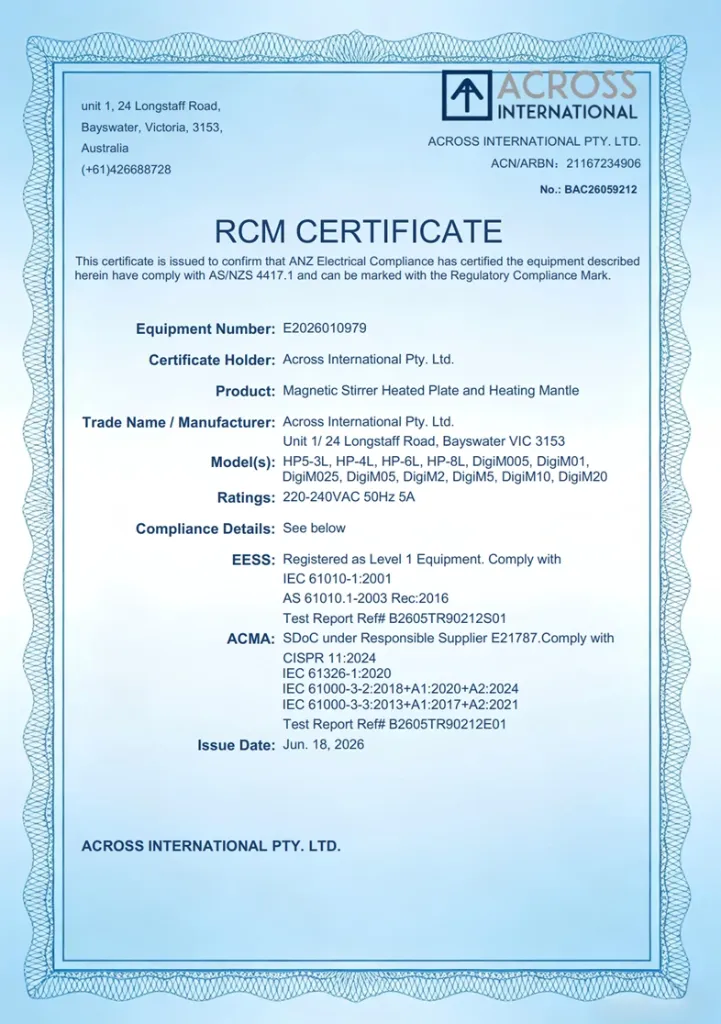

Certification
RCM (standard), UL/CSA (optional),
CE (standard)
RCM (standard), UL/CSA (optional), CE
(standard)
Warranty
One year
One year
