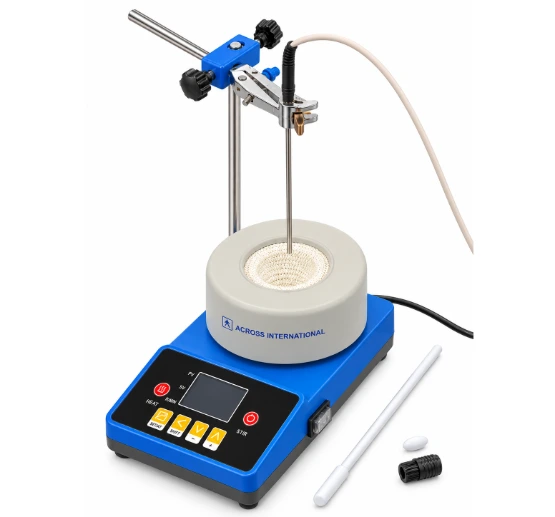

Ai DigiM 50-250mL 300°C 1500 RPM PID Controlled Heating Mantle

DigiM50 / DigiM100 / DigiM250 Magnetic Heating & Stirring Mantles

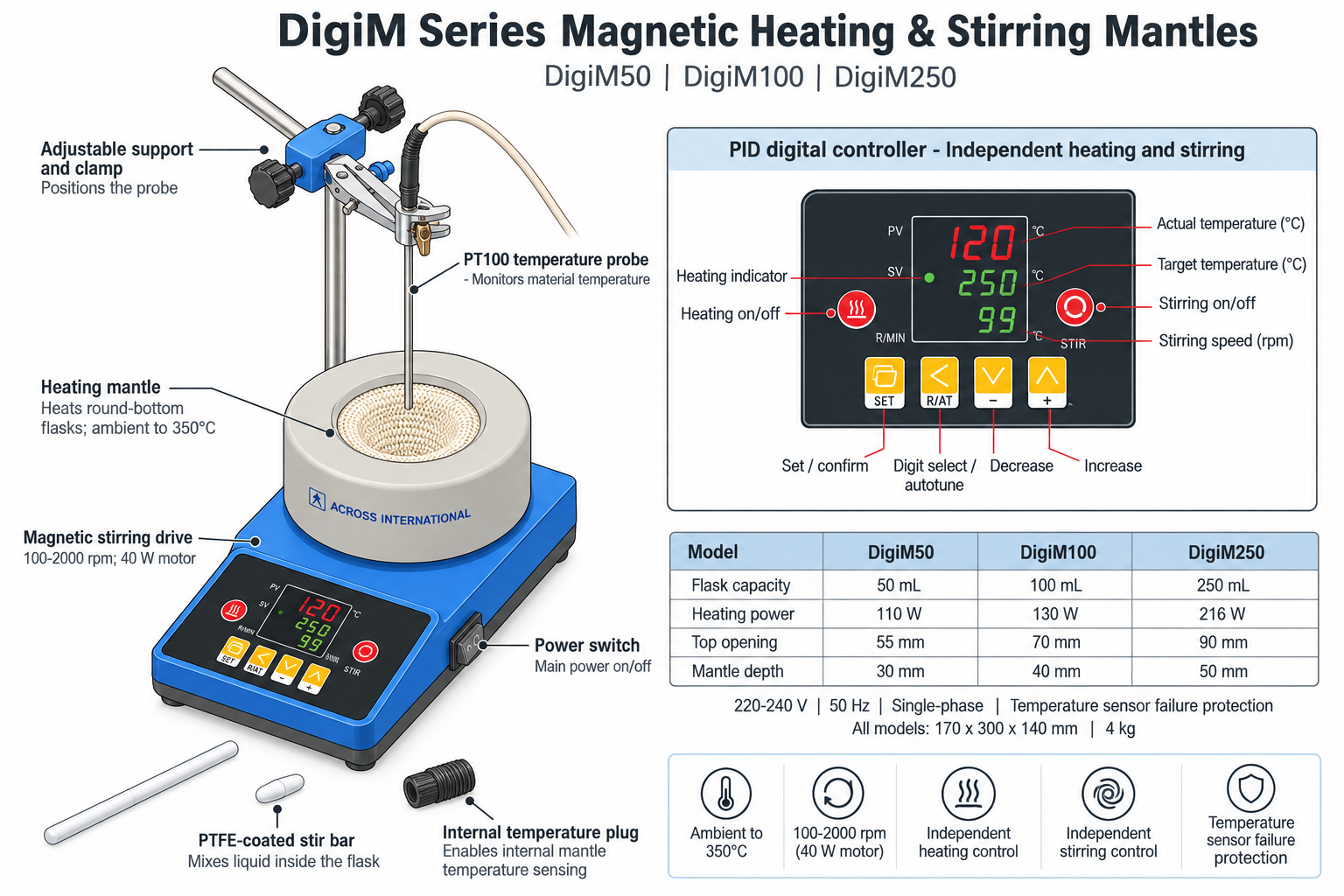

The Across International DigiM Series Magnetic Heating & Stirring Mantles combine precise heating and magnetic stirring in one compact benchtop unit. Available in 50 mL, 100 mL and 250 mL sizes, these models are ideal for small-volume laboratory heating, mixing and temperature-controlled applications.

Each mantle features PID temperature control with a digital display, providing clear readings of both temperature and stirring speed. The temperature can be controlled from ambient to 350°C, while magnetic stirring is adjustable from 100 to 2000 rpm.

An external PT100 stainless steel temperature probe allows direct monitoring and control of the material temperature inside the flask. The DigiM also supports internal mantle temperature sensing, allowing users to select the temperature measurement method best suited to their application.

Heating and stirring functions can be operated independently, providing greater flexibility for different laboratory processes. Built-in thermocouple failure protection adds an additional level of operational safety.

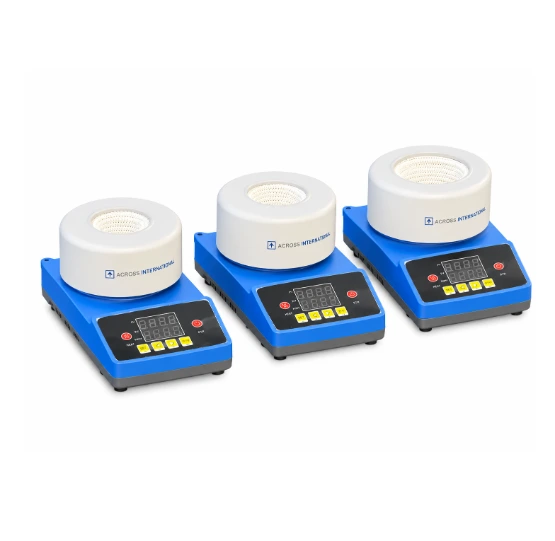

Three Sizes for Small-Volume Applications

Key Features

• Available in 50 mL, 100 mL and 250 mL
• Heating and magnetic stirring in one compact unit
• PID digital temperature control
• Temperature range from ambient to 350°C
• Adjustable magnetic stirring from 100–2000 rpm
• External PT100 stainless steel temperature probe
• Digital temperature and rotation speed display
• Independent heating and stirring operation
• Thermocouple failure protection
• Compact benchtop design

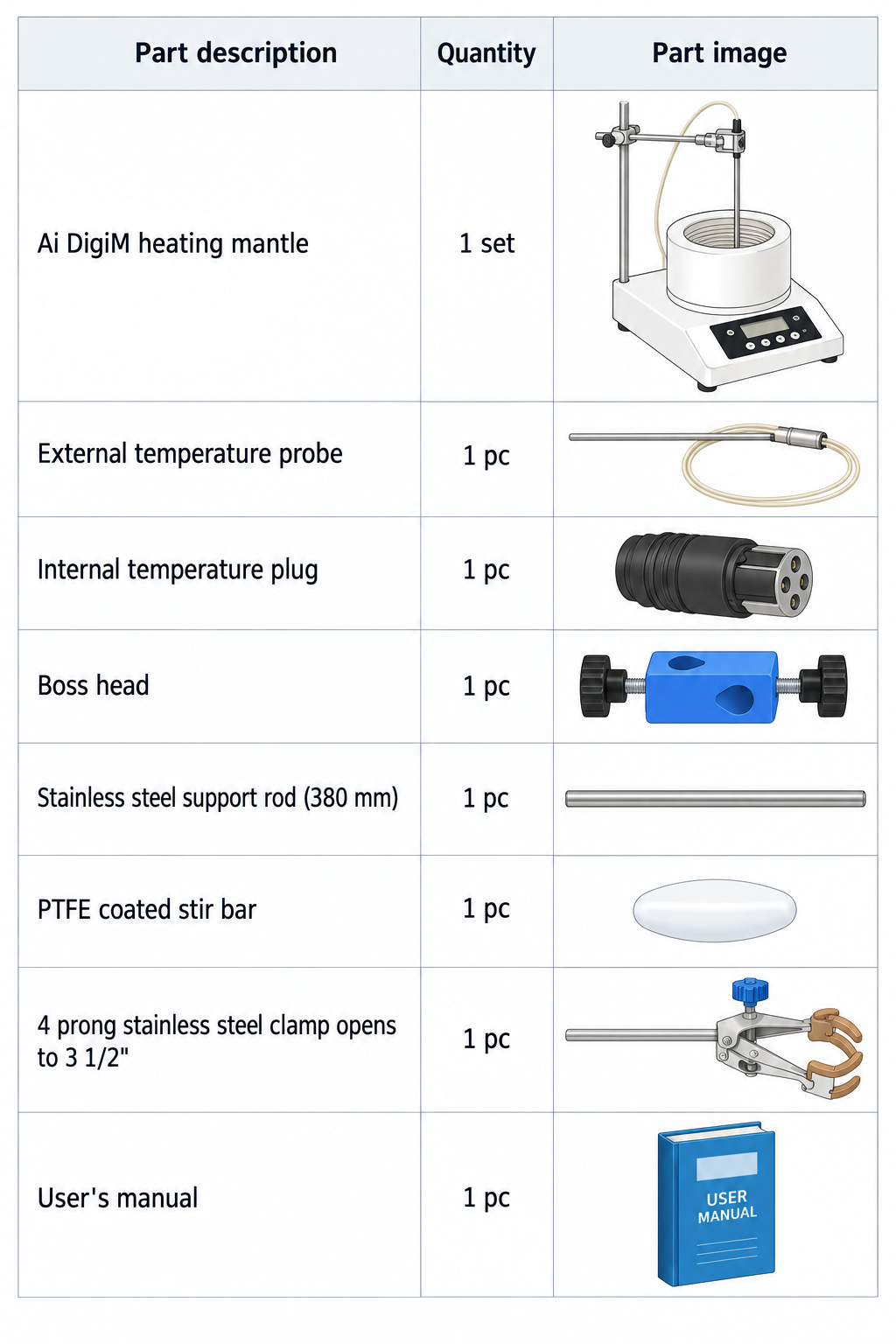

• Supplied with external temperature probe, internal temperature plug, support rod, boss head and PTFE-coated stir bar
