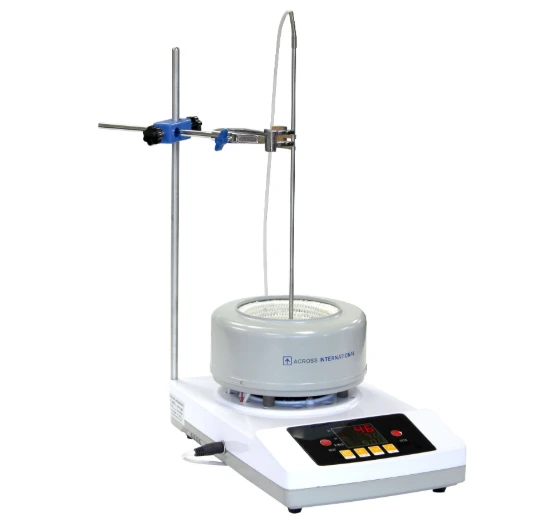

Ai DigiM 500mL / 2L / 5L 300°C 1500 RPM PID Controlled Heating Mantle

SKU# DigiM05 / DigiM2 / DigiM5

A$ 959.00 A$ 815.15 815.15 AUD

A$ 959.00

Excl. GST
  • Choose controller
  • Choose Model
Add to cart

Terms and Conditions

Please contact our friendly sales team for urgent orders.
Contact Us

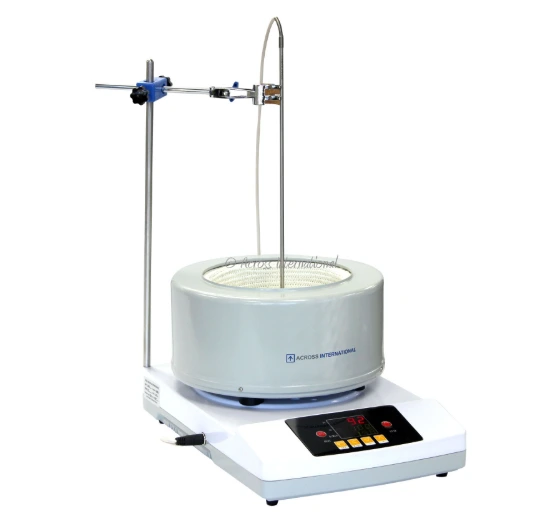

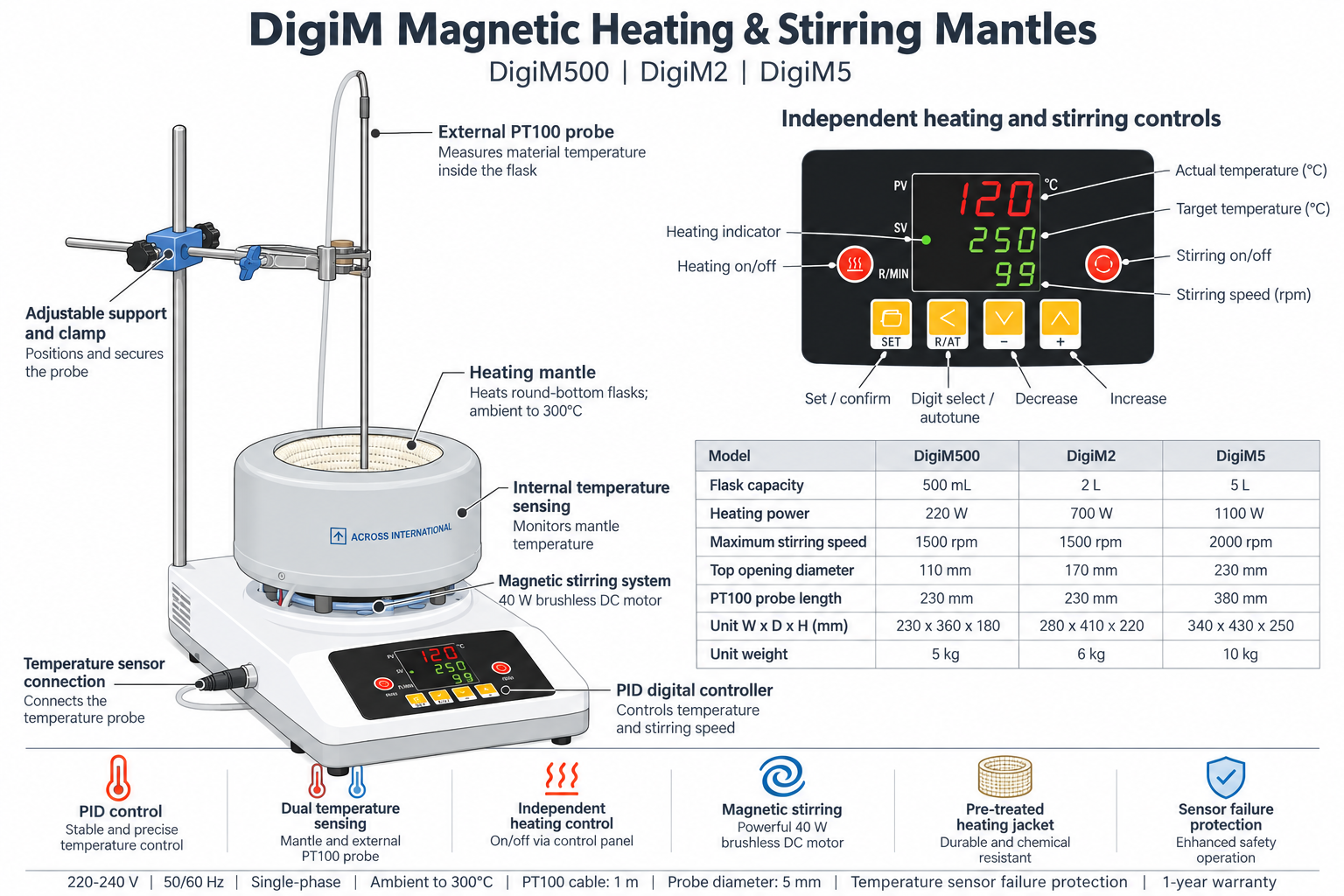

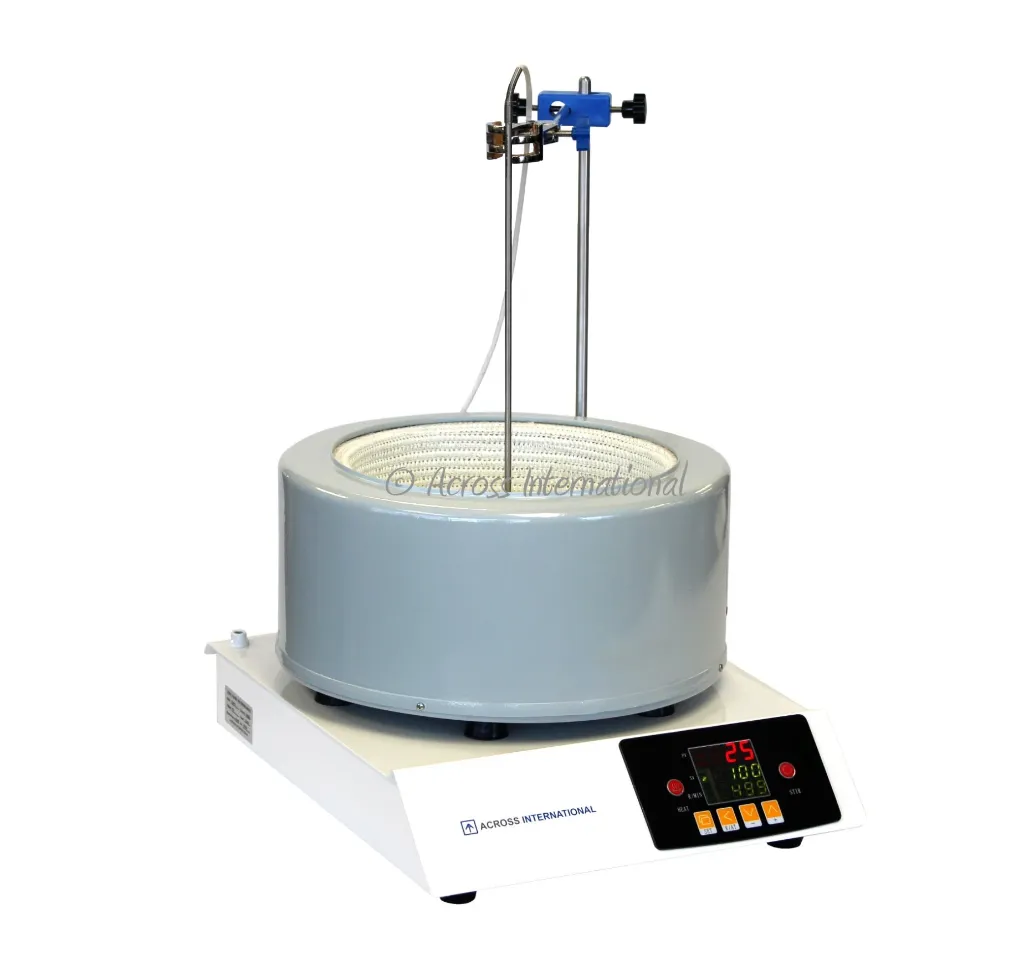

Ai DigiM 500mL / 2L / 5L plug and play magnetic stirring and heating mantle. Comes standard with digital display for accurate control, and large display numbers for easy temperature and rotation speed readings. Two sets of thermocouples allows you to detect heater or material temperatures. Heating jacket is treated before shipment, to prevent release of smoke and odor caused by heat into your working environment.



Model  DigiM05  DigiM2  DigiM5
 Electrical requirements  220-240V 50/60Hz 1-Phase, 220 watts, 3 A  220-240V 50/60Hz 1-Phase, 700 watts, 8 A  220-240V 50/60Hz 1-Phase, 1100 watts, 12 A
 Heating  Ambient to 300°C  Ambient to 300°C  Ambient to 300°C
 Stirring  Maximum speed: 1500 rpm
 Motor power: 40 watts
 Motor type: brushless DC motor		  Maximum speed: 1500 rpm
 Motor power: 40 watts
 Motor type: brushless DC motor		  Maximum speed: 2000 rpm
 Motor power: 40 watts
 Motor type: brushless DC motor
 Controller  PID control with digital temperature and rotation speed display  PID control with digital temperature and rotation speed display  PID control with digital temperature and rotation speed display
 External thermocouple  Type: PT100
 Cable length: 1 meter
 Stainless steel probe length: 230 mm
 Stainless steel probe diameter: 5 mm		  Type: PT100
 Cable length: 1 meter
 Stainless steel probe length: 230 mm
 Stainless steel probe diameter: 5 mm		  Type: PT100
 Cable length: 1 meter
 Stainless steel probe length: 380 mm
 Stainless steel probe diameter: 5 mm
 Flask holder  Maximum flask capaclity: 500 mL
 Top opening diameter: 110 mm
 Depth: 70 mm		  Maximum flask capaclity: 2 liters
 Top opening diameter: 170 mm
 Depth: 10 mm		  Maximum flask capaclity: 5 liters
 Top opening diameter: 230 mm
 Depth: 140 mm
 Dimensions (WxDxH)  Unit: 230 x 360 x 180 mm
 Shipping: 510 x 330 x 310 mm		  Unit: 280 x 410 x 220 mm
 Shipping: 510 x 360 x 330 mm		  Unit: 340 x 430 x 250 mm
 Shipping: 510 x 410 x 410 mm
 Weight  Unit: 5 kg, shipping: 7 kg  Unit: 6 kg, shipping: 11 kg  Unit: 10 kg, shipping: 15 kg
 Safety  Thermocouple failure protection  Thermocouple failure protection  Thermocouple failure protection
 Warranty  One year  One year  One year
