Introducing the new 5-shelf Ai AccuTemp 210 litres vacuum ovens, come standard withstainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, andtwo year warranty. With our internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in Melbourne before leaving our warehouses.
All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.

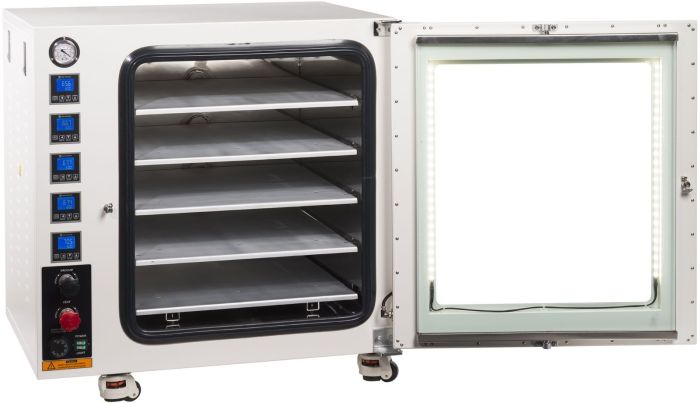

Five aluminum heating shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
3rd gen low proportional gain temperature controllerskeep your oven temperature within +/- 0.5°C accuracy, ineither °F or °C.
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
Dual layer observation window with 20mm tempered safety glass.
76mm thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
Built-in check valve prevents vacuum oil back flow.
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
Built-in station-able swivel casters with locks for ultra-portability.
For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
All ovens shipped from our Melbourne location for quick delivery, come with one year warranty and lifetime AU-based parts and service support
Manufactured in accordance with
ISO 12100-1:2003, ISO 12100-2:2003
EN1050:1996, EN294:1992, EN60204-1:2006
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
220-240V +/-10% 50/60Hz 1-PH 6.8A, 1500 watts Heaters: 300 watts x 5, built into 5 aluminum shelves, for the fastest, most energy effcient and uniform heating.
Size: 560 x 600 x 640 mm Material: Stainless steel Capacity: 210 litres
Controller: 3rd gen low proportional gain, microcomputer PID controlled with LCD display Range: 50 to 250°C Display units: Fahrenheit or Celsius Accuracy: +/- 0.5°C Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 38°C: 15 minutes Warm-up time to 250°C: 1 hours 30 minutes
Ultimate vacuum level: better than 500 microns / 0.066 kPa Ultimate vacuum level with AI SuperVac vacuum pump: 46.8 microns / 0.00625 kPa (may vary based on your altitude, click here to learn more) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: 3/8" hose barb x 1
Unit: 185 kg, shipping: 285 kg
Unit: 890 x 790 x 970mm Shipping: 970 x 890 x 1090mm
Heated shelves: 5 non-removalbe aluminum shelves, 560 x 590mm (WxD) each Optional stackable aluminum shelves: 560 x 590 x 60mm (WxDxH) Total area without stackable shelves: 13000 x 130 = 1,650,000 mm2 (1.65 m2)
Total area with 5 stackable shelves: 13000 x 250 = 3,300,000 mm2 (3.3 m2) Distance between shelves (without stackable shelves): 110 mm Distance between shelves (with 5 stackable shelves): 60 mm
