Alumina Thermal Plate w/ footings for Muffle Furnaces

SKU# ATP

Excl. GST

This combination does not exist.

SKU # : ATP

These set of thermal plates are recommended for operation under 1750°C (3180°F), they can be used with our thermal

blocks to form a rack inside a muffle furnace, so that you can place samples not only on the bottom of the furnace,

but also on the rack.

(Image of building a 3-layer chamber for Ai CF series 400x300x300mm muffle furnace)

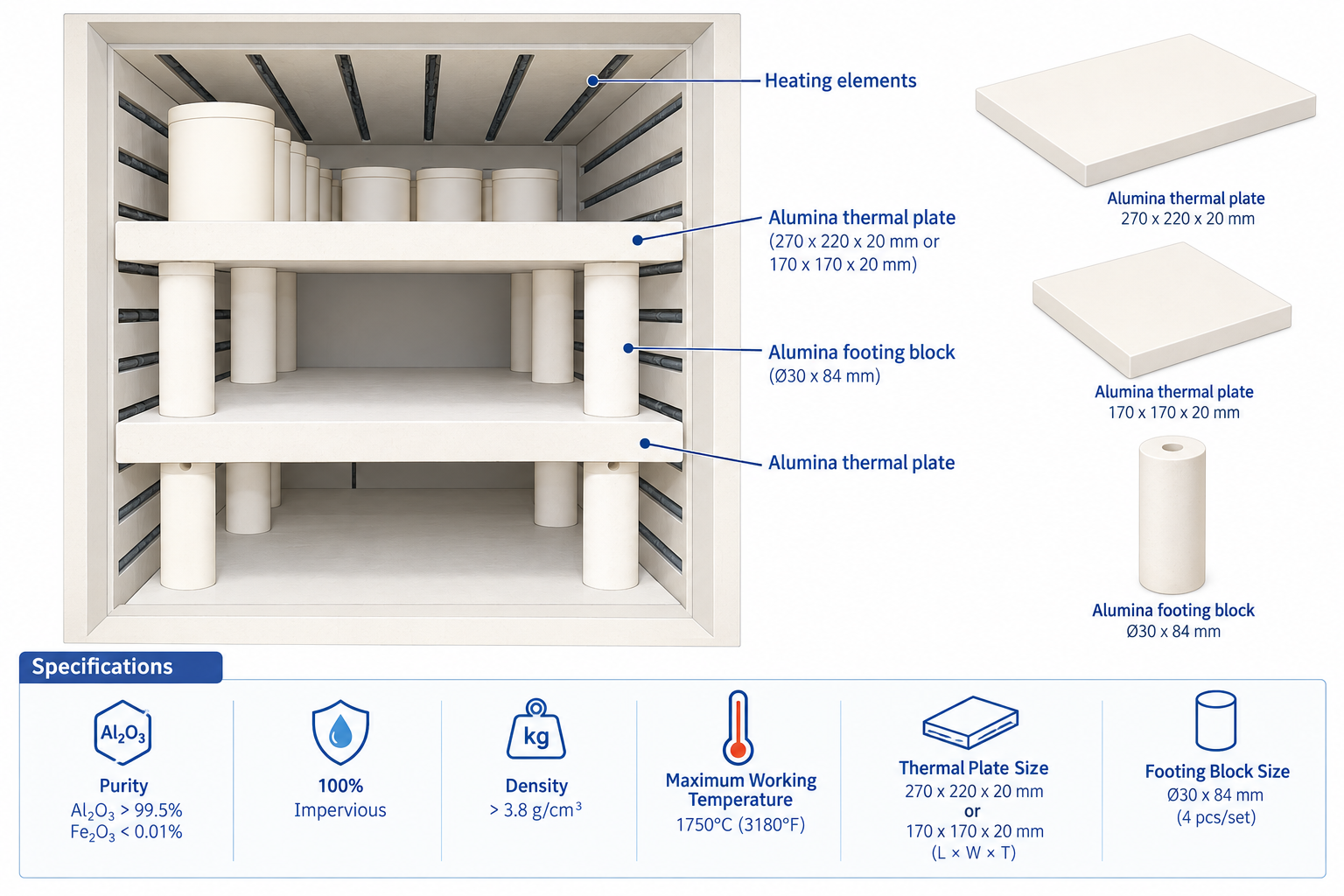

Specifications

Actual dimension for the plate: 270 x 220 x 20 mm or 170 x 170 x 20 mm (length x width x thickness)
Purity: Al2O3 > 99.5%; Fe2O3 < 0.01%
100% impervious
Density: >3.8 g/cm3
Maximum working temperature: 1750°C or 3180°F
4 Alumina footing blocks: high quality alumina ceramic (Al2O3) thermal blocks (Ø30 x 84 mm) for high temperature furnaces.
