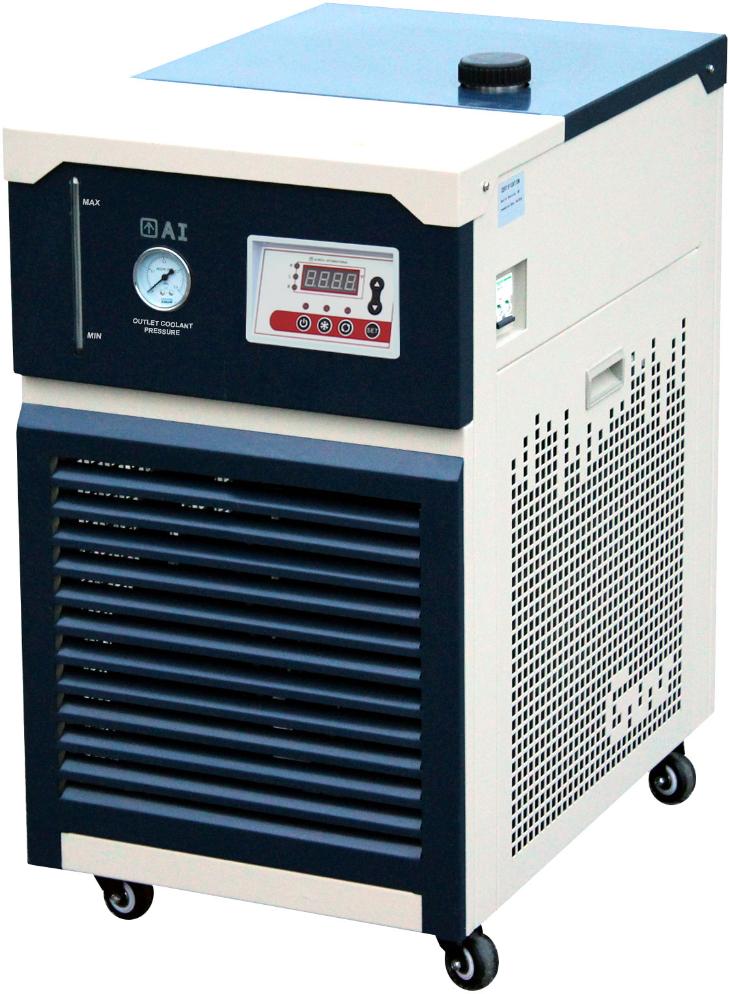

Ai -30°C 17L Recirculating Chiller with 20L/Min Centrifugal Pump
SKU# C30-17-10L
SKU # :
C30-17-10L
Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -30°C/-22°F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C30 circulating chiller features
- No dry ice or liquid nitrogen needed
- Advanced PID digital temp controller
- Built-in chilling fluid filter protects the recirculating pump and prevent blockage
- All steel construction for durability
- Cost saving as the water consumption is completely eliminated
- Built-in casters for mobility
- Plug and play, no assembly required
Specifications
| Model | C30-17-10L |
| Electrical requirements | 220-240V 50/60Hz 1-PH, 1200 watts |
| Compressor | Make: Panasonic Power: 220-240V 50/60Hz 1-Phase Number of compressor: One Refrigerant: R410A |
| Cooling capacity (assuming working environment is 25°C/77°F) | @ 32°F/0°C: 1750W @ 14°F/-10°C: 1100W @ -4°F/-20°C: 700W @ -22°F/-30°C: 300W |
| Reservoir | Capacity: 17 liters Material: Type 304 stainless steel Chilling fluid connection: 3/8" hose barb x 2 |
| Recirculating pump | Pump type: Centrifugal Output: 100 watts Pumping speed: 20L/min Maximum head: 6 meters Pressure: 5.8 psi |
| Coolant outlet pressure | Displayed on the built-in mechanical pressure gauge |
| Temperature controller | Range: ambient to -30°C Accuracy: +/- 2°C Type: Digital microprocessor PID controlled Range: -30°C to Ambient Display unit: Celsius °C |
| Tempeature sensor type | Pt100 |
| Housing | Powder coated type 42 stainless steel |
| Recommended coolant | For 50°F/10°C or higher: distilled water. Between 10°C and -30°C: 50% ethylene glycol + 50% distilled water |
| Built-in swivel casters | Four |
| Safety | Compressor over-temp protection Short circuit and ground protection Over-current protection |
| Dimensions (WxDxH) | Unit: 670 x 460 x 780 mm Shipping: 810 x 580 x 1020 mm |
| Unit weight | 80 kg |
| Recommended for | Ai SolventVap 10L rotary evaporators |
