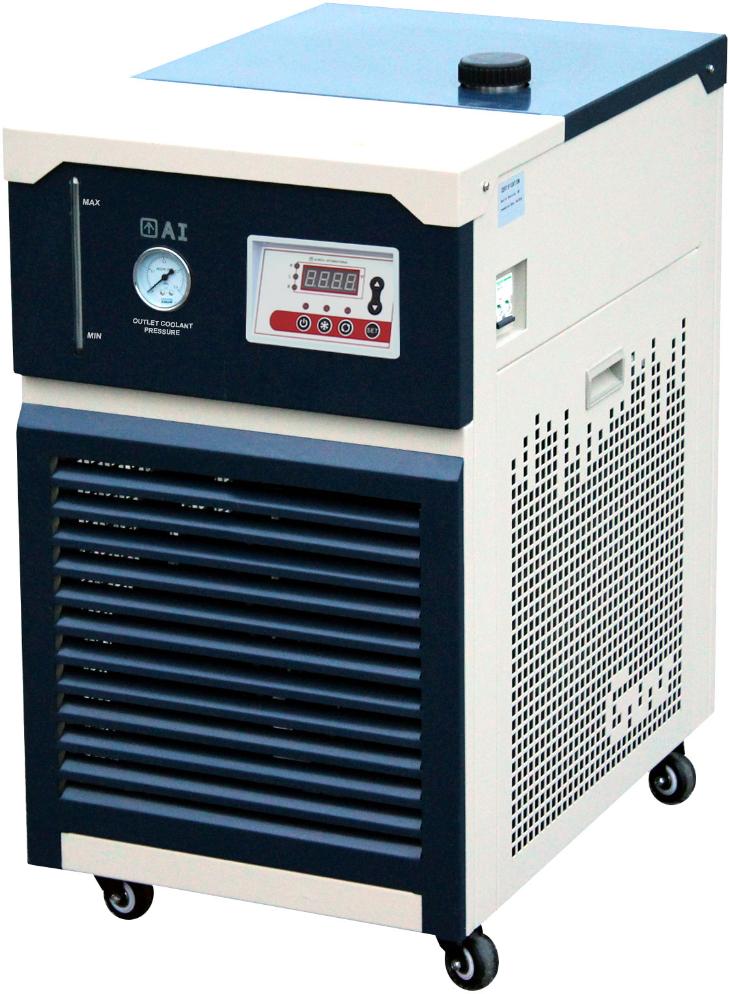

Ai -30°C 40L Recirculating Chiller with 30L/Min Centrifugal Pump

https://www.acrossinternational.com.au/web/image/product.template/460/image_1920?unique=4c10275

SKU# C30-40-50L

A$ 19,900.00 A$ 19,900.00 19900.0 AUD

A$ 19,900.00

Excl. GST

    This combination does not exist.

    Contact Us

    SKU # : C30-40-50L

    Terms and Conditions


    Ai C30-40 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

    Ai C30-40 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.

    IMPORTANT! -30°C ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).

    C30-40 circulating chiller features

    • UL 61010-1 and CSA C22.2 certified (optional)
    • No dry ice or liquid nitrogen needed
    • Advanced PID digital temp controller
    • Built-in chilling fluid filter protects the recirculating pump and prevent blockage
    • All steel construction for durability
    • Cost saving as the water consumption is completely eliminated
    • Built-in casters for mobility
    • Plug and play, no assembly required

    Specifications

     Model C30-40-50L
     Electrical requirements
    		 380-415V 50Hz 3-PH 5.5A, 3960 watts
     Compressor Make: KK
     Power: 380-415V 50Hz 3-PH
     Number of compressor: One
     Refrigerant: R404A (3.2 kgs)
     Cooling capacity (assuming
     working environment is
     25°C or 77°F)
    		 @ 0°C:       5000W
     @ -10°C:    3000W
     @ -20°C:    1800W
     @ -25°C:   1000W
     Reservoir
    		 Capacity: 40 liters
     Dimensions: 440 x 440 x 240 mm
     Material: Type 304 stainless steel
     Chilling fluid connection: 3/4" NPT
     Drain port: 1/2" NPT
     Overflow port: 3/8" hose barb
     Recirculating pump Pump type: Centrifugal
     Model: 25PLBR30-10
     Pumping speed: 30L/min
     Power: 280W
     Pressure: 1 bar
     Radiator Fan motor
          Make: Boyoung
          Model: YWF4E-400
          Power: 380-415V 50Hz 3-PH 300W
          Rotation speed: 1550 rpm
          Flow rate: 4240 m3/hour
     Cleaning
      Clean radiator fins with a fin comb every three months
     Coolant outlet pressure Displayed on the built-in mechanical pressure gauge
     Temperature controller Temperature range: -30°C to ambient-5°C
     Accuracy: +/- 2°C
     Type: Digital microprocessor PID controlled
     Range: -30°C to Ambient
     Display unit: Celsius °C
     Tempeature sensor type Pt100
     Housing Powder coated type 42 stainless steel
     Recommended coolant
    		 For 10°C or higher: distilled water.
     Between 10°C and -30°C: 50% ethylene glycol + 50% distilled water
     Built-in swivel casters
    		 Four
     Safety Compressor over-heat protection
     Short circuit and ground protection
     Over-current protection
     Over-voltage protection
     Unit/shipping weight 166 kg / 218 kg
     Unit/shipping dimensions 1020 x 640 x 1040 mm / 1170 x 760 x 1300 mm (DxWxH)
     Recommended for
    		 Ai SolventVap 50L rotary evaporators and 20L jackted reactors
     Warranty One year
     Compliance CSA C22.2#61010-1 :2012 Ed.3
     Download Product brochure


    Standard package

     Part description

     Quantity

    Part image

     Ai C30 -30°C 40L capacity recirculating chiller
    		1 pc
     3/8" insulated chilling fluid tubing
    		3 meters
     1/2" NPT to 3/8" barb connector with on/off valve
    		3 pcs

     3/4" NPT to 1/2" NPT adapter2 pcs
     PTFE sealing tape1 pc
     User's manual1 pc
