  2. 1100°C 1.3L Compact Muffle Furnace w/ 30-Seg PID Control

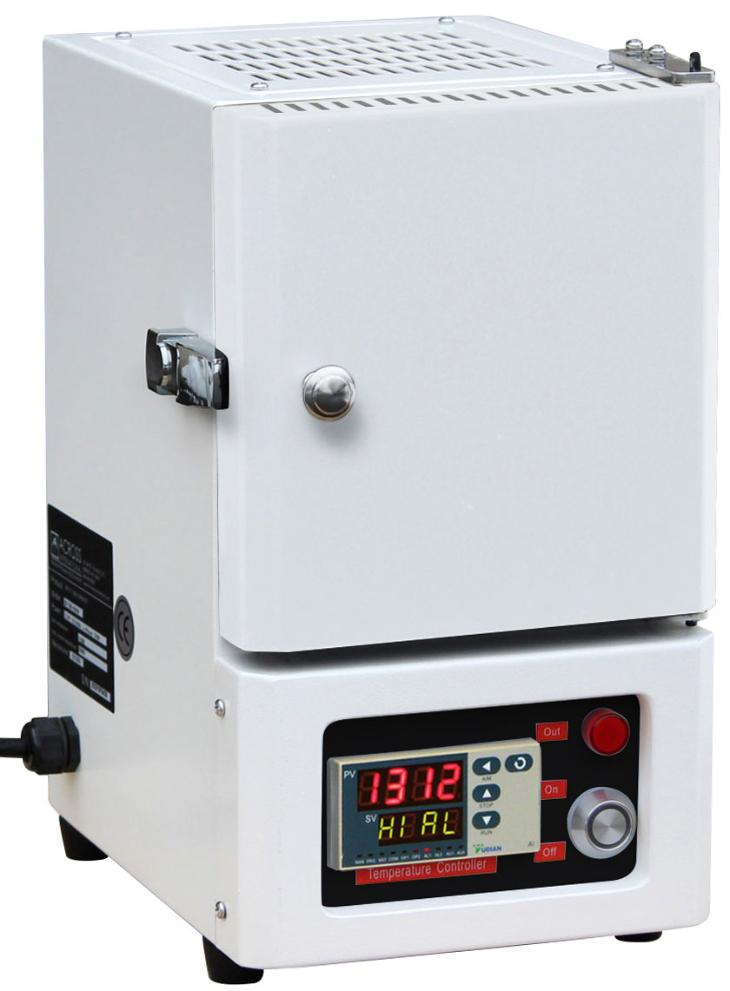

1100°C 1.3L Compact Muffle Furnace w/ 30-Seg PID Control

https://www.acrossinternational.com.au/web/image/product.template/342/image_1920?unique=e6a2bd9

SKU# CF1100

A$ 1,790.00 A$ 1,790.00 1790.0 AUD

A$ 1,790.00

Excl. GST

    This combination does not exist.

    Contact Us

    SKU # : CF1100

    Terms and Conditions


    CF1100 1.3L compact muffle furnaces with 30 segments programmable up to 1100C. Great for small sample heating in research or dental labs. They can also be easily placed inside a glove box if desired. All our furnaces are CE compliant.

    Please note: Wire heating element DOES NOT have warranties. We test all our furnaces before shipment. If you believe there are imperfections, please contact us.





    Specifications



     Electrical requirements AC 220-240V 50hz 1200 watts
     Chamber dimensions (DxWxH) 1.3L - 130 x 100 x 100 mm
     Chamber usable space (DxWxH) 130 x 100 x 85 mm (with cushion block)
     Min. working temperature Ambient
     Max. working temperature
    		 1100°C
     Max. constant working temperature 1000°C
     Refractory lining
    		 Mitsubishi (Japan) 1500 grade fiber alumina
     Heating element
    		 Resistance coil wire
     Thermocouple type
    		 K
     Temperature controller UDIAN 30-segment, single PID
     Max heating rate
    		 30°C / min
     Temperature accuracy
    		 +/- 1°C
     Unit dimensions (DxWxH) 250 x 200 x 380 mm
     Shipping dimensions (DxWxH) 380 x 360 x 530 mm
     Unit weight
    		 13 KG
     Shipping weight 24 KG
     Download

     Product brochure


    Standard package





    Part description





      Quantity





    Part image



     CF1100 muffle furnace
    		 1 pc
     Type K thermocouple
    		 1 pc

     Thermal gloves 1 pair

     Thermal cushion block (90x90x20mm)
    		1 pc
     Crucible tongs1 pc
     Users manual 1 pc
