SKU # :
ChemVac2

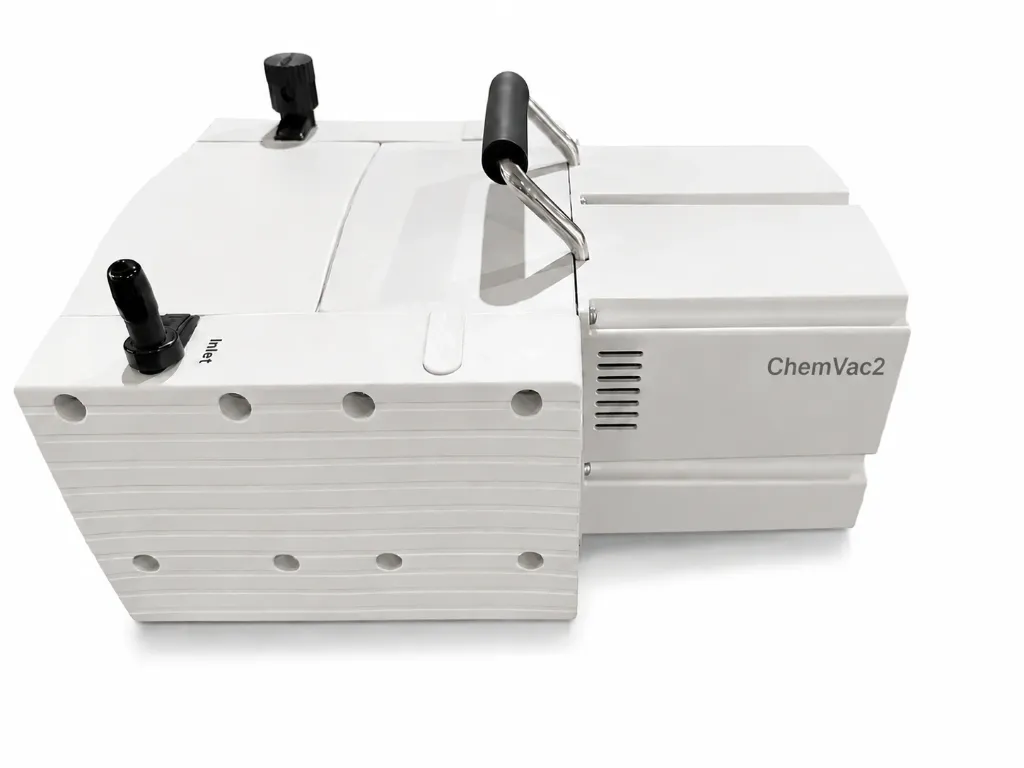

ChemVac2 Chemical-Resistant Diaphragm Vacuum Pump
The ChemVac2 Chemical-Resistant Diaphragm Vacuum Pump is designed for laboratory applications requiring a reliable, oil-free vacuum source with excellent resistance to corrosive gases and vapours.
With a pumping speed of up to 2.4 cfm or 4 m³/h and an ultimate vacuum of ≤2 mbar or 200 Pa, the ChemVac2 provides stable vacuum performance for a wide range of laboratory processes, including vacuum drying, vacuum distillation, rotary evaporation, vacuum concentration and solid-phase extraction.
The pump's compact design, chemical-resistant gas-contact materials and ability to operate continuously for extended periods make it well suited to demanding laboratory environments.
Key Features
- 2.4 cfm or 4 m³/h pumping speed
- Ultimate vacuum 2 mbar or 200 Pa
- Stable vacuum performance with adjustable pumping speed
- Excellent resistance to chemical corrosion
- Oil-free diaphragm pump design
- Suitable for continuous operation over extended periods
- Compact and space-saving design
- Easy to operate, maintain and service
- Automatic motor malfunction protection
- Chemical-resistant materials throughout the gas-contact path
- High-quality key components for reliable and stable operation
Excellent Chemical Resistance
The ChemVac2 is designed specifically for applications involving potentially corrosive gases and vapours. Critical components that come into contact with the pumped medium are manufactured from highly chemical-resistant materials including PTFE, FFKM, ECTFE and PVDF.
The diaphragm uses a PTFE sandwich structure, while the inlet and outlet components are constructed from PTFE. This helps provide excellent resistance to a broad range of laboratory chemicals while minimizing contamination of the vacuum process.
As an oil-free diaphragm vacuum pump, the ChemVac2 eliminates the need for vacuum pump oil and helps reduce oil contamination and routine oil-related maintenance.
Designed for Continuous Laboratory Operation
The ChemVac2 is designed for extended continuous operation, making it suitable for laboratory processes that require a stable vacuum source over long operating periods.
Its compact footprint of only 335 × 250 × 185 mm also makes it easy to integrate with existing laboratory equipment where bench space is limited.
Applications
The ChemVac2 Chemical-Resistant Diaphragm Vacuum Pump is suitable for a variety of laboratory vacuum applications, including:
- Vacuum drying
- Vacuum distillation
- Rotary evaporation
- Vacuum concentration
- Centrifugal acceleration
- Solid-phase extraction
- Laboratory filtration
- General laboratory vacuum applications involving corrosive gases or vapours
Technical Specifications
Materials in Contact with Pumped Medium
| Component | Material |
|---|---|
| Exhaust Valve Plate | FFKM |
| Diaphragm | PTFE sandwich structure |
| Air Inlet / Outlet | PTFE |
| Pipe Fittings | PTFE / PVDF |
| Intake Disc | Carbon-fibre-reinforced ECTFE |
| Cavity & Diaphragm Clamping Disc | Hard anodised with PTFE treatment |
Why Choose the ChemVac2?
Combining an ultimate vacuum of ≤200 Pa, 2.4 cfm pumping capacity, adjustable speed control and highly chemical-resistant wetted materials, the ChemVac2 provides a practical vacuum solution for laboratories handling corrosive vapours.
Its oil-free operation also makes it particularly suitable for use with vacuum ovens, rotary evaporators and other laboratory vacuum systems where clean operation, chemical resistance and reduced maintenance are important.
