Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
PTFE 14/20 and 24/40 thermo inlet adapters with Viton gaskets
Ai Heavy wall glassware for durability
Vacuum jacketed vapor channel
Boiling flask to distillation port: 34/45 joint
Thermo port on boiling flask: 24/40 joint
Thermo port on distillation head: 14/20 joints
Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb
Glass material: high borosilicate glass 3.3
Optional T1 or T40 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it
Shipping dimensions and weight: 740 x 580 x 330 mm, 9 kg.
Warranty: Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

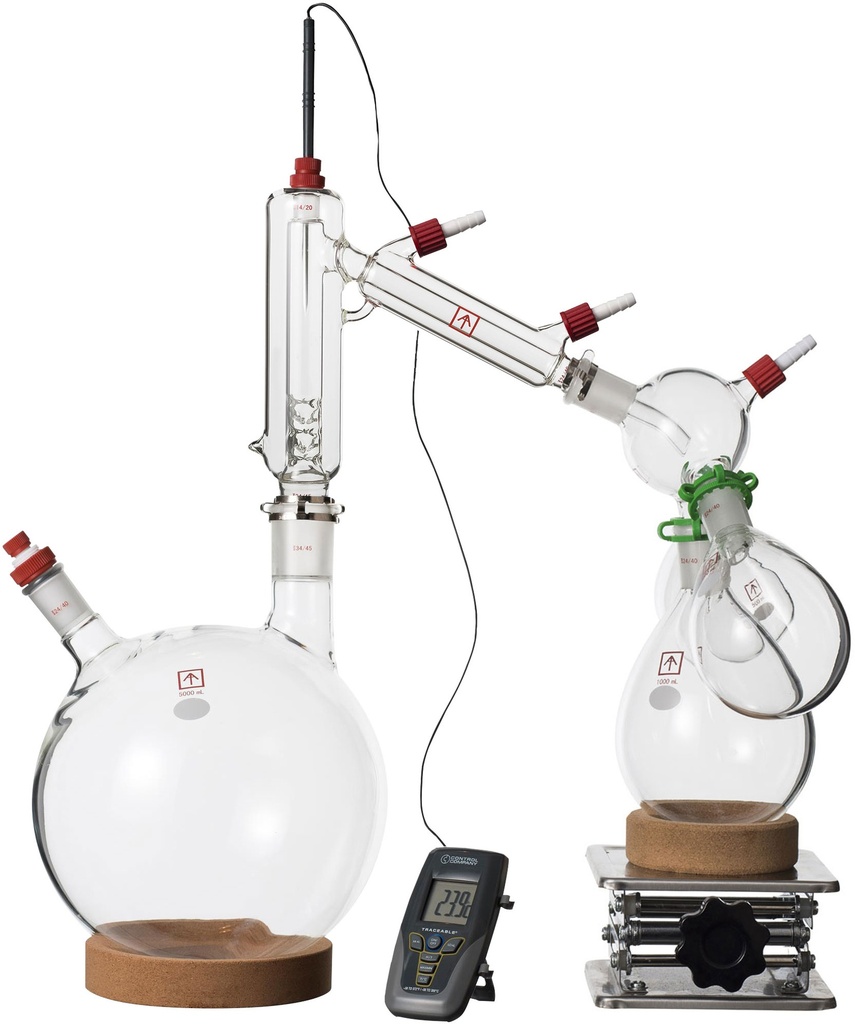

Clear5 Standard Package
Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port
Ai 24/40 & 34/45 joints, heavy wall round bottom 2-neck flask with one vertical center neck and one angled side neck
PTFE 24/40 joint thermometer inlet adapter with Viton gasket
Ai 24/40 joint, pennyhead glass stopper
Ai 24/40 joint, round-top glass feeding funnel
Ai 250mL distribution adapter with one 24/40 receiving flask connector and one 3/8" vacuum port
Ai 250mL distribution adapter with three 24/40 receiving flask connectors and one 3/8" vacuum port (can be swapped with a single cow)
Ai 24/40 joint, heavy wall 1000mL pear-shaped receiving flask
Ai 24/40 joint, heavy wall 500mL pear-shaped receiving flask
Ai glass 3/8" hose barb tee adapter
34/45 joint, stainless steel keck clip
24/40 joint, stainless steel keck clip
24/40 joint, plastic keck clip
Cork ring stand (5L x 1, 1L x 1)
150 x 150 mm stainless steel lab jack (min. height 80 mm, max height 240 mm)
Dow Corning high vacuum grease 150 gram
Traceable Kangaroo digital thermometer
