SKU # :
CV-ES

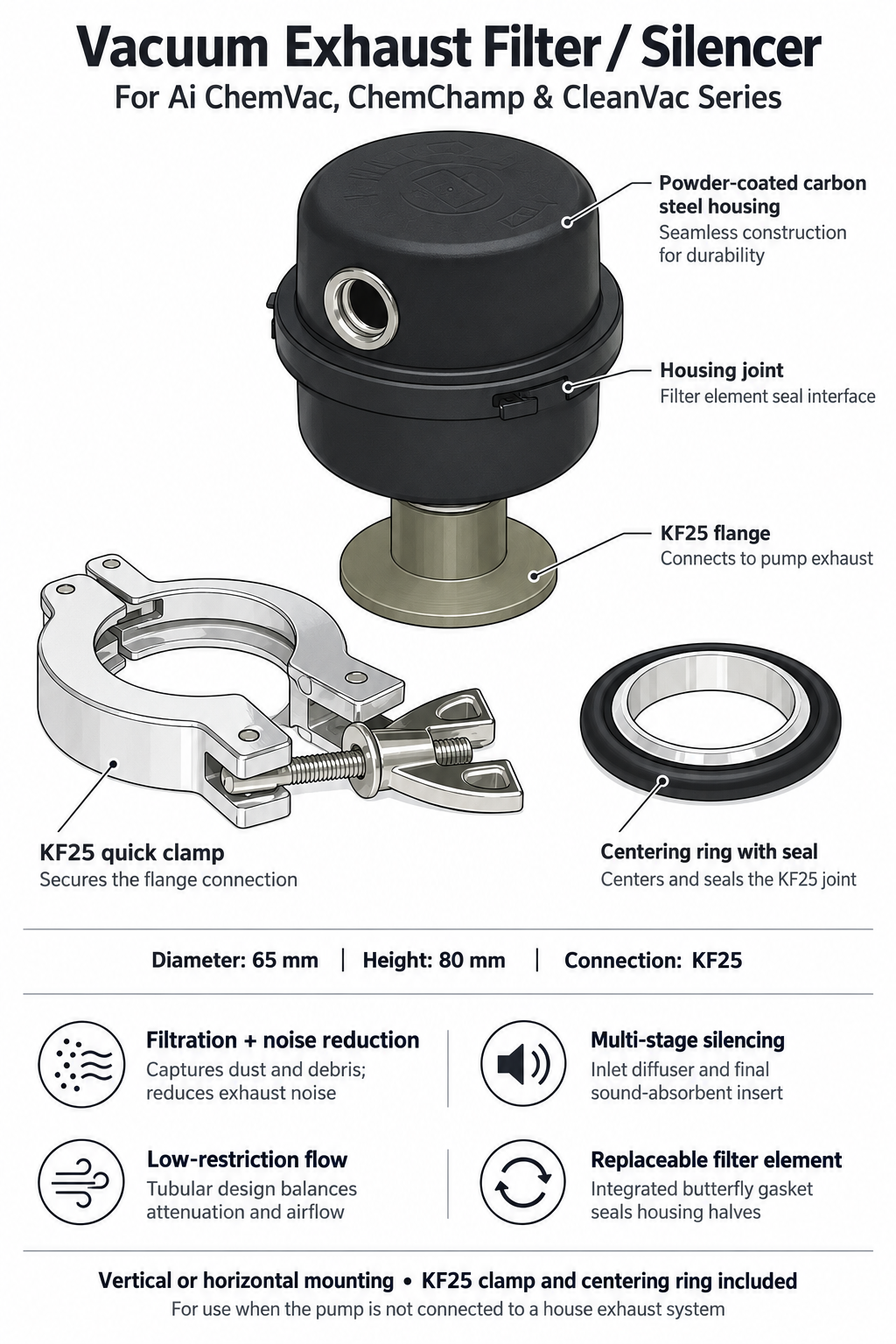

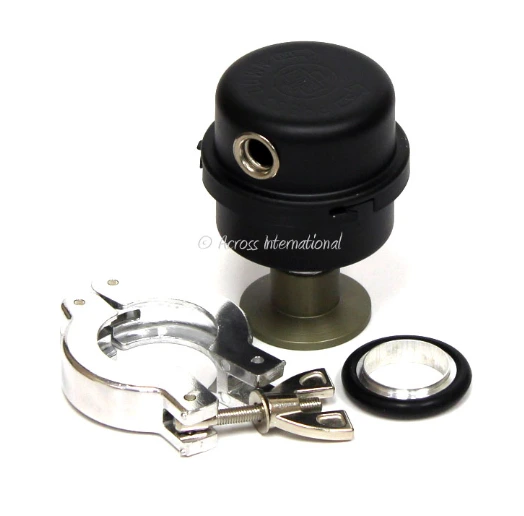

Vacuum pump exhaust filter/silencer for Ai ChemVac, ChemChamp and CleanVac series dry scroll pumps, when they are not connected to a house exhaust system. These silencers also offer exhaust filtration. Comes with a KF25 quick clamp and centering ring.
Features
- Compact design combines both filtration efficiency and noise reduction
- Integrated inlet diffuser optimizes sound attenuation
- Multi-stage noise reducing features including final stage sound absorbent insert
- Tubular silencing design - tube is positions to maximize attenuation and air flow while minimizing pressure drop
- High grade element with built-in butterfly gasket seal which creates positive seal between housing hemispheres and a new seal with each element
- Seamless drawn housings - no welds to rust or vibrate apart
- Durable carbon steel construction with black powder coated finish
- Ability to mount vertically or horizontally
Specifications
- Diameter: 65 mm
- Height: 80 mm
- Connection type: KF25 flange
Applications
- Dry Scroll, Piston, Vane and Venturi Vacuum Pumps
- Prevent tip seal dust and debris from contaminating the environment
- Silence irritating pump exhaust noise
