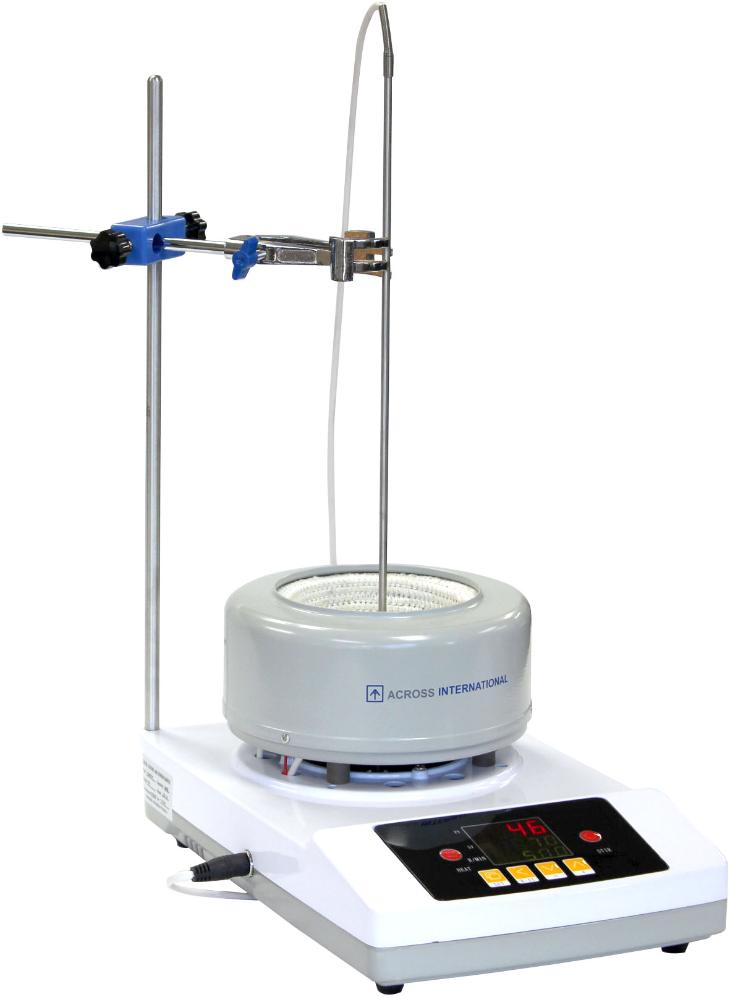

Ai DigiM 500mL plug and play magnetic stirring and heating mantle. Comes standard with digital display for accurate control, and large display numbers for easy temperature and rotation speed readings. Two sets of thermocouples allows you to detect heater or material temperatures. Heating jacket is treated before shipment, to prevent release of smoke and odor caused by heat into your working environment.
220-240V 50/60Hz 1-Phase, 220 watts, 3 A
Ambient to 300°C
Maximum speed: 1500 rpm Motor power: 40 watts Motor type: brushless DC motor
PID control with digital temperature and rotation speed display
Type: PT100 Cable length: 1 meter Stainless steel probe length: 230 mm Stainless steel probe diameter: 5 mm
Maximum flask capaclity: 500 mL Top opening diameter: 110 mm Depth: 70 mm
Unit: 230 x 360 x 180 mm, shipping: 510 x 330 x 310 mm
Unit: 5 kg, shipping: 7 kg
Thermocouple failure protection
Ai DigiM 500mL heating mantle
External temperature probe
Internal temperature plug
Stainless steel support rod (380 mm)
PTFE coated stir bar
4 prong stainless steel clamp opens to 3 1/2"
