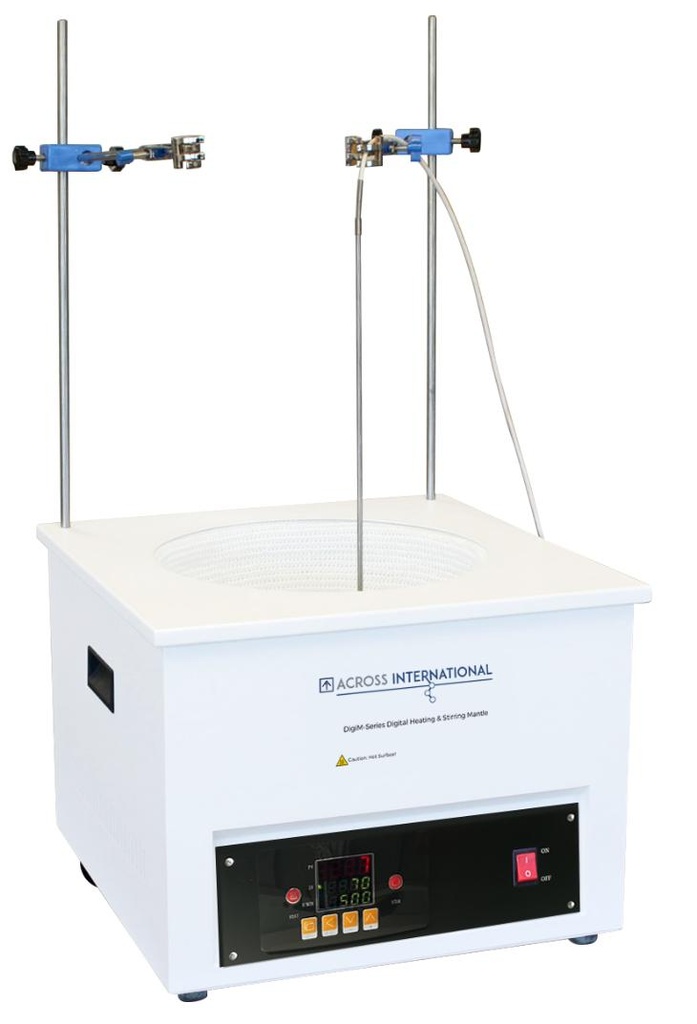

Ai DigiM 10L 300°C 2000 RPM Digital Heating & Stirring Mantle

https://across-international.odoo.com/web/image/product.template/476/image_1920?unique=fcb48e8

SKU# DigiM10

A$ 1,890.00 A$ 1,890.00 1890.0 AUD

A$ 1,890.00

Excl. GST

    This combination does not exist.

    Contact Us

    SKU # : DigiM10

    Terms and Conditions


    Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

    The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.



    Specifications

     Model
    		 DigiM10
     Electrical requirements
    		 220-240V 50/60Hz 1-Phase, 2050 watts, 12A
     Heating
    		 Ambient to 300°C
     Stirring Min. speed: 110 rpm, max. speed: 2000 rpm
     Motor power: 40 watts
     Motor type: brushless DC motor
     Controller PID control with digital temperature and rotation speed display
     External thermocouple
    		 Type: PT100
     Cable length: 1090 mm
     Stainless steel probe length: 380 mm
     Stainless steel probe diameter: 5 mm
     Flask holder Maximum flask capacity: 10 liters
     Top opening diameter:     300 mm
     Depth: 170 mm
     Dimensions (WxDxH) Unit: 460 x 440 x 330 mm, shipping: 560 x 530 x 460 mm
     Weight Unit: 14 kg, shipping: 18 kg
     Safety Thermocouple failure protection
     Certification UL/CSA (optional), CE (standard)
     Warranty One year



    Standard package

     Part description

     Quantity

    Part image

     Ai DigiM 10L digital heating & stirring mantle
    		1 pc

     External temperature probe1 pc
     Internal temperature plug1 pc
     Boss head
    		2 pcs
     Stainless steel support rod (380 mm)
    		2 pcs
     PTFE coated stir bar
    		2 pcs
     4 prong stainless steel clamp opens to 90 mm2 pcs
     User's manual
    		1 pc
