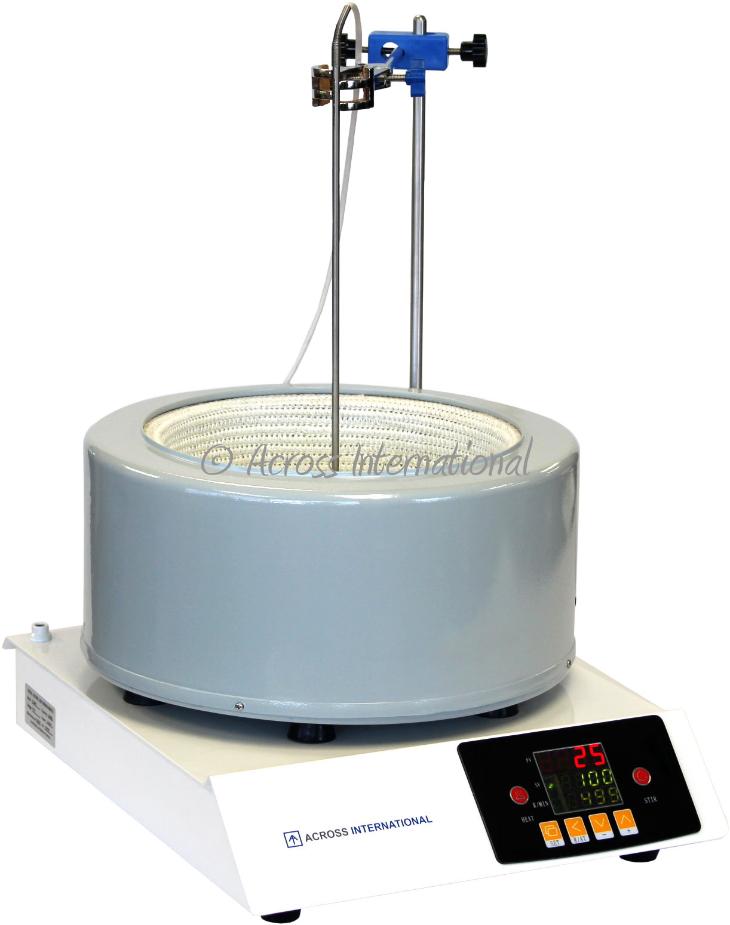

Ai DigiM 5L plug and play digital heating and stirring mantle. Comes standard with digital display for accurate control, and large display numbers for easy temperature and rotation speed readings. Two sets of thermocouples allows you to detect heater or material temperatures. Heating jacket is treated before shipment, to prevent release of smoke and odor caused by heat into your working environment.
220-240V 50/60Hz 1-Phase, 1100 watts, 12 A
Ambient to 300°C
Maximum speed: 2000 rpm Motor power: 40 watts Motor type: brushless DC motor
PID control with digital temperature and rotation speed display
Type: PT100 Cable length: 1 meter Stainless steel probe length: 380 mm Stainless steel probe diameter: 5 mm
Maximum flask capaclity: 5 liters Top opening diameter: 230 mm Depth: 140 mm
Unit: 340 x 430 x 250 mm, shipping: 510 x 410 x 410 mm
Unit: 10 kg, shipping: 15 kg
Thermocouple failure protection
Ai DigiM 5L digital heating & stirring mantle
External temperature probe
Internal temperature plug
Stainless steel support rod (380 mm)
PTFE coated stir bar
4 prong stainless steel clamp opens to 3 1/2"
