SKU # :
Clear5

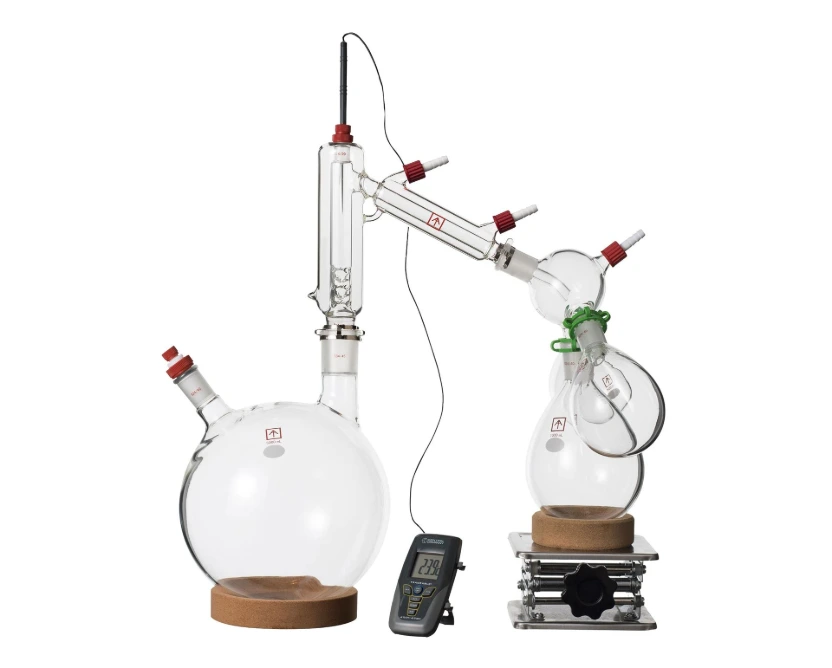

Ai Clear5 short path distillation kit features
- Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
- PTFE 14/20 and 24/40 thermo inlet adapters with Viton gaskets
- Ai Heavy wall glassware for durability
- Vacuum jacketed vapor channel
- Boiling flask to distillation port: 34/45 joint
- Thermo port on boiling flask: 24/40 joint
- Thermo port on distillation head: 14/20 joints
- Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb
- Glass material: high borosilicate glass 3.3
- Optional T1 or T40 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it
- Shipping dimensions and weight: 740 x 580 x 330 mm, 9 kg.
Warranty: Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.
.jpg){kind=spacer}
Clear5 Standard Package
Part description | Quantity | Part image |
| Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port | 1 pc |  |
| Ai 24/40 & 34/45 joints, heavy wall round bottom 2-neck flask with one vertical center neck and one angled side neck | 1 pc |  |
| PTFE 24/40 joint thermometer inlet adapter with Viton gasket | 2 pcs |  |
| Ai 24/40 joint, pennyhead glass stopper | 1 pc |  |
| Ai 24/40 joint, round-top glass feeding funnel | 1 pc |  |
| Ai 250mL distribution adapter with one 24/40 receiving flask connector and one 3/8" vacuum port | 1 pc | .jpg){kind=small} |
| Ai 250mL distribution adapter with three 24/40 receiving flask connectors and one 3/8" vacuum port (can be swapped with a single cow) | 1 pc | .jpg) |
| Ai 24/40 joint, heavy wall 1000mL pear-shaped receiving flask | 2 pcs |  |
| Ai 24/40 joint, heavy wall 500mL pear-shaped receiving flask | 1 pc |  |
| Ai glass 3/8" hose barb tee adapter | 1 pc |  |
| 34/45 joint, stainless steel keck clip | 1 pc |  |
| 24/40 joint, plastic keck clip | 4 pcs |  |
| Cork ring stand (5L x 1, 1L x 1) | 2 pcs |  |
| 150 x 150 mm stainless steel lab jack (min. height 80 mm, max height 240 mm) | 1 pc |  |
| Dow Corning high vacuum grease 30 gram | 1 pc | .jpg) |
| Traceable Kangaroo digital thermometer | 1 pc |  |
