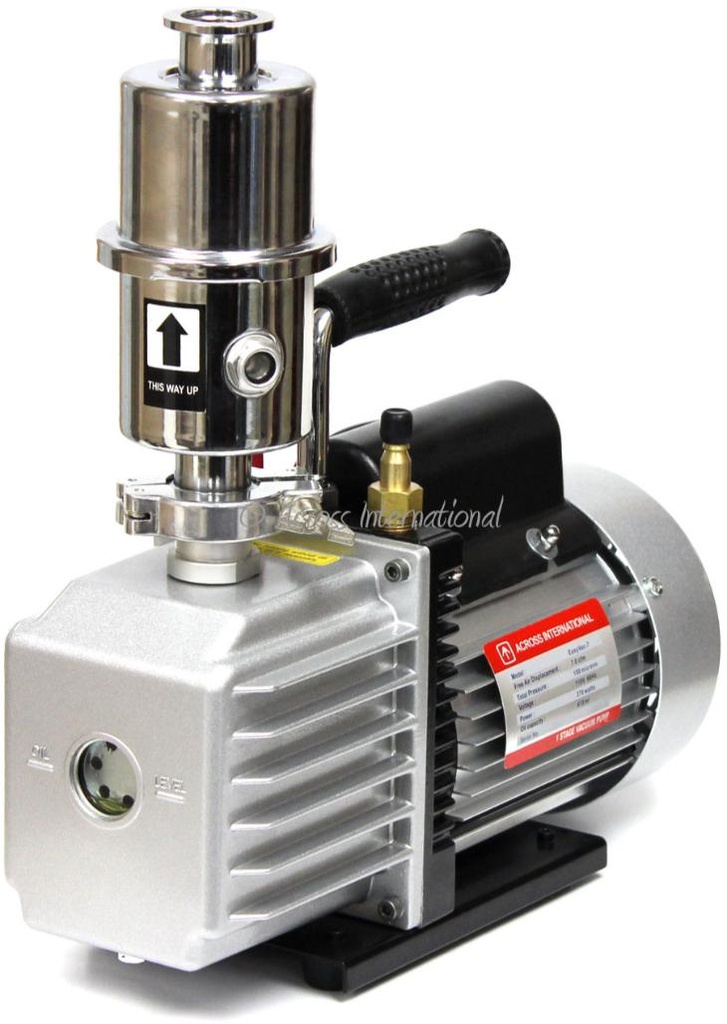

Ai EasyVac 7 cfm Compact Vacuum Pump with Oil Mist Filter


A$ 699.00 A$ 699.00 699.0 AUD

A$ 699.00

Excl. GST

    This combination does not exist.

    SKU # : EV7

    Terms and Conditions

    Ai EasyVac 7 single-stage sliding-vane rotary compact vacuum pump with 3/8" hose barb vacuum connector. Comes with a 1-meter food grade silicone hose and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. It is important to note that pumps should always be ran in a well ventilated area.

    Free three feet 3/8" white premium food grade silicone vacuum tubing (a $19.99 value) included.


     Electrical requirements
     220-240V 50/60Hz, 1-Phase 1/2 HP 370 watts
     Pumping rate
     7 cfm (110V 60Hz), 6 cfm (220-240V 50/60Hz)
     Vacuum level
     150 micron / 0.02 kPa
     Vacuum connection 3/8" hose barb
     Exhaust filter connection
     KF25/NW25 flange
     Oil volume
     415 ml / 0.44 quart
     Motor rate 1720 rpm
     Working temperature -5 to 60°C
     Pump dimensions (LxWxH)
     330 x 130 x 250 mm
     Shipping dimensions (pump) (LxWxH)
     460 x 180 x 290 mm
     Pump weight
     10 kg
     Shiping weight
     11 kg
     Recommended oil Ultragrade 19
     CE compliance
     Warranty One year
     Download Product brochure


    Standard package

     Part description


    Part image

     Ai EasyVac-7 vacuum pump with exhaust oil mist filter
    1 set

     3/8" white premium food grade silicone vacuum hose (1 meter)
    1 pc

     User's manual1 pc
