Ai EasyVac 9 cfm Dual-Stage Vacuum Pump with Oil Mist Filter

Name: Ai EasyVac 9 cfm Dual-Stage Vacuum Pump with Oil Mist Filter
Price: 1090.0 AUD
Availability: InStock

SKU# EV9

A$ 1,090.00 A$ 1,090.00 1090.0 AUD

A$ 1,090.00

Excl. GST

Add to cart

Terms and Conditions

SKU # : EV9

Our EasyVac 9 CFM vacuum pumps are now ETL and CE certified.

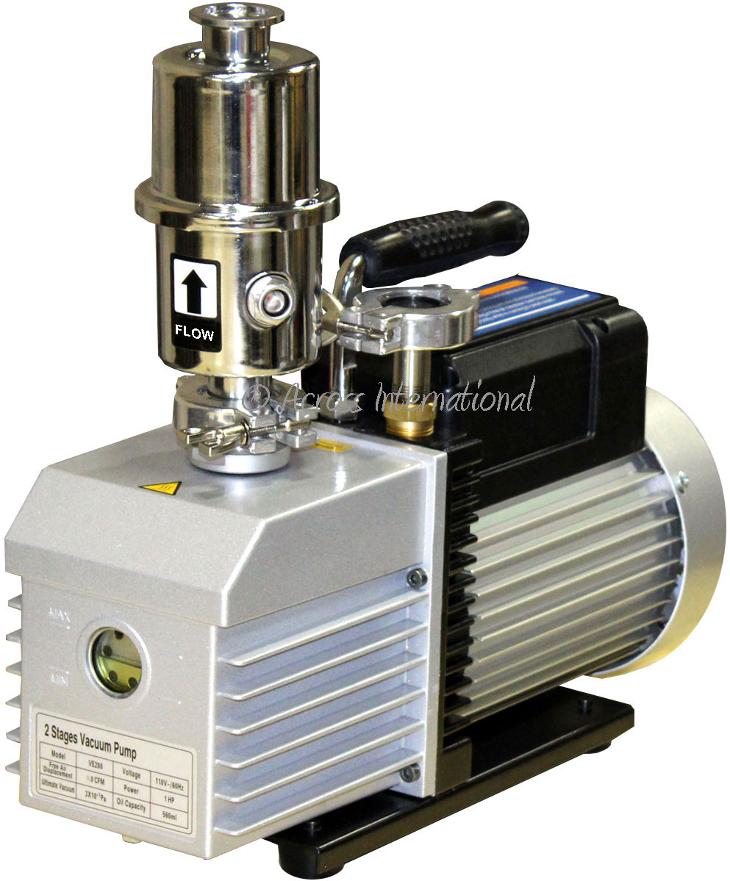

Ai EV9 are dual-stage high speed sliding-vane rotary compact vacuum pump with KF25 vacuum connector. Comes with all necessary fittings and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. It is important to note that pumps should always be ran in a well ventilated area.

FreeKF25 flexible stainless steel bellow (1 meter), clamps and centering rings set (USD $219 value) included.

Specifications :

Electrical requirements	220-240V 50/60Hz, single phase 750 watts (1 HP)
Pumping rate	9 cfm (110V 60Hz) / 8 cfm (220-240V 50/60Hz)
Vacuum level	15 micron/millitorr
Vacuum connection	KF25/NW25 flange
Exhaust filter connection	KF25/NW25 flange
Oil volume	560 ml / 0.6 quart
Motor rate	1720 rpm
Working temperature	-5 to 60°C
Pump dimensions (LxWxH)	420 x 150 x 280mm, height is 410mm with exhaust filter
Shipping dimensions (LxWxH)	510 x 230 x 330 mm
Pump weight	17 KG
Shipping weight	19 KG
Recommended oil	Ultragrade 19
Compliance	ETL tested to UL and CSA standards, CE
Warranty	One year
Download	Product brochure

Standard package

Part description	Quantity	Part image
Ai EasyVac-9 vacuum pump with exhaust oil mist filter	1 set
Ai premium vacuum pump oil (300mL)	2 pcs
KF25 stainless steel vacuum bellow (3 ft)	1 pc
KF25 wing nut flange quick clamp	2 pcs
KF25 flange centering ring	2 pcs
Users manual	1 pc
