  2. Ai 100°C 15L Capacity SST Compact Heated Recirculator

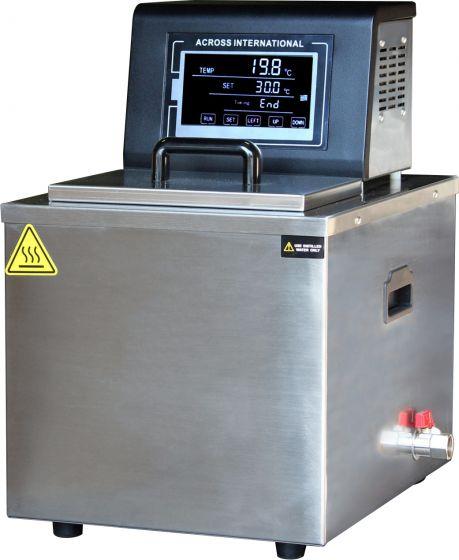

Ai 100°C 15L Capacity SST Compact Heated Recirculator

Ai 100°C 15L Capacity SST Compact Heated Recirculator

https://www.acrossinternational.com.au/web/image/product.template/546/image_1920?unique=2681ae7

SKU# H100-15

A$ 2,390.00 A$ 2,390.00 2390.0 AUD

A$ 2,390.00

Excl. GST

    This combination does not exist.

    Contact Us


    SKU # : H100-15

    Terms and Conditions






    The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

    Features

    • ETL tested to UL and CSA standards
    • Powerful 2,500 watts heater
    • All stainless steel finish
    • Adjustable pumping speed up to 20 liters per minute
    • 2nd generation 7" TFT touch screen controller
    • ANSI standard all stainless steel reservoir
    • All steel construction for durability
    • Small footprint saves valuable lab space
    • Connection tubing included
    • Recommended for 2L to 10L distillation systems





    7" TOUCH SCREEN CONTROLLER







    Specifications

     Model H100-15sst
     Temperature range Ambient to 100°C (No load)
     Electrical requirements
    		 220-240V 50Hz 1-Phase 2,600 watts
     Heating capacity 2,500 watts
     Recirculating pump Pumping speed: 20 liters per minute, adjustable
     Maximum head: 16 feet or 5 meters
     Reservoir
    		 Dimensions: 9.5 x 12 x 7.5" (WxDxH)
     Material: Type 304 stainless steel
     Capacity: 15 liters or 4 gallons
     Thermo fluid connection: 3/8" hose barb x 2
     Thermo fluid drain port: 3/8" hose barb with on/off valve
     Temperature controller Type: Digital microprocessor PID controlled
     Display: 7" touch screen
     Display unit: Celsius °C
     Temperature step: 0.1°C
     Temperature accuracy: +/- 2°C
     Temperature range: Ambient to 100°C
     Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
     Built-in swivel casters No
     Unit/shipping dimensions
    		 12.5 x 17 x 19.25" / 17 x 20 x 22" (WxDxH)
     Unit/shipping weight 30 Lbs / 36 Lbs
     Safety Short circuit and ground protection
     Over-current protection
     Over-temperature protection
     Upper/lower temperature alarm protection
     Warranty One year
     Compliance UL 61010-1 :2012 Ed.3+R:29Apr2016
     CSA C22.2#61010-1 :2012 Ed.3

    Standard package



     Part description

     Quantity

    Part image

     Ai H100-15 100°C 15L heated recirculator1 pc

     3/8" tubing (10 ft)
    		1 pc
     1/2" NPT to 3/8" hose barb drain port adapter1 pc
     User's manual1 pc
