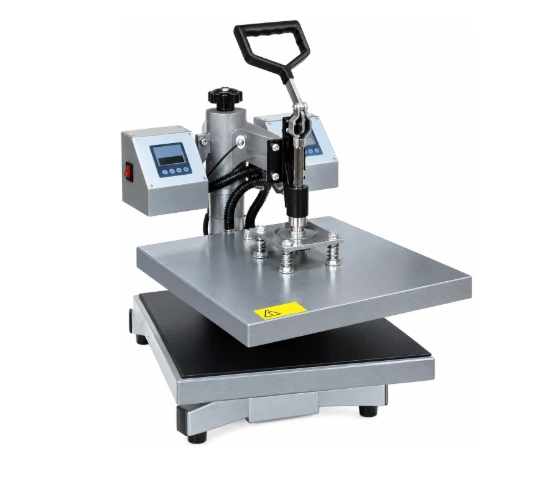

Ai 380x380mm Swing-Away Manual Heat Press w/ Dual HeatingPlatens
SKU# HandPress-1515
SKU # :
HandPress-1515
Ai HandPress 380x380 mm (15 x 15″) swing-away heated press has a top heat platen that can easily be moved away from the lower platen. It features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed. The HandPress is easy to operate, with a padded open and close handle and built-in adjustable pressure knob.
Features
- Solid aluminum heating platens for easy maintenance and even heating
- Swivel top for easy loading and unloading
- Digital timer and alarm
- Locking press arm to maintain consistent pressure
- Dual heating platens for increased temperature stability
- Dual LCD temperature controllers display in Fahrenheit or Celsius
- Adjustable pressure
- Excellent for creating solventless botanical extractions
- One year standard manufacturer's warranty

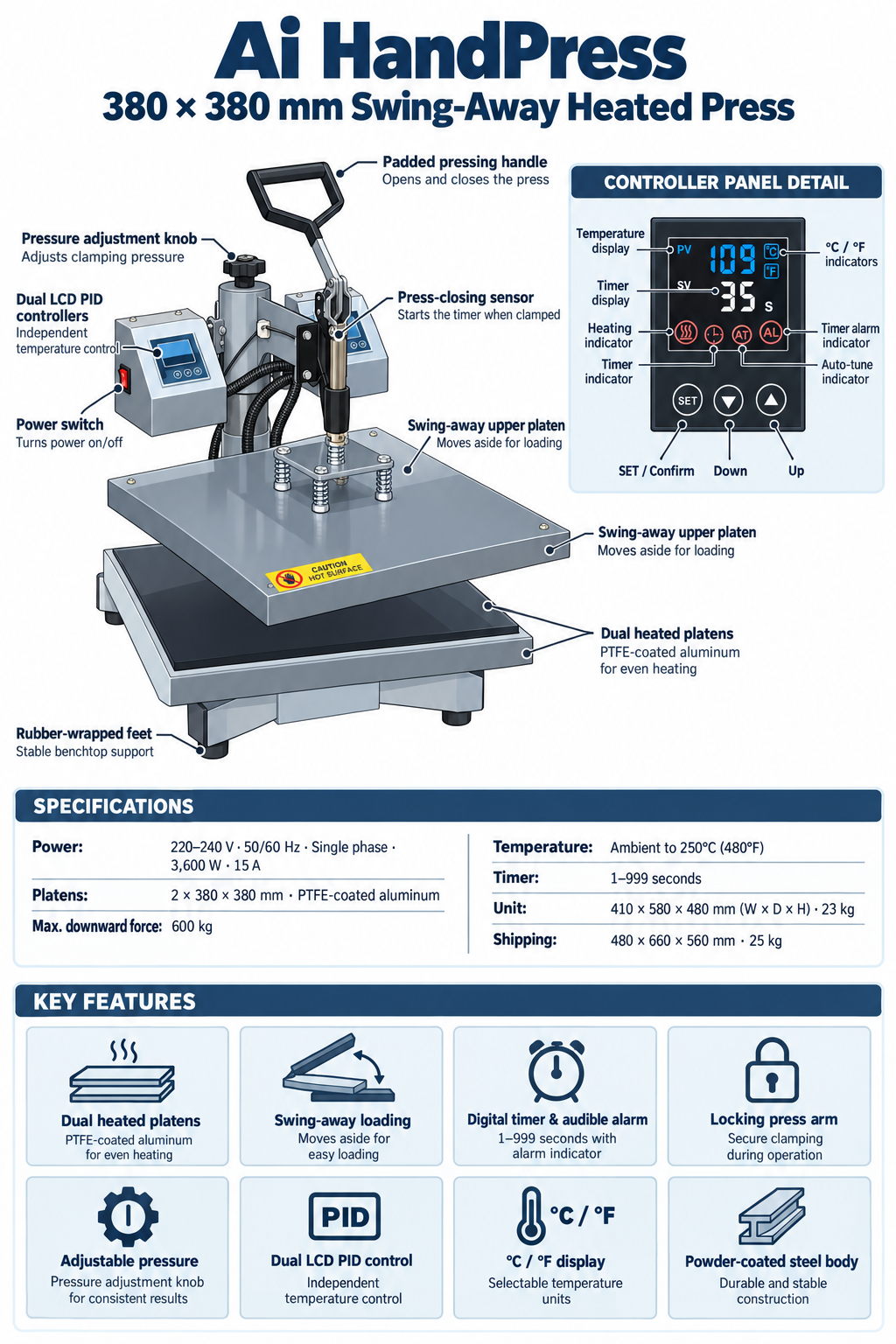

Specifications
| Electrical requirements | 220-240V 50/60Hz single phase, 3600 watts 15A |
| Heated platen | Dimensions: 380 x 380 mm Number of heated platens: two Material: PTFE coated aluminum |
| Maximum downward pressure | 600 kgs (measured with an IEEE 1451.4 compliant, 20,000 lb pressure sensor, made and calibrated in USA) |
| Temperature controller | Type: PID controlled digital controller with LCD panel Number of controller installed: two Display unit: Fahrenheit or Celsius Temperature range: ambient to 480°F (250°C) Timer range: 1 to 999 seconds |
| Body material | Powder coated steel |
| Safety | Press arm lock, timer alarm |
| Unit weight/shipping weight | 34 kg / 45 kg |
| Unit dimensions (WxDxH) | 410 x 580 x 480 mm |
| Shipping dimensions (WxDxH) | 480 x 660 x 560 mm |
| Recommended heat settings for botanical extractions | Flowers: 80°C to 110°C Concentrates: 65°C to 95°C |
| Warranty | 90 days |
| Download | Product brochure |

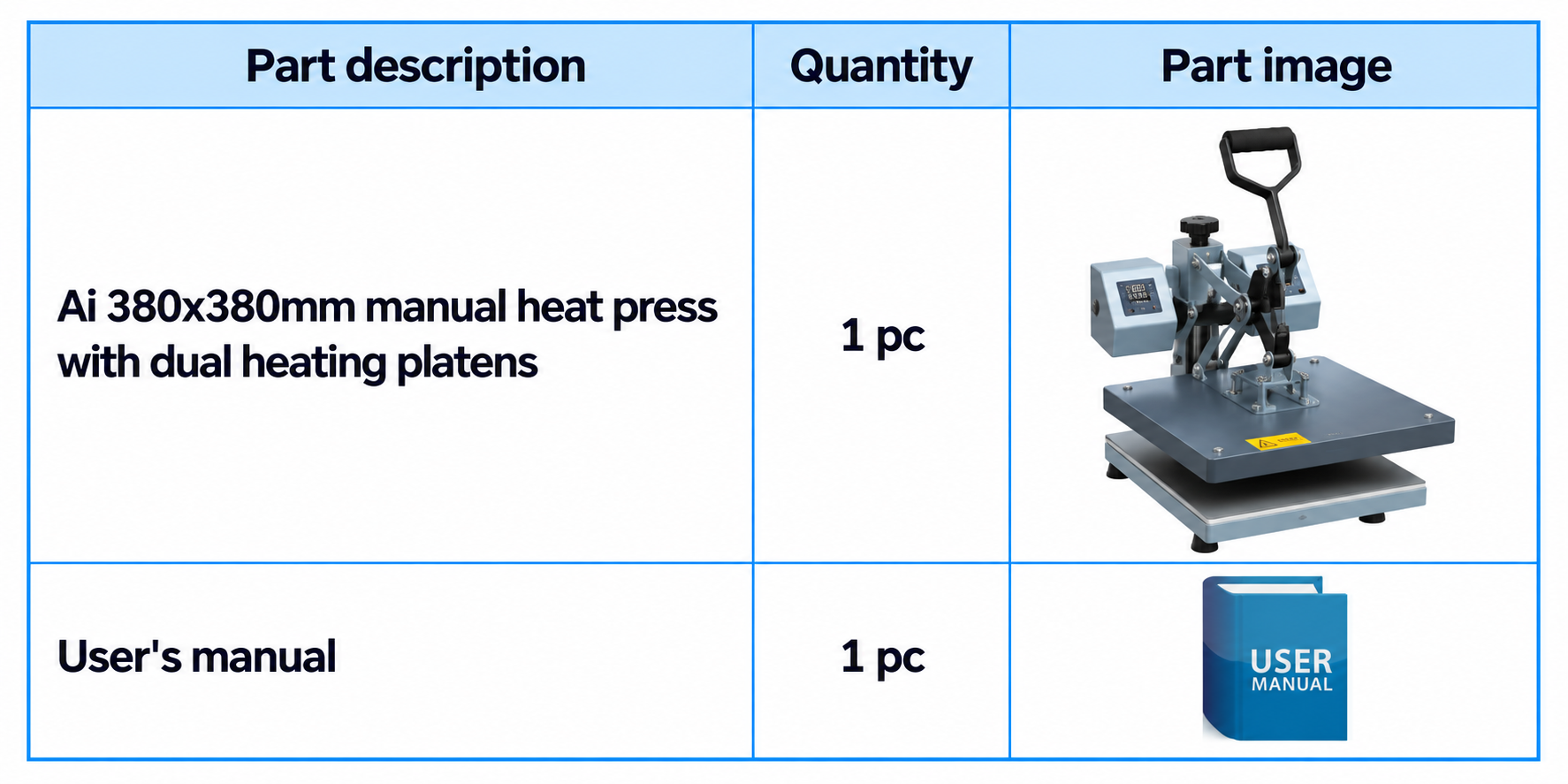

Standard package
Part description | Quantity | Part image |
| Ai 380x380mm manual heat press with dual heating platens | 1 pc | |
| User's manual | 1 pc |
|
