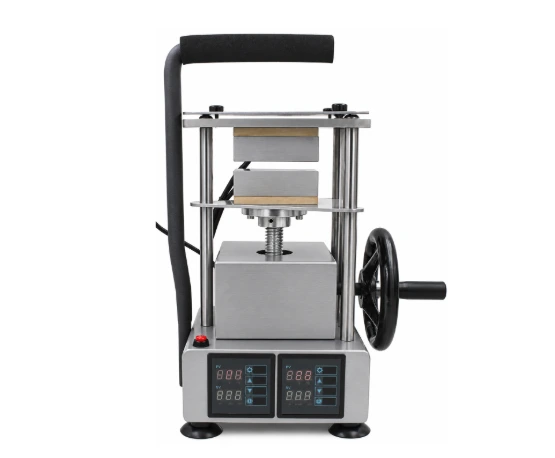

Ai 100x50mm Rolling Wheel Manual Heat Press 2.5T
SKU# HandPress-230C
SKU # :
HandPress-230C
Ai HandPress 100x50 mm rolling wheel paheated press with dual heating panten has a top heat platen that can easily be moved away from the lower platen. It features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed. The HandPress is easy to operate, with a padded open and close handle and built-in adjustable pressure knob.
Features
- Solid aluminum heating platens for easy maintenance and even heating
- Swivel top for easy loading and unloading
- Digital timer and alarm
- Extra pressure than other hand presses (2.5-3 tons max), adjustable
- Dual heating platens for increased temperature stability
- Dual LCD temperature controllers display in Fahrenheit or Celsius
- Excellent for creating solventless botanical extractions
- 90 days standard manufacturer's warranty

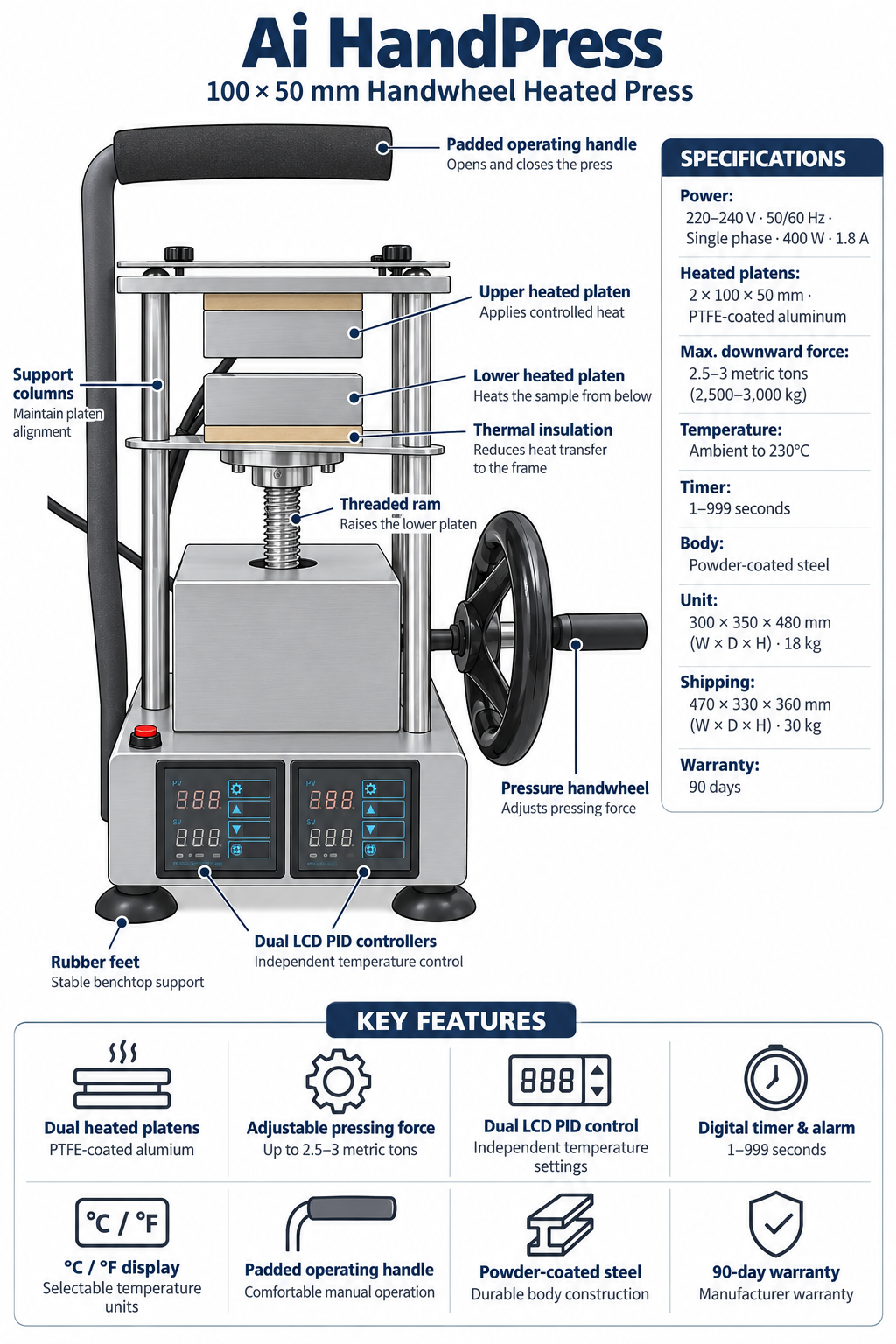

Specifications
Electrical requirements | 220-240V 50/60Hz single phase, 400 watts 1.8A |
Heated platen | Dimensions: 100 x 50 mm Number of heated platens: two Material: PTFE coated aluminum |
Maximum downward pressure | 2500 - 3000 kgs (measured with an IEEE 1451.4 compliant, 20,000 lb pressure sensor, made and calibrated in USA) |
Temperature controller | Type: PID controlled digital controller with LCD panel Number of controller installed: two Display unit: Fahrenheit or Celsius Temperature range: ambient to 230°C Timer range: 1 to 999 seconds |
Body material | Powder coated steel |
Safety | Press arm lock, timer alarm |
Unit weight/shipping weight | 18 kg / 30 kg |
Unit dimensions (WxDxH) | 300 x 350 x 480 mm |
Shipping dimensions (WxDxH) | 470 x 330 x 360 mm |
Recommended heat settings for botanical extractions | Flowers: 80°C to 110°C Concentrates: 65°C to 95°C |
Warranty | 90 days |
