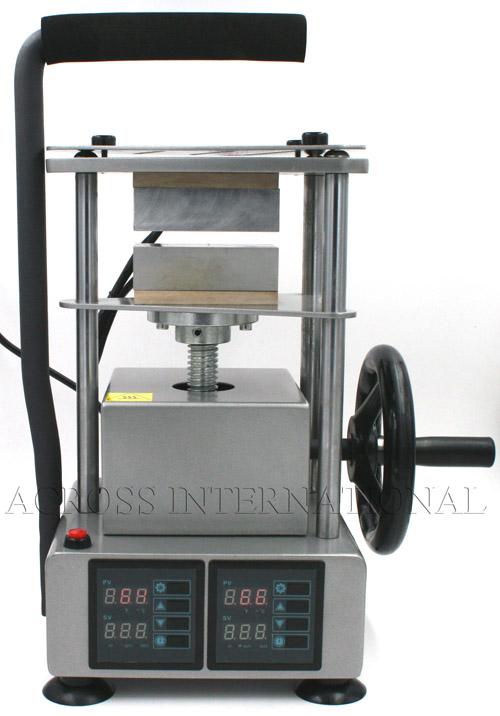

Ai 100x50mm Rolling Wheel Manual Heat Press 2.5T

SKU# HandPress-230C

A$ 790.00 A$ 764.75 764.75 AUD

A$ 790.00

Excl. GST

    This combination does not exist.

    SKU # : HandPress-230C

    Terms and Conditions

    Ai HandPress 100x50 mm rolling wheel paheated press with dual heating panten has a top heat platen that can easily be moved away from the lower platen. It features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed. The HandPress is easy to operate, with a padded open and close handle and built-in adjustable pressure knob.


    - Solid aluminum heating platens for easy maintenance and even heating
    - Swivel top for easy loading and unloading

    - Digital timer and alarm
    - Extra pressure than other hand presses (2.5-3 tons max), adjustable
    - Dual heating platens for increased temperature stability
    - Dual LCD temperature controllers display in Fahrenheit or Celsius
    Excellent for creating solventless botanical extractions
    - 90 days standard manufacturer's warranty


     Electrical requirements
     220-240V 50/60Hz single phase, 400 watts 1.8A
     Heated platen
     Dimensions: 100 x 50 mm
     Number of heated platens: two
     Material: PTFE coated aluminum
     Maximum downward pressure 2500 - 3000 kgs (measured with an IEEE 1451.4 compliant, 20,000 lb  pressure sensor, made and calibrated in USA)
     Temperature controller
     Type: PID controlled digital controller with LCD panel
     Number of controller installed: two
     Display unit: Fahrenheit or Celsius
     Temperature range: ambient to 230°C
     Timer range: 1 to 999 seconds
     Body material Powder coated steel
     Safety Press arm lock, timer alarm
     Unit weight/shipping weight
     18 kg / 30 kg
     Unit dimensions (WxDxH)
     300 x 350 x 480 mm
     Shipping dimensions (WxDxH)
     470 x 330 x 360 mm
     Recommended heat settings for botanical extractions Flowers: 80°C to 110°C
     Concentrates: 65°C to 95°C
     Warranty 90 days
