SKU # :
HC200S-200

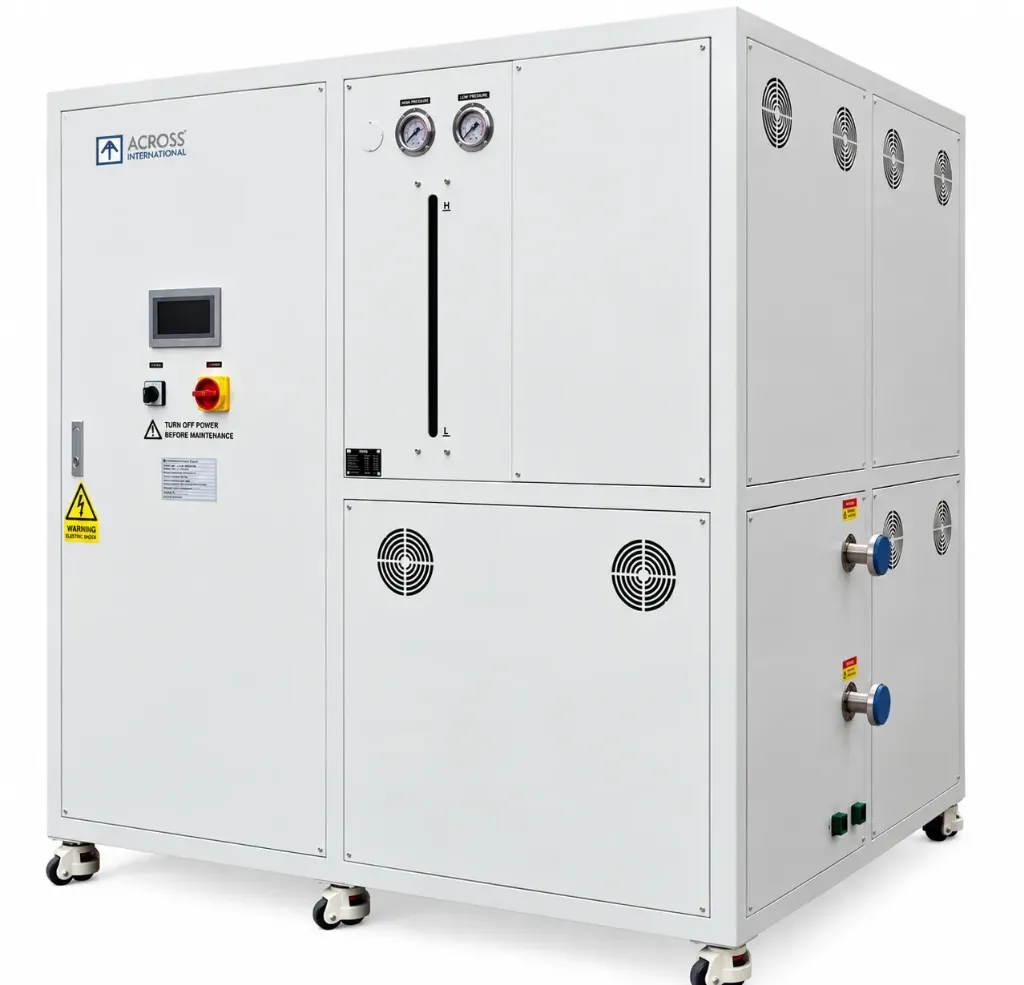

NEW HC200S-200 Super-Low & High Temperature High-Power Circulation System
-60°C to 200°C | 60 kW Heating & Cooling | Industrial High-Power Temperature Control
Introducing the new HC200S-200, Across International’s latest high-power super-low and high temperature circulation system, engineered for large-scale reactors, pilot plants and demanding industrial processes requiring powerful heating and cooling across an exceptionally wide temperature range.
Operating from -60°C all the way up to 200°C, the HC200S-200 combines 60 kW heating capacity with up to 60 kW cooling capacity, providing significantly greater thermal capacity for applications where conventional laboratory heater/chillers are simply not powerful enough. Even under extreme low-temperature conditions, the system delivers 32 kW cooling at -30°C, 28 kW at -40°C and an impressive 13 kW at -60°C.
With a high-flow circulation system delivering up to 25 m³/h at 3.5 bar, the HC200S-200 is specifically suited to large reactors and high thermal-load applications, providing rapid heat transfer and stable temperature control across both super-low and high-temperature processes.
A New Generation of High-Power Temperature Control
The HC200S-200 has been developed for applications that require more than simply reaching a set temperature. It provides the power, circulation capacity and intelligent control required to rapidly heat and cool large thermal loads while maintaining precise process temperatures.
Its exceptionally wide -60°C to 200°C operating range allows super-low-temperature cooling and high-temperature heating to be performed using a single closed-loop system, eliminating the need to switch between separate heating and cooling equipment.
The system incorporates PID intelligent control, providing heat-transfer fluid temperature accuracy of ±0.1°C and reactor material temperature accuracy of ±0.5°C. A 7-inch colour touchscreen provides temperature curve display and recording, while MODBUS RTU via RS485 enables integration into larger process-control systems.
Why HC200S-200?
- NEW high-power model for demanding pilot and industrial applications
- Super-wide -60°C to 200°C temperature range
- Powerful 60 kW heating capacity
- Up to 60 kW cooling capacity
- 13 kW cooling capacity even at -60°C
- High-flow circulation up to 25 m³/h
- 3.5 bar circulation pressure
- ±0.1°C heat-transfer fluid temperature accuracy
- Direct reactor material temperature control
- Programmable heating and cooling profiles
- Fully closed circulation system
- 7" colour touchscreen with temperature curve recording
- MODBUS RTU / RS485 connectivity
- Designed for large reactors and high thermal loads
Powerful Cooling — Even at Super-Low Temperatures
One of the major advantages of the new HC200S-200 is its ability to maintain substantial refrigeration capacity as temperatures fall.
| Temperature | Cooling Capacity |
|---|---|
| +200°C | 60 kW |
| +100°C | 60 kW |
| +20°C | 60 kW |
| -30°C | 32 kW |
| -40°C | 28 kW |
| -60°C | 13 kW |
Unlike smaller laboratory circulators whose cooling capacity can fall dramatically at low temperatures, the HC200S-200 is designed for high thermal-load processes extending into the super-low-temperature range. The specified cooling capacities are taken from the supplied technical specification.
Built for Large Reactors & Industrial Processes
The HC200S-200 is particularly suited for:
Large Jacketed Reactors · Pilot Plants · Chemical Processing · Pharmaceutical Production · Crystallisation · Polymerisation · Hydrogenation · Distillation · Microchannel Reactors · Battery Testing · EV Component Testing · Materials Testing · Industrial R&D
The supplied technical documentation identifies reactor applications including crystallisation, distillation, evaporation, hydrogenation, polymerisation, condensation and constant-temperature reactions, as well as microchannel reactor applications.
