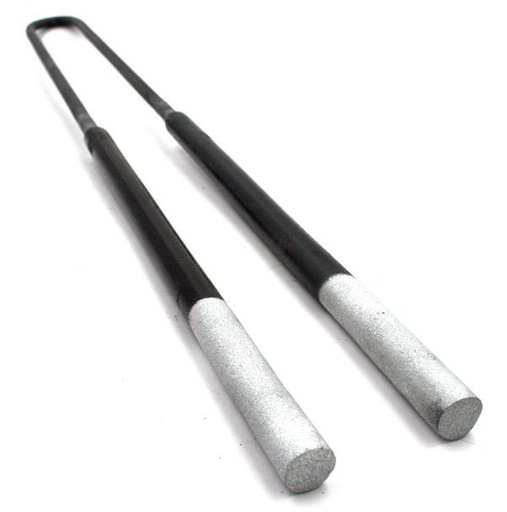

Super 1750-1800 MoSi2 Heating Elements for High Temp Furnaces

SKU# HEMo

A$ 259.00 A$ 233.10 233.1 AUD

A$ 259.00

Excl. GST
  • HEMo & SiC heating element
Add to cart

Terms and Conditions

Please contact our friendly sales team for urgent orders.
Contact Us

SKU # : HEMo

Resistivity of MoSi2 (Molybdenum Disilicide) heating element rises dramatically when temperature rises. Power output is less than 35% of the max. output at 300°C. Resistance of a MoSi2 heating element does not change under normal use, and you can mix new and old elements together.

Generally a separator should be placed in between two shanks of heating element when installing the heating elements in the furnace. Please make sure the width of the separator matches the space of the heating element. If the separator is too big it may break the heating element during installation.

General specifications

Name
Value
 Material MoSi2
 Max. temperature

 1700°C (NO2, CO2, O2 and air) 1750 grade
 1750°C (NO2, CO2, O2 and air) 1800 grade
 1650°C (He, Ar and Ne)
 1600°C (SO2)
 1500°C (CO and N2)
 1400°C (Wet H2)
 1350°C (Dry H2)

 Heat extensibility 4%
 Water absorption 4%
 Volume Density 5 - 5.6 g/cm3
 Bend strength 15 - 25 kg/cm3
 Vickers hardness (HV) 570 kg/mm2
 Porosity rate 7.4%


Comparison

Element

Super 1750 30x350mm

Super 1750 30x400mm

Super 1750 40x500mm

Super 1800 30x340mm

Super 1800 30x390mm

Super 1800 30x410mm

Super1800

30x380mm

Super1800

40x480mm

Compatible furnace

GCF1700 3.6L

(x4 pcs)

GCF1700 8L (x6 pcs)

12L (x8 pcs)

CF1700 8L, 12L

GCF1700 36L

(x10 pcs)

CF1700 36L

TF1700 60mm and 80mm

(x8 pcs)

TF1700 100mm

(x8 pcs)

TF1700 120mm

(x8 pcs)

 CF/GCF

1700 80L

(x12 pcs)

CF/GCF

1700 125L

(x12 pcs)

Dimensions

(mm)

 D1: Ø7

 D2: Ø12

 Le: 140

 Lu: 210

 A: 30

 D1: Ø7

 D2: Ø12

 Le: 190

 Lu: 210

 A: 30

 D1: Ø7

 D2: Ø12

 Le: 290

 Lu: 210

 A: 40

 D1: Ø7

 D2: Ø12

 Le: 120

 Lu: 220

 A: 30

 D1: Ø7

 D2: Ø12

 Le: 170

 Lu: 220

 A: 30

 D1: Ø7

 D2: Ø12

 Le: 190

 Lu: 220

 A: 30

D1: Ø8

D2: Ø16

Le3: 10

LU: 380

A: 40

D1: Ø8

D2: Ø16

Le3: 10

LU: 480

A: 40
