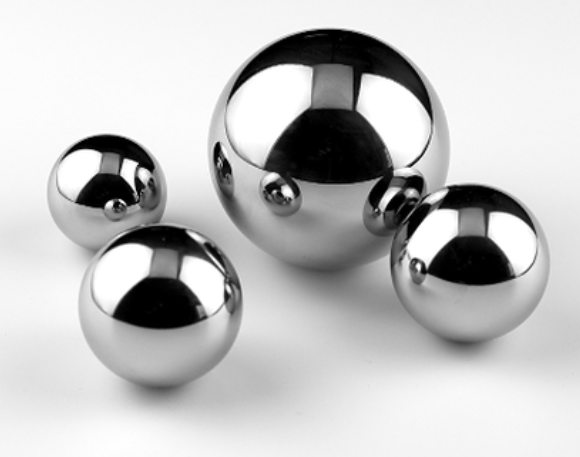

Highly polished tungsten carbide grinding balls for planetary and high-energy ball mills.
Specifications
| Grade | YG8 |
| WC (wt%) | 92% |
| CO (wt%) | 8% |
| Hardness | 88.5 HRA |
| Density | > 14.4 g/cm3 |
| Bending strength | 2400 TRS N/mm2 |
| Particle | 2 um |
|
Ball size |
Pcs / 100g |
|
Ø3mm |
474 |
|
Ø6mm |
59 |
|
Ø10mm |
13 |
|
Ø15mm |
4 |
|
Ball size |
Gram/pc |
|
Ø15mm |
27g |
|
Ø20mm |
65g |
Grinding jar ball configuration
Ball size/qty (pcs) | ||||||||
| 50ml | 100ml | 150ml | 250ml | 300ml | 400ml | 500ml | 1000ml |
Ø6mm | 50 | 100 | 150 | 280 | 330 | 420 | 500 | 1000 |
Ø10mm | 8 | 16 | 24 | 40 | 48 | 80 | 100 | 200 |
Ø20mm |
|
|
|
|
| 2 | 2 | 3 |
