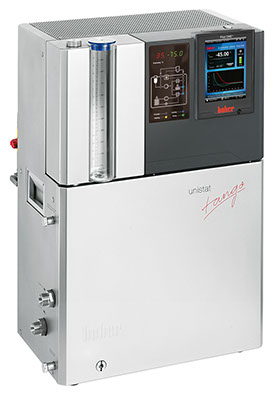

HUBER Unistat 405 -45°C To 250°C With Pilot ONE

SKU# Huber-Unistat-405

A$ 44,990.00 A$ 44,990.00 44990.0 AUD

A$ 44,990.00

Excl. GST

    This combination does not exist.

    SKU # : Huber-Unistat-405

    Terms and Conditions

    The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

    The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7 touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

    Huber Unistat 405 features

    • Precise and reproducible temperature control results
    • Fastest heating and cooling rates
    • Wide temperature ranges with no fluid change
    • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
    • Adaptive temperature control, self-optimising
    • Efficient circulation pump
    • 2 x USB (Host and Device), Ethernet and RS232 interfaces
    • Efficient operation saves working time and operating costs
    • Proven functionality for the process industry
    • E-grade "Professional" included



    Huber Unistat T405 adapters, tubing and fluid for Ai 50L glass reactors $6,675

    • P/N 9256 x 2 90 Adaptor M24x1,5female-M24x1,5male
    • P/N 9327 x 2 2m (-60 to 260) tubing
    • P/N 9825 x 2 M24 X 1.5 (male) to 3/4" NPT (male)
    • P/N 6165 x 1 M60 (-60 to 115) 5L
    • P/N 6166 x 2 M60 (-60 to 115) 10L

    Click here to visit Huber website for details


    Huber Pilot ONE multi-touch controller

    General information & temperature controller
    Temperature range-45...250C
    Temperature stability0.01C
    Temperature controlTAC, self-optimizing (True Adaptive Control)
    Display resolution0.01C
    Alarm messageoptical, acoustical
    ControllerPilot ONE (E-grade"Professional")
    Safety classIII / FL
    Protection classIP20
    Dimensions(W x D x H)426 x 327 x 631mm|16.77 x 12.87 x 24.84inches
    Heating / cooling capacity
    Heating capacity3kW
    Cooling capacity
    Cooling machineair-cooled
    RefrigerantR1270 (0,15 kg)
    Circulation pump
    Pressure pump max.55 lpm;0.9 bar|14.53gpm;13.05psi
    Pump connectionM24x1,5 AG male
    Pt100 connectionPt100
    Analogueinputvia optional Com.G@te
    Analogueoutputvia optional Com.G@te
    Digital interfaceRS232, Ethernet, USB Device, USB Host
    Operating data
    Permissible ambient temp.5...40C
    Noise level62dB(A)
    Filling volume min.1.5Liters|3.96gal
    Volume of expansion2.8Liters|7.4gal
    Power supply208V 2~ 60Hz
    Current max.17A
    Fusing2x20 A
