Note: This model only available in 380-415 volt three phase.
Across International IH series mid-frequency induction heaters are designed to operate between 30 and 80 kHz. Mid-frequency heaters are excellent for small parts heating, cutting, diamond tool brazing, soldering copper plumbing fittings, auto parts heat-treating, annealing of stainless steel containers and more.
Mid-frequency induction heaters are the simplest in terms of design and implementation. With their low cost of ownership and maintenance, they are the most popular and reliable machines. The 15kW models are especially popular for their large power capacity and small footprint at an affordable price. This makes them standard equipment for many factories, labs and workshops where 220-240V AC is available.
IH70AB Induction Heater Features
Dual-station with connection cables and hose let you separate the heater and controller up to seven feet, allow you to stay away from high temperature, dirty and corrosive environment and for a safer operation, or if you need to move the heater to your work pieces constantly during operation.
Ease of use: just plug in the power and connect the water cooling system. Our simple instruction allows you to use the heater in 15 minutes.
Light weight, portable, instant heat and up to 90% energy savings.
Precise control with digital output, frequency and current displays.
Remote foot switch for safer operation.
Dual automatic and manual modes.
Optional graphite, MgO and SiO2 crucibles available. (melting material decides crucible type, weight and size of the material decide crucible size).
Custom coil design (fixed coil or coil on a cable so it can be used by hand like a wand).
ISO 9001:2008 registered manufacturer.
Overvoltageprotection: machine shuts down when input voltage is over 500V. Overvoltage light will turn on and buzzer will sound continuously. Alarm and light shut off automatically when voltage goes below 500V.
Overheatprotection: if sensor detects heat radiator temperature is over 55°C, machine will shut down, overheat light will turn on and buzzer will sound continuously. Increase water pressure or lower water temperature until alarm goes off itself.
Overcurrent/malfunction protections: machine will shut down, indicator light turned on and buzzer sounds continuously if one of these situations occurs:
One of the machine parts becomes overheated
Interfering signal detected
Short circuit between work pieces and induction coils
Induction coils touching each other
Input voltage is too low
Low water pressure protection: if water pressure goes below 29 PSI, machine will shut down, water protection light will turn on and buzzer will sound continuously.
Always wear protective gear and goggles when operating the machine. Crucibles must be covered all the time during operation. Across International is not responsible for any injury or damage caused by misuse.
Do not run no-load operation for a long period of time, it might cause damage to the machine.
Circulating water must be pure, clean and below 45°C.
Machine must be grounded properly all the time during operation.
Do NOT use single-turn coil if coil diameter is smaller than 100 mm, it will cause high frequency damage to the machine.
Thread tape (or related material) is absolutely prohibited during installation of induction coils.
Max. input current
108 A (120A 3-phase circuit breaker required)
380-415 VAC 50/60Hz three phase
Max. oscillating/input power
≥ 0.2 Mpa (29 PSI) you may use tap water and water pump (>1/4HP & >240 Gph)
See detail specs below, we will make coils according to your requirements
Unit: 70 kg, shipping: 86 kg
Unit: 68 kg, shipping: 84 kg
760 x 380 x 890 mm
810 x 360 x 460 mm
Remote foot switch

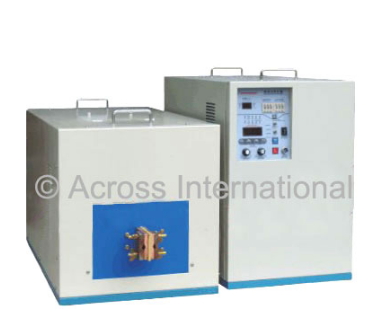

IH70AB induction heater
Connection cable (2 meter)
Foot switch (2 meter)
Optional copper tubing induction coil made according to customer's requirements
Stainless steel hose clamp
