Note: This model only available in 380-415 volt three-phase.
Across International's IHL series 1 kHz to 20 kHz low frequency induction heaters are good for a wide range of applications including deep heat penetration for full hardening processes, steel rod forging, tempering of pressing dies, pre-heating for welding, and melting of metal. They are not limited to ferromagnetic materials, so nonferrous metals can also be used effectively.

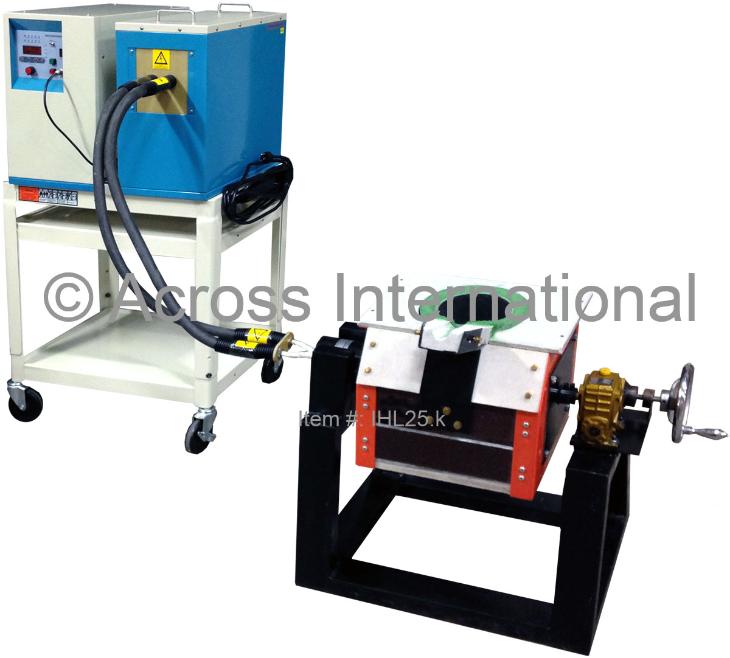

There are three major components to the system: the power supply, the compensating capacitor/transformer and the induction coil/smelting crucible. Our heaters automatically adjust to the best resonant frequency in order to achieve the most efficient overall heating results based on our customer's requirements which include heat penetration, heating efficiency, operating noise and electromagnetic homogeneity. Two of our most popular low frequency machines are the Melting Furnaces with Tile-Pour Melter and Auto-feeding Rod Heating Furnaces for Forging.
Comes with one graphite or silica crucible. Additional crucibles available at extra cost. (melting material decides crucible type, weight and size of the material decide crucible size)
ISO 9001:2008 registered manufacturer.
Overvoltageprotection: machine shuts down when input voltage is over 500V.
Overheatprotection: if sensor detects heat radiator temperature is over 55°C, machine will shut down, overheat light will turn on and buzzer will sound continuously. Increase water pressure or lower water temperature until alarm goes off itself.
Overcurrent/malfunction protections: machine will shut down, indicator light turned on and buzzer sounds continuously if one of these situations occurs:
One of the machine parts becomes overheated
Interfering signal detected
Short circuit between workpieces and induction coils
Induction coils touching each other
Input voltage is too low
Low water pressure protection: if water pressure goes below 29 PSI, machine will shut down, water protection light will turn on and buzzer will sound continuously.
Always wear protective gear and goggles when operating the machine. Crucibles must be covered all the time during operation. Across International is not responsible for any injury or damage caused by misuse.
Do not run no-load operation for a long period of time, it might cause damage to the machine.
Circulating water must be pure, clean and below 45°C.
Machine must be grounded properly all the time during operation.
1-20 KHz (actual frequency depends on type, size of work pieces and heating requirements)
100% (for 24-7 continuous operation)
≥ 0.2 Mpa (29 PSI)
> 6 liters per minute
Unit dimensions (DxWxH)
Power supply: 35 KW, 510 x 250 x 480 mm Transformer: 460 x 250 x 430 mm (or 480 x 410 x 430 mm, depends on requirements) Tilt-pour: 710 x 610 x 1000 mm Graphite crucible: 170 mm OD, 140 mm ID, 200 mm height, 180 mm depth (2.7 liters)
