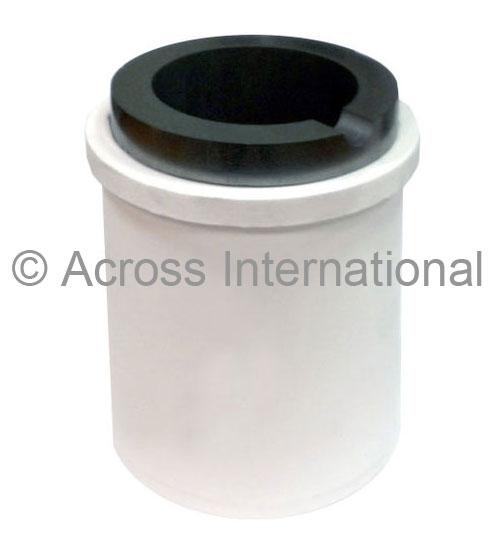

High purity (99.9%) heat resistant graphite crucibles with flat bottom. good for use with induction heating, recommended for precious metals casting. Comes with a silicon dioxide (SiO2) jacket to prevent melting material leaking in case the graphite crucible breaks.
Graphite, often called black lead, can tolerate thermal shock and withstands constant working temperature up to 1500°C or 3600°C (vacuum condition). They are the best electrical conductive material known to man, 4 times of steel, 5 times of copper and 100 times of non-metallic materials. They also have higher thermal conductivity than steel, iron and lead, plus resistant to acid, alkali and organic solvent.
Specifications
| Graphite crucible OD (edge) | 85 mm |
| Graphite crucible ID | 60 mm |
| Graphite crucible depth | 120 mm |
| Silica jakcet OD (edge) | 98 mm |
| Silica jacket ID | 75 mm |
| Total height | 143 mm |
| Volume | 340 ml |
| Compatible coil | 90mm ID 8mm tubing |
