| Specification | WAC-1 | WAC-2 | WAC-4 |
| Power Supply | 220–240 VAC, 50 Hz, single-phase
Total input power: 1,460 W | 220–240 VAC, 50 Hz, single-phase (1PH)
Total input power: 2,360 W | 415 VAC, 50/60 Hz, three-phase (3PH)
4.36 kW |

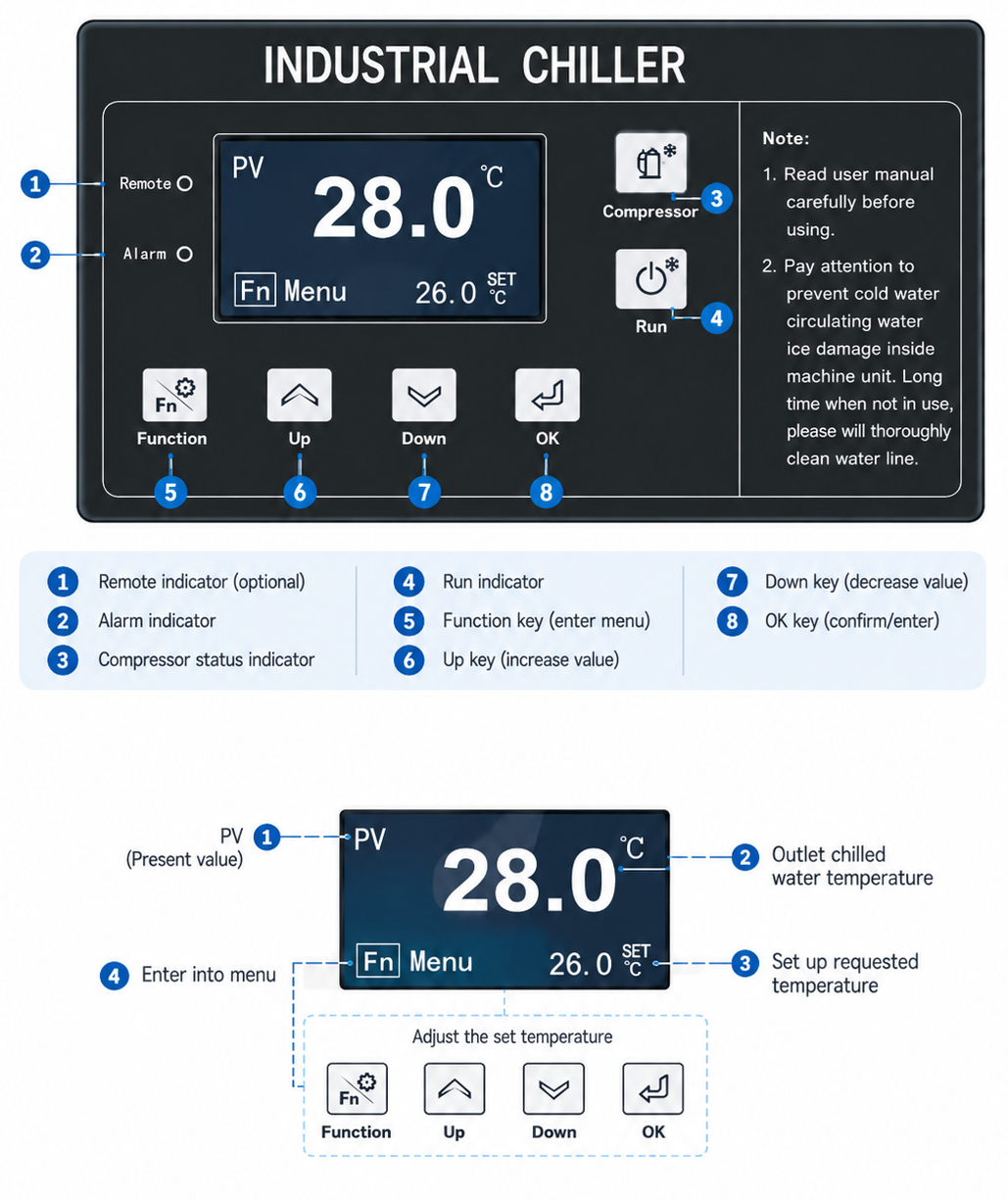

| Controller | | | Digital micro-chip controlled with LCD screen and fluid level display |
| Nominal Cooling Capacity | 2,415 W (2,076 kcal/h) | 4,446 kcal/h | 8,815 kcal/h |
| Cooling Capacity Test Conditions | Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C | Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C | Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C |
| Compressor | 820 W; 220–240 VAC, 50 Hz, single-phase
Model: 5PS102; R410A
Thermally protected; Qty: 1 | 220–240 VAC, 50 Hz, 1PH
Model: 5KS225; R410A
Thermally protected; Qty: 1 | Danfoss (UL Listed), C-SBN303H8A
415 VAC, 50 Hz, 3PH
R407C; thermally protected; Qty: 1 |

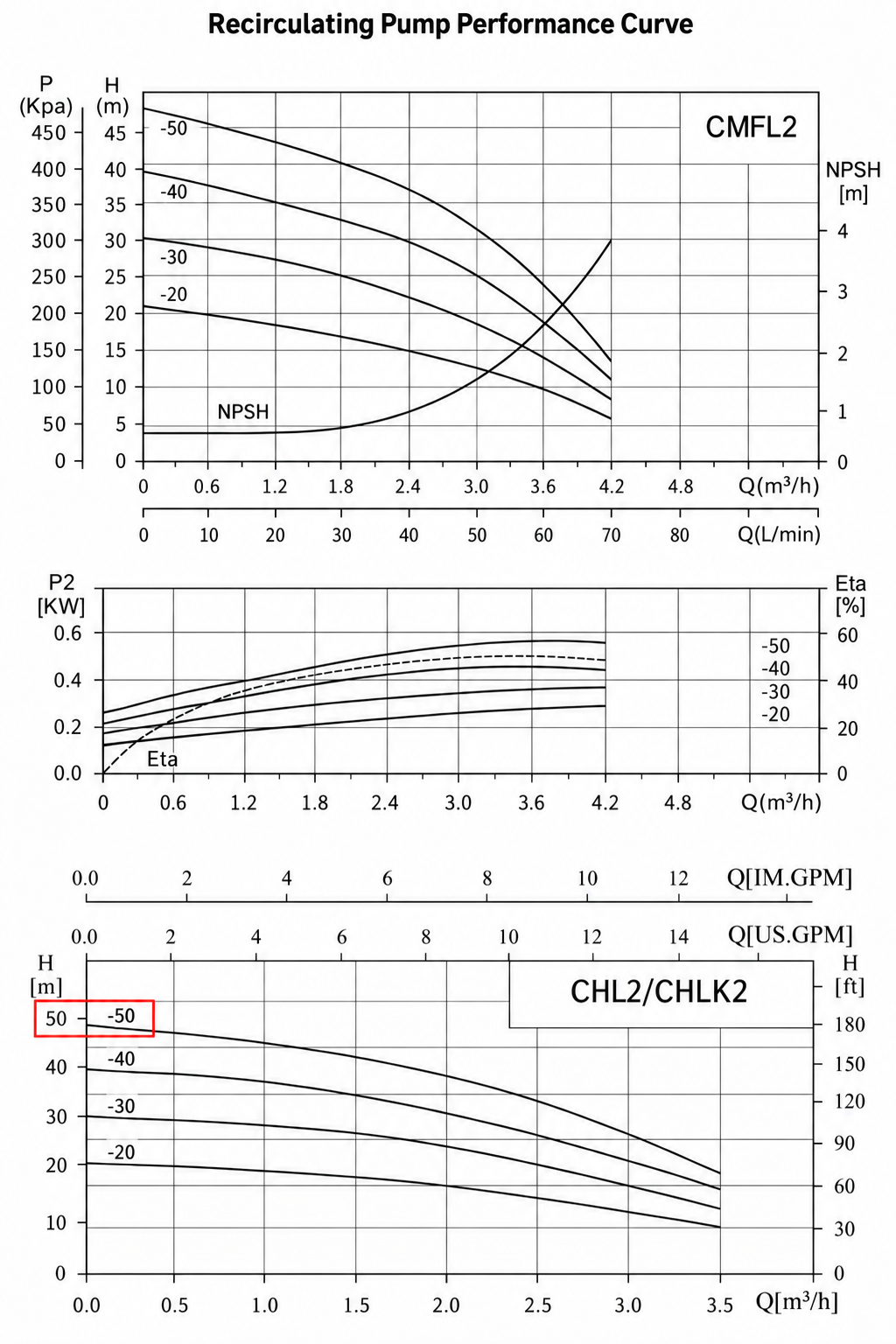

| Water Pump | CNP CHLF(T)2-40; 550 W; 220–240 VAC, 50 Hz, 1PH
1.10 A; 2,900 rpm; IP55
30 L/min; max 35 m / 3.5 bar; nominal 16 m / 1.6 bar | CNP CHLF(T)2-50; 550 W; 220–240 VAC, 50 Hz, 1PH
1.10 A; 2,900 rpm; IP55
33 L/min; max 45 m / 3.5 bar; nominal 20 m | CNP CHLF(T)2-50; 550 W; 415 VAC, 50 Hz, 3PH
1.10 A; 2,900 rpm; IP55; max liquid 70 °C
33 L/min; max 45 m / 3.5 bar; nominal 20 m |
| Reservoir Capacity | 25 L | 30 L | 30 L |
| Recommended Coolant | | | Distilled water |
| Cooling Fan | MAER YDWF68L35P4-300; 90 W; 220–240 VAC, 50 Hz, 1PH
0.56 A; 1,387 rpm; 4 µF; IP54
Airflow: 2,000 ft³/h; Qty: 1 | MAER YWF74L34P4-350; 150 W; 220–240 VAC, 50 Hz, 1PH
0.56 A; 1,387 rpm; 4 µF/450 V; IP54
Airflow: 2,000 ft³/h; Qty: 1 | MAER YWF74L34P4-400; 432 W; 415 VAC, 50 Hz, 3PH
0.92 A; 1,362 rpm; IP54
Airflow: 5,000 ft³/h; Qty: 2 |
| Temperature Accuracy | ±2 °C | ±2 °C | ±2 °C |
| Chilled Fluid Temperature Range | 5–35 °C | 5–35 °C | 5–35 °C |
| Recommended Inlet-to-Outlet Difference | 3–8 °C | 3–8 °C | 3–8 °C |
| Chiller Fluid Inlet & Outlet | 1.5-inch tri-clamp flange | 1.5-inch tri-clamp flange | 1.5-inch tri-clamp flange |
| Manifold Connections | Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves | Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves | Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves |
| Condenser Cooling Air Flow | | | |
| Chilled Fluid Flow | | | |
| Net / Shipping Weight | 90 / 118 kg | 90 / 130 kg | 165 / 230 kg |
| Unit / Shipping Dimensions (D × W × H) | 550 × 450 × 850 mm
680 × 600 × 1,100 mm | 600 × 500 × 1,020 mm
810 × 600 × 1,200 mm | 1,140 × 560 × 1,140 mm
1,360 × 660 × 1,440 mm |
| Safety Protection | Overcurrent protection; compressor thermal overload protection | Overcurrent protection; compressor thermal overload protection | Overcurrent; compressor delay start; water pump overload; built-in fuse; over-/under-voltage; abnormal operation; phase protection |
| Recommended Ambient Temperature | ≤35 °C | ≤35 °C | ≤35 °C |
| Compatible AI Induction Heaters | High: 4 & 6.6 kW
Medium: 15 & 25 kW
Low: 15 kW | High: 6.6, 10 & 20 kW
Medium: 15 & 25 kW
Low: 15 & 25 kW | High: 10, 20 & 30 kW
Medium: 25 & 35 kW
Low: 25 & 35 kW |
| Compliance | CE compliant | CE compliant | CE compliant |
| Specification | WAC-6 | WAC-10 | WAC-15 |
| Power Supply | 415 VAC, 50/60 Hz, three-phase (3PH)
5.5 kW | 415 VAC, 50/60 Hz, three-phase (3PH) | 415 VAC, 50/60 Hz, three-phase (3PH) |
| Controller | Digital micro-chip controlled with LCD screen and fluid level display | Digital micro-chip controlled with LCD screen and fluid level display | Digital micro-chip controlled with LCD screen and fluid level display |
| Nominal Cooling Capacity | 14,028 kcal/h | | 16,700 kcal/h |
| Cooling Capacity Test Conditions | Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C | Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C | Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C |
| Compressor | 415 VAC, 50/60 Hz, 3PH, 10 A max
PS: 22.6 bar; TS: −35 to 50 °C
P.O.E. 160 PZ; R407C/R134a/R404A/R507 | 415 VAC, 50/60 Hz, 3PH, 10P
PS: 22.6 bar; TS: −35 to 50 °C
P.O.E. 160 PZ; R407C/R134a/R404A/R507 | 415 VAC, 50/60 Hz, 3PH, 15P
PS: 22.6 bar; TS: −35 to 50 °C
P.O.E. 160 PZ; R407C |
| Water Pump | 750 W; 415 VAC, 50/60 Hz, 3PH
3,450 rpm; max 3.5 bar; max liquid 70 °C
66 L/min | 750 W; 415 VAC, 50/60 Hz, 3PH
3,450 rpm; max 3.5 bar; max liquid 70 °C
66 L/min | 1 kW; 415 VAC, 50/60 Hz, 3PH
3,450 rpm; max 3.5 bar; max liquid 70 °C
117 L/min |
| Reservoir Capacity | 60 L | 180 L | 280 L |
| Recommended Coolant | Distilled water | Distilled water | Distilled water |
| Cooling Fan | | | |
| Temperature Accuracy | ±2 °C | ±2 °C | ±3 °C |
| Chilled Fluid Temperature Range | 5–35 °C | 5–35 °C | 5–35 °C |
| Recommended Inlet-to-Outlet Difference | 3–8 °C | 3–8 °C | 3–8 °C |
| Chiller Fluid Inlet & Outlet | 1.5-inch tri-clamp flange | 1.5-inch tri-clamp flange | 1.5-inch tri-clamp flange |
| Manifold Connections | Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves | Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves | Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves |
| Condenser Cooling Air Flow | 212,000 ft³/h | 212,000 ft³/h | 706,000 ft³/h |
| Chilled Fluid Flow | 60 L/min | 63 L/min | 95 L/min |
| Net / Shipping Weight | 200 / 260 kg | 245 / 305 kg | 295 / 360 kg |
| Unit / Shipping Dimensions (D × W × H) | 1,040 × 610 × 1,370 mm
1,220 × 660 × 1,520 mm | 1,270 × 710 × 1,520 mm
1,400 × 890 × 1,780 mm | 1,400 × 840 × 1,650 mm
1,650 × 1,020 × 1,910 mm |
| Safety Protection | Overcurrent; compressor delay start; water pump overload; built-in fuse; over-/under-voltage; abnormal operation; phase protection | Overcurrent; compressor delay start; water pump overload; built-in fuse; over-/under-voltage; abnormal operation; phase protection | Overcurrent; compressor delay start; water pump overload; built-in fuse; over-/under-voltage; abnormal operation; phase protection |
| Recommended Ambient Temperature | ≤35 °C | ≤35 °C | ≤35 °C |
| Compatible AI Induction Heaters | High: 20, 30 & 40 kW
Medium: 35 & 45 kW
Low: 35 & 45 kW | High: 30, 40 & 60 kW
Medium: 35, 45 & 70 kW
Low: 35, 45 & 70 kW | High: 40, 60 & 100 kW
Medium: 45, 70 & 110 kW
Low: 35, 70 & 110 kW |
| Compliance | CE compliant | CE compliant | CE compliant |
