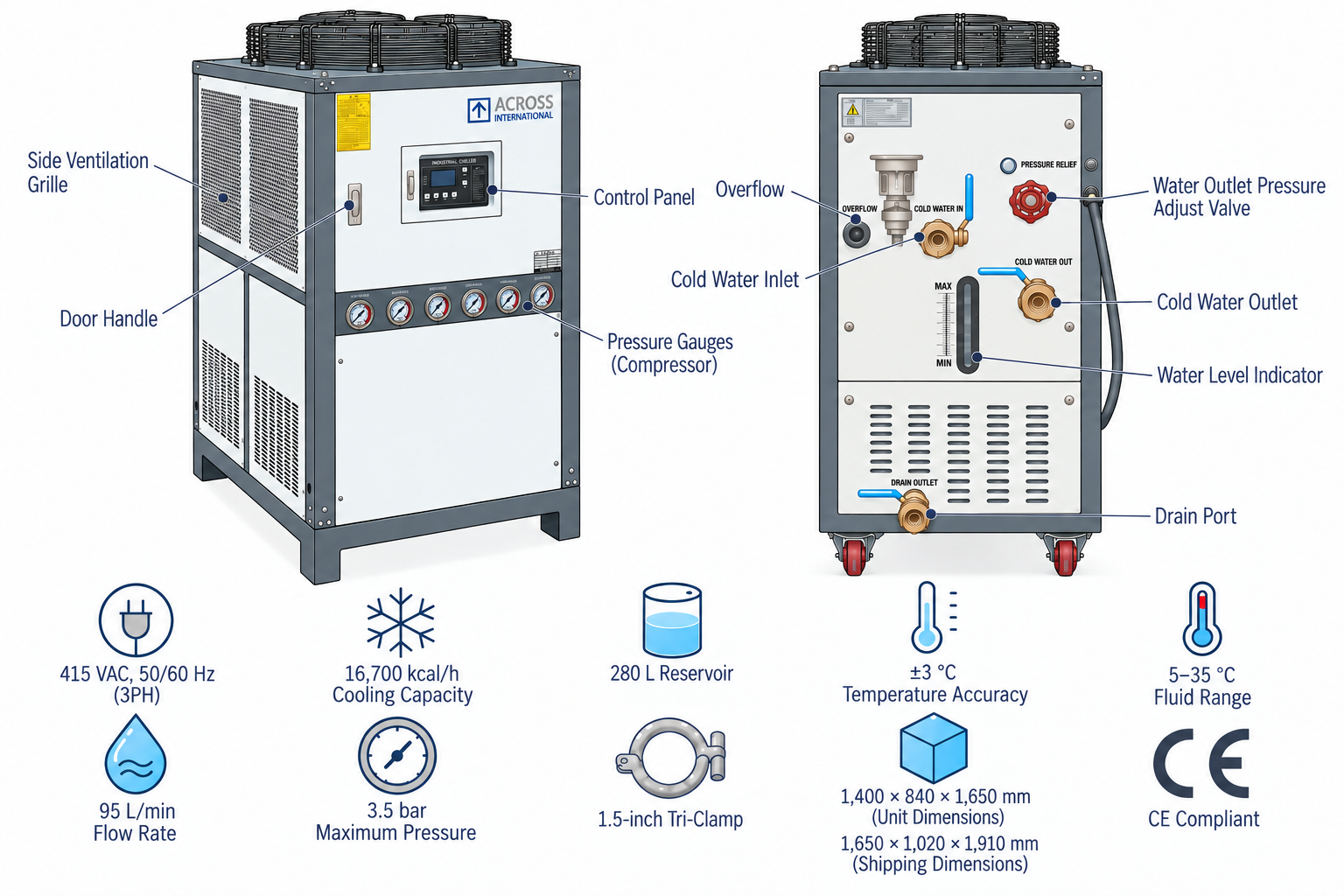

Ai 10°C to 25°C 117L/Min 280L Capacity Recirculating Chiller

SKU# WAC-15

A$ 23,490.00 A$ 23,490.00 23490.0 AUD

A$ 23,490.00

Excl. GST
Add to cart

Terms and Conditions

Please contact our friendly sales team for urgent orders.
Contact Us

SKU # : WAC-15

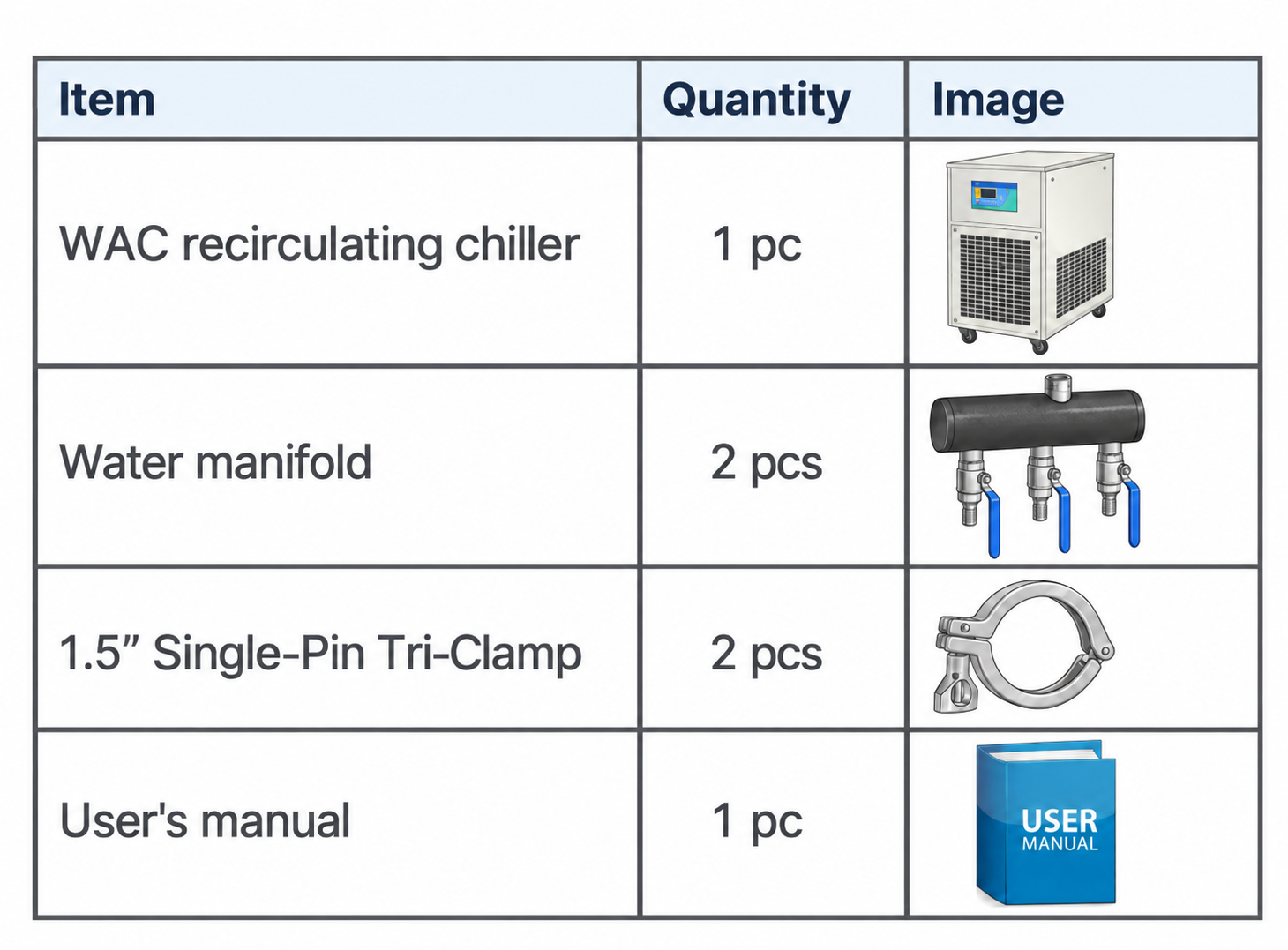

WAC-15 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.




WAC Series Recirculating Chiller — Specification Comparison

Specification WAC-1 WAC-2 WAC-4
Power Supply 220–240 VAC, 50 Hz, single-phase
Total input power: 1,460 W		 220–240 VAC, 50 Hz, single-phase (1PH)
Total input power: 2,360 W		 415 VAC, 50/60 Hz, three-phase (3PH)
4.36 kW

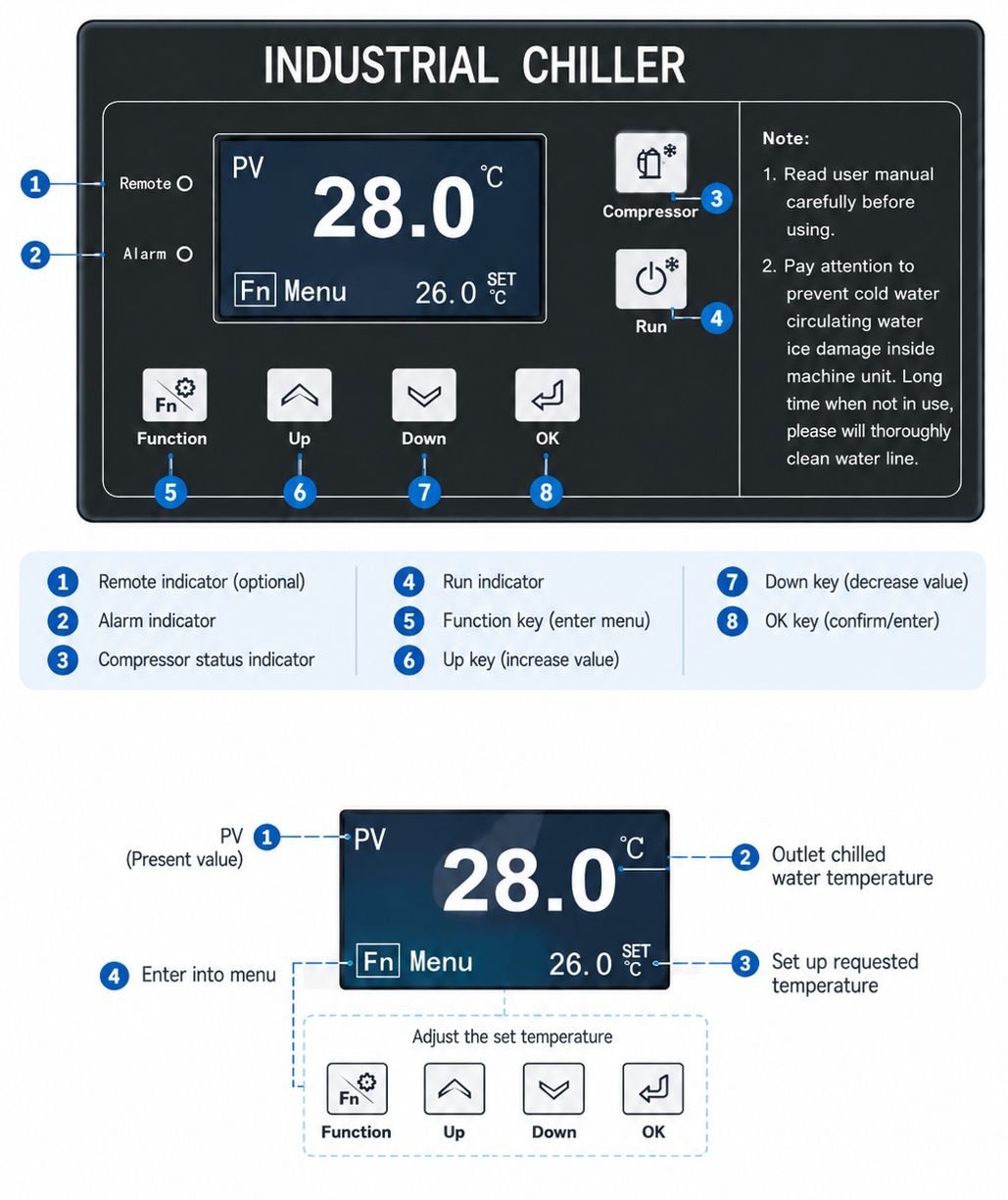

Controller     Digital micro-chip controlled with LCD screen and fluid level display
Nominal Cooling Capacity 2,415 W (2,076 kcal/h) 4,446 kcal/h 8,815 kcal/h
Cooling Capacity Test Conditions Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C		 Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C		 Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C
Compressor 820 W; 220–240 VAC, 50 Hz, single-phase
Model: 5PS102; R410A
Thermally protected; Qty: 1		 220–240 VAC, 50 Hz, 1PH
Model: 5KS225; R410A
Thermally protected; Qty: 1		 Danfoss (UL Listed), C-SBN303H8A
415 VAC, 50 Hz, 3PH
R407C; thermally protected; Qty: 1

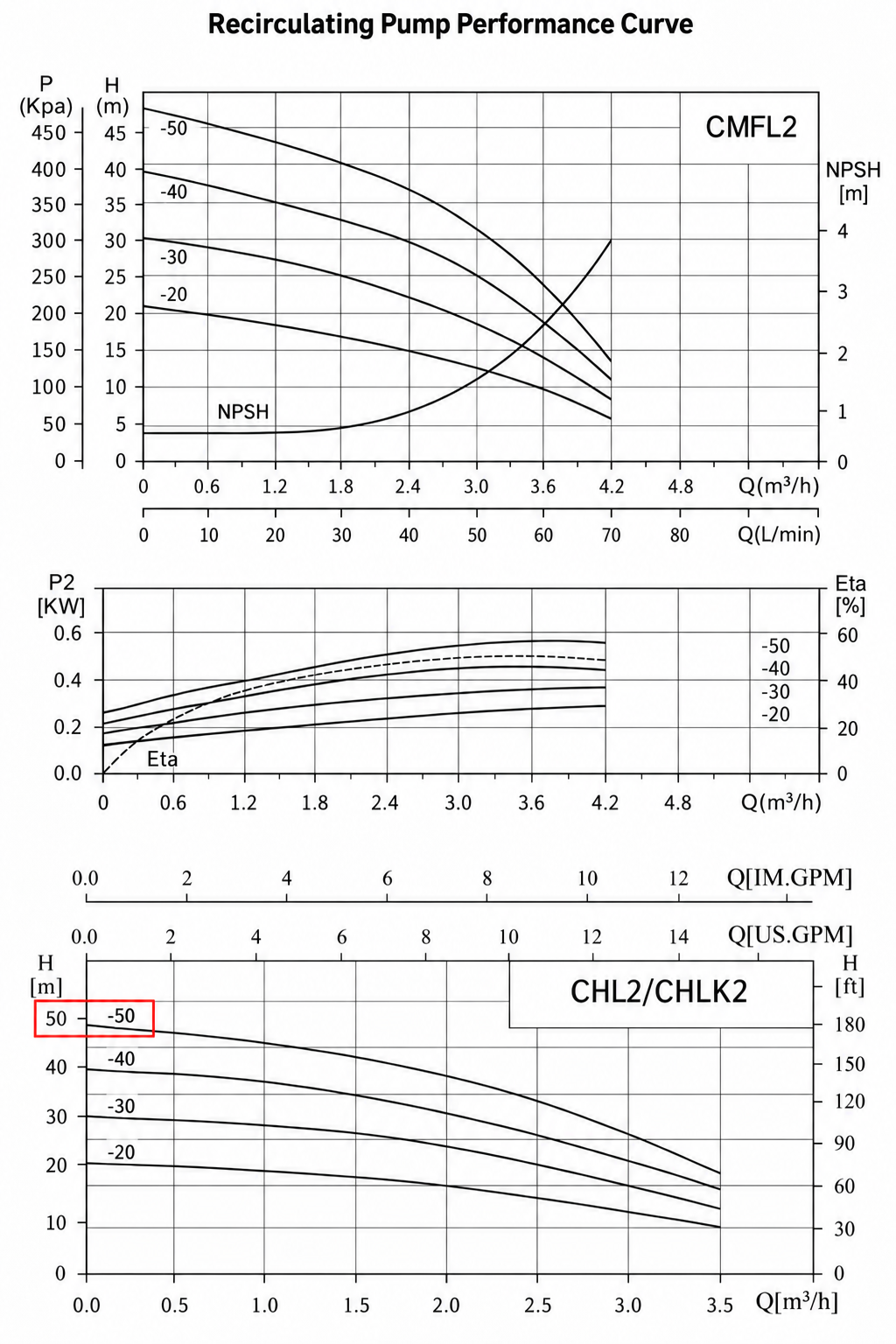

Water Pump CNP CHLF(T)2-40; 550 W; 220–240 VAC, 50 Hz, 1PH
1.10 A; 2,900 rpm; IP55
30 L/min; max 35 m / 3.5 bar; nominal 16 m / 1.6 bar		 CNP CHLF(T)2-50; 550 W; 220–240 VAC, 50 Hz, 1PH
1.10 A; 2,900 rpm; IP55
33 L/min; max 45 m / 3.5 bar; nominal 20 m		 CNP CHLF(T)2-50; 550 W; 415 VAC, 50 Hz, 3PH
1.10 A; 2,900 rpm; IP55; max liquid 70 °C
33 L/min; max 45 m / 3.5 bar; nominal 20 m
Reservoir Capacity 25 L 30 L 30 L
Recommended Coolant     Distilled water
Cooling Fan MAER YDWF68L35P4-300; 90 W; 220–240 VAC, 50 Hz, 1PH
0.56 A; 1,387 rpm; 4 µF; IP54
Airflow: 2,000 ft³/h; Qty: 1		 MAER YWF74L34P4-350; 150 W; 220–240 VAC, 50 Hz, 1PH
0.56 A; 1,387 rpm; 4 µF/450 V; IP54
Airflow: 2,000 ft³/h; Qty: 1		 MAER YWF74L34P4-400; 432 W; 415 VAC, 50 Hz, 3PH
0.92 A; 1,362 rpm; IP54
Airflow: 5,000 ft³/h; Qty: 2
Temperature Accuracy ±2 °C ±2 °C ±2 °C
Chilled Fluid Temperature Range 5–35 °C 5–35 °C 5–35 °C
Recommended Inlet-to-Outlet Difference 3–8 °C 3–8 °C 3–8 °C
Chiller Fluid Inlet & Outlet 1.5-inch tri-clamp flange 1.5-inch tri-clamp flange 1.5-inch tri-clamp flange
Manifold Connections Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves		 Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves		 Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves
Condenser Cooling Air Flow
Chilled Fluid Flow
Net / Shipping Weight 90 / 118 kg 90 / 130 kg 165 / 230 kg
Unit / Shipping Dimensions (D × W × H) 550 × 450 × 850 mm
680 × 600 × 1,100 mm		 600 × 500 × 1,020 mm
810 × 600 × 1,200 mm		 1,140 × 560 × 1,140 mm
1,360 × 660 × 1,440 mm
Safety Protection Overcurrent protection; compressor thermal overload protection Overcurrent protection; compressor thermal overload protection Overcurrent; compressor delay start; water pump overload; built-in fuse; over-/under-voltage; abnormal operation; phase protection
Recommended Ambient Temperature ≤35 °C ≤35 °C ≤35 °C
Compatible AI Induction Heaters High: 4 & 6.6 kW
Medium: 15 & 25 kW
Low: 15 kW		 High: 6.6, 10 & 20 kW
Medium: 15 & 25 kW
Low: 15 & 25 kW		 High: 10, 20 & 30 kW
Medium: 25 & 35 kW
Low: 25 & 35 kW
Compliance CE compliant CE compliant CE compliant
Specification WAC-6 WAC-10 WAC-15
Power Supply 415 VAC, 50/60 Hz, three-phase (3PH)
5.5 kW		 415 VAC, 50/60 Hz, three-phase (3PH) 415 VAC, 50/60 Hz, three-phase (3PH)
Controller Digital micro-chip controlled with LCD screen and fluid level display Digital micro-chip controlled with LCD screen and fluid level display Digital micro-chip controlled with LCD screen and fluid level display
Nominal Cooling Capacity 14,028 kcal/h   16,700 kcal/h
Cooling Capacity Test Conditions Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C		 Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C		 Inlet fluid: 12 °C
Outlet fluid: 7 °C
Inlet air: 30 °C
Outlet air: 35 °C
Compressor 415 VAC, 50/60 Hz, 3PH, 10 A max
PS: 22.6 bar; TS: −35 to 50 °C
P.O.E. 160 PZ; R407C/R134a/R404A/R507		 415 VAC, 50/60 Hz, 3PH, 10P
PS: 22.6 bar; TS: −35 to 50 °C
P.O.E. 160 PZ; R407C/R134a/R404A/R507		 415 VAC, 50/60 Hz, 3PH, 15P
PS: 22.6 bar; TS: −35 to 50 °C
P.O.E. 160 PZ; R407C
Water Pump 750 W; 415 VAC, 50/60 Hz, 3PH
3,450 rpm; max 3.5 bar; max liquid 70 °C
66 L/min		 750 W; 415 VAC, 50/60 Hz, 3PH
3,450 rpm; max 3.5 bar; max liquid 70 °C
66 L/min		 1 kW; 415 VAC, 50/60 Hz, 3PH
3,450 rpm; max 3.5 bar; max liquid 70 °C
117 L/min
Reservoir Capacity 60 L 180 L 280 L
Recommended Coolant Distilled water Distilled water Distilled water
Cooling Fan
Temperature Accuracy ±2 °C ±2 °C ±3 °C
Chilled Fluid Temperature Range 5–35 °C 5–35 °C 5–35 °C
Recommended Inlet-to-Outlet Difference 3–8 °C 3–8 °C 3–8 °C
Chiller Fluid Inlet & Outlet 1.5-inch tri-clamp flange 1.5-inch tri-clamp flange 1.5-inch tri-clamp flange
Manifold Connections Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves		 Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves		 Inlet: 1.5-inch tri-clamp flange
Outlets: 8 mm quick-connect fittings with ball valves
Condenser Cooling Air Flow 212,000 ft³/h 212,000 ft³/h 706,000 ft³/h
Chilled Fluid Flow 60 L/min 63 L/min 95 L/min
Net / Shipping Weight 200 / 260 kg 245 / 305 kg 295 / 360 kg
Unit / Shipping Dimensions (D × W × H) 1,040 × 610 × 1,370 mm
1,220 × 660 × 1,520 mm		 1,270 × 710 × 1,520 mm
1,400 × 890 × 1,780 mm		 1,400 × 840 × 1,650 mm
1,650 × 1,020 × 1,910 mm
Safety Protection Overcurrent; compressor delay start; water pump overload; built-in fuse; over-/under-voltage; abnormal operation; phase protection Overcurrent; compressor delay start; water pump overload; built-in fuse; over-/under-voltage; abnormal operation; phase protection Overcurrent; compressor delay start; water pump overload; built-in fuse; over-/under-voltage; abnormal operation; phase protection
Recommended Ambient Temperature ≤35 °C ≤35 °C ≤35 °C
Compatible AI Induction Heaters High: 20, 30 & 40 kW
Medium: 35 & 45 kW
Low: 35 & 45 kW		 High: 30, 40 & 60 kW
Medium: 35, 45 & 70 kW
Low: 35, 45 & 70 kW		 High: 40, 60 & 100 kW
Medium: 45, 70 & 110 kW
Low: 35, 70 & 110 kW
Compliance CE compliant CE compliant CE compliant
