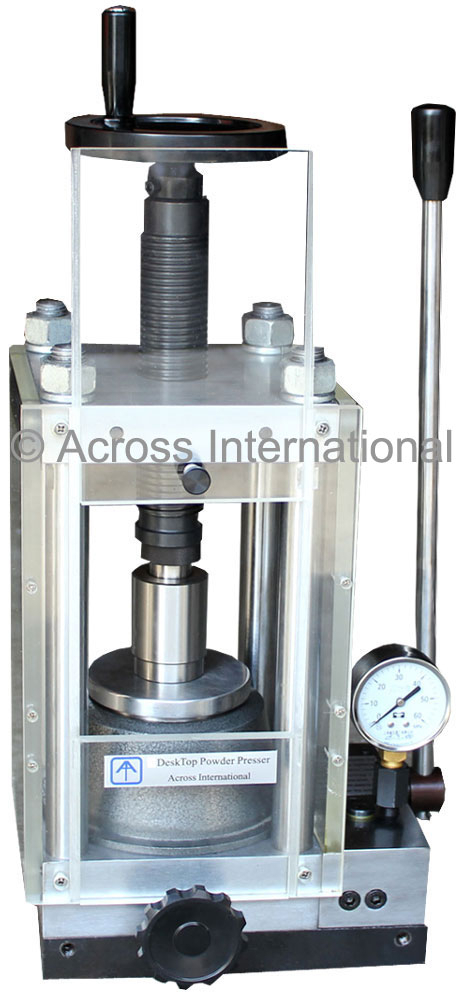

MP40 desktop manual pellet presses can press up to 40 metric tons. It is frequently used in materials and chemistry research laboratories to prepare compound samples. It has built in hydraulic pump with auto return function. Great for operation in a glove-box under oxidizing and inert gas atmosphere as well.
Caution: always wear protective goggles during operation!
Specifications
Maximum pressure | 40 metric tons (88,185 Lb) |
Maximum working space | 155x102x170mm (LxWxH) |
Largest compatible die set | Across International 102mm ID round die sets |
Hydraulic cylinder travel distance | 25mm |
Machine dimension | 330 x 200 x 560 mm (LxWxH) |
Machine weight | 55 kg |
Shipping weight | 68 kg |
Shipping dimension | 530 x 380 x 610 mm (LxWxH) |
Pressing dies | Various diameter dies available at extra cost |
Standard package
Part description
|
Quantity
|
MP40 pellet press | 1 pc |
Oil tin | 1 pc |
Hex L-key | 2 pcs |
Double open-end wrench | 3 pcs |
Sealing o-ring | 4 pc |
Operation manual | 1 pc |
