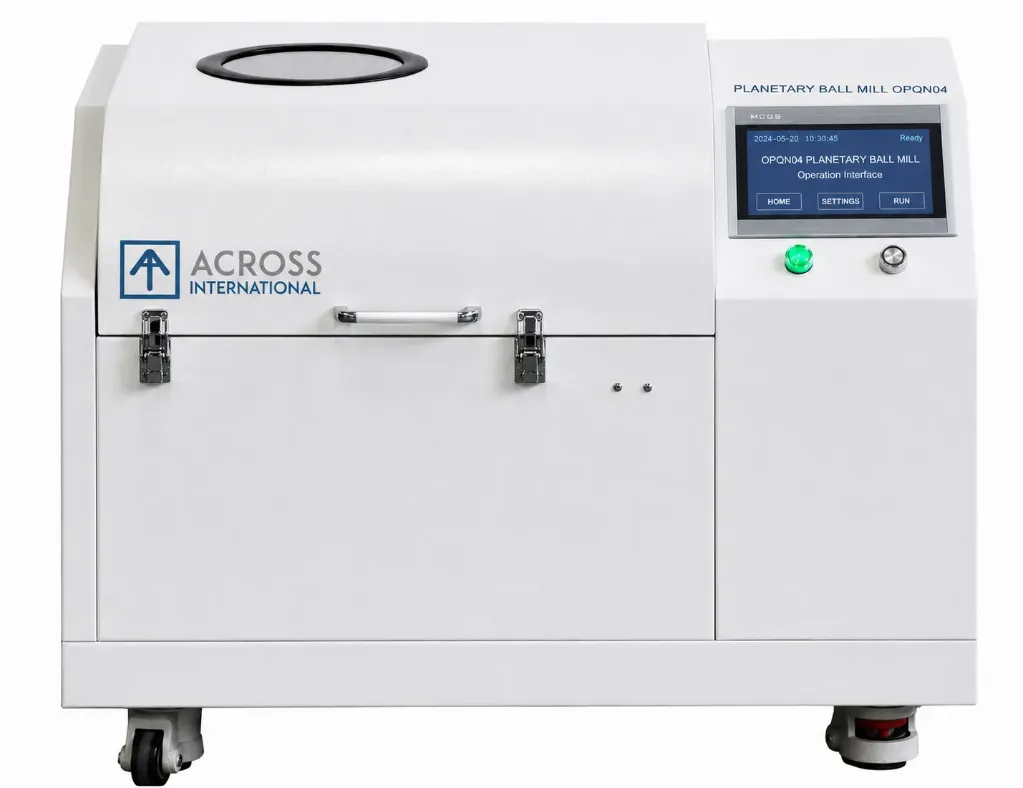

OPQN Series Omnidirectional Planetary Ball Mill

High-Energy Multi-Directional Milling for Advanced Material Processing

The OPQN2 Omnidirectional Planetary Ball Mill is a high-performance laboratory milling system designed for fine grinding, mixing, mechanical alloying, homogenisation and advanced material preparation.

Unlike conventional planetary ball mills, the omnidirectional design introduces additional multi-directional movement during operation. This enhanced motion promotes more effective interaction between the grinding balls, sample material and grinding jar, helping improve grinding uniformity and reduce material settling or dead zones inside the jar.

The OPQN supports dry and wet grinding, as well as milling under vacuum or controlled gas atmospheres when used with suitable vacuum milling jars or vacuum sleeves. It is ideal for universities, research laboratories and materials development applications requiring repeatable and highly efficient sample preparation.

Key Features

Omnidirectional Planetary Milling

The OPQN combines planetary rotation with additional multidirectional movement to provide intensive and uniform grinding. This makes the system particularly suitable for applications where conventional planetary milling may result in uneven material distribution.

Fine Grinding Down to 0.1 μm

Depending on the material and milling conditions, the OPQN can achieve a minimum particle size of approximately 0.1 μm, making it suitable for fine and ultrafine material preparation.

High-Speed Operation

The ball mill jars can operate at speeds of up to 530-600 rpm, while the main planetary plate operates at speeds of up to 265-300 rpm, with a disc-to-jar speed ratio of 1:2.

Two or Four Jars Simultaneously

The machine can operate with two or four grinding jars at the same time, allowing multiple samples to be processed simultaneously and improving laboratory productivity.

Dry & Wet Grinding

The OPQN supports both:

• Dry grinding
• Wet grinding

This flexibility allows the mill to accommodate a broad range of sample preparation and materials research applications.

Vacuum & Controlled Atmosphere Milling

For materials sensitive to oxygen, moisture or environmental contamination, milling can be performed under vacuum or controlled gas conditions using compatible stainless steel vacuum jars.

A stainless steel vacuum sleeve can also be used to enclose compatible standard grinding jars, including agate, zirconia and PTFE jars, allowing materials to be processed under vacuum or controlled atmosphere conditions while retaining the desired jar material.

Programmable Intelligent Control

Variable-frequency stepless speed control and programmable operation provide greater control over the milling process.

The intelligent control system supports:

• Adjustable milling speed
• Timed operation
• Automatic shutdown
• Automatic forward and reverse rotation
• Intermittent rotation

These functions allow complex milling cycles to be performed automatically and help improve process repeatability.

Up to 72 Hours Continuous Operation

Designed for demanding laboratory applications, the OPQN2 supports up to 72 hours of continuous operation at full load, making it suitable for extended grinding and mechanical alloying processes.

Safety Interlock Protection

The system incorporates limit-switch protection. Opening the lid interrupts operation and stops rotation, providing additional protection during laboratory use.

Typical Applications

The OPQN Omnidirectional Planetary Ball Mill is suitable for sample preparation and materials research in areas such as:

• Advanced materials
• Battery materials
• Ceramics
• Powder metallurgy
• Nanomaterials
• Electronic materials
• Mineral and geological samples
• Metallurgy
• Mechanical alloying
• Composite materials
• Chemical research
• University and research laboratory sample preparation

It can be used for grinding, mixing, homogenisation, dispersion and mechanical alloying of a wide variety of materials.

Grinding Jar Options

The OPQN can be configured with different grinding jar materials to suit different sample properties and contamination requirements.

Available or compatible jar materials may include:

• Stainless steel
• Zirconia
• Agate
• PTFE

Why Choose an Omnidirectional Planetary Ball Mill?

Traditional planetary ball mills rely primarily on the planetary movement of the grinding jars. For certain materials and operating conditions, powder can accumulate in particular areas of the jar during extended milling.

The OPQN omnidirectional design adds additional movement to the planetary milling process, continuously changing the orientation of the grinding jars. This helps redistribute the grinding media and sample throughout the milling process, promoting more uniform processing.

The system is particularly suitable for applications requiring:

Fine particle preparation • Intensive mixing • Homogenisation • Mechanical alloying • Extended milling • Controlled-atmosphere processing

OPQN2 Omnidirectional Planetary Ball Mill

High-energy grinding. Multi-directional movement. Flexible atmosphere control.

With programmable operation, speeds up to 530-600 rpm, particle sizes down to approximately 0.1 μm, multiple grinding jar materials and support for dry, wet, vacuum and controlled-atmosphere milling, the OPQN provides a versatile solution for demanding laboratory material preparation and research applications.
